Universal Deatschwerks Fuel Filter 100 Micron (Dash 10)

Universal Deatschwerks Fuel Filter 100 Micron

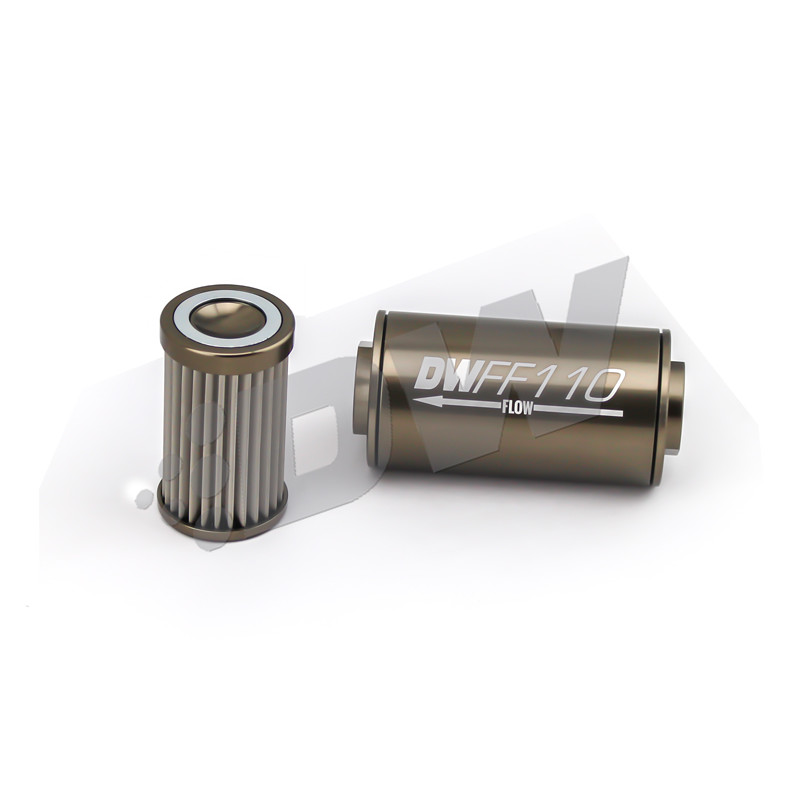

The Deatschwerks fuel filter is manufactured to a high level in the United States. It was designed with performance in mind. Supporting a maximum fuel rate of 1000 LPH, it is compatible with any type of fuel : unleaded, E85 ethanol, pure alcohol and other racing fuels.

It ensures filtration of 100 microns, with an internal stainless steel grid, with a very low pressure drop (less than 0.1 BAR / 1000 LPH).

Thanks to its dual-stage filtration (magneto-mechanical elements), this product provides excellent protection for injectors and fuel pumps: a 35mm neodymium magnet at the filter inlet traps ferrous contaminants with zero flow restrictions, whereas the internal stainless steel 100 micron mesh captures non-ferrous materials with a very low pressure drop.

It's compact design (11 cm long, 5 cm diameter) and quality anodised aluminium finish make it easy and pleasing to fit to your vehicle. It connects with x2 female -10 fittings.

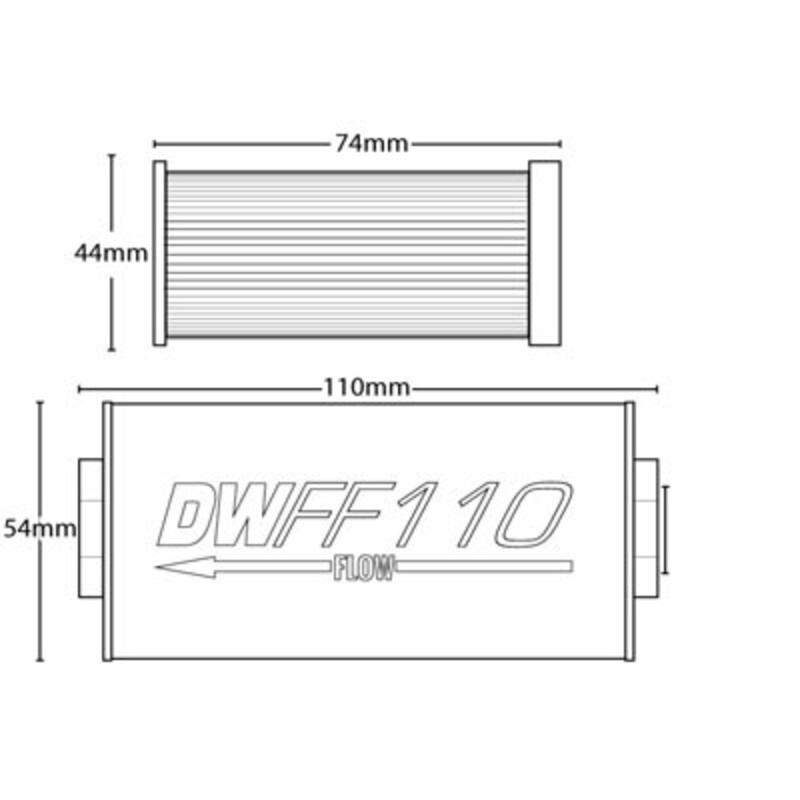

Dimensions

Pleaste note ! In most configurations, 100-micron filtration is not fine enough to ensure perfect protection of the injectors. Deatschwerks recommends using 10-micron filtration to improve injector life.
