AEM Universal 400 Lph Fuel Pump - Dash Fittings

AEM 400 Lph Fuel Pump Description

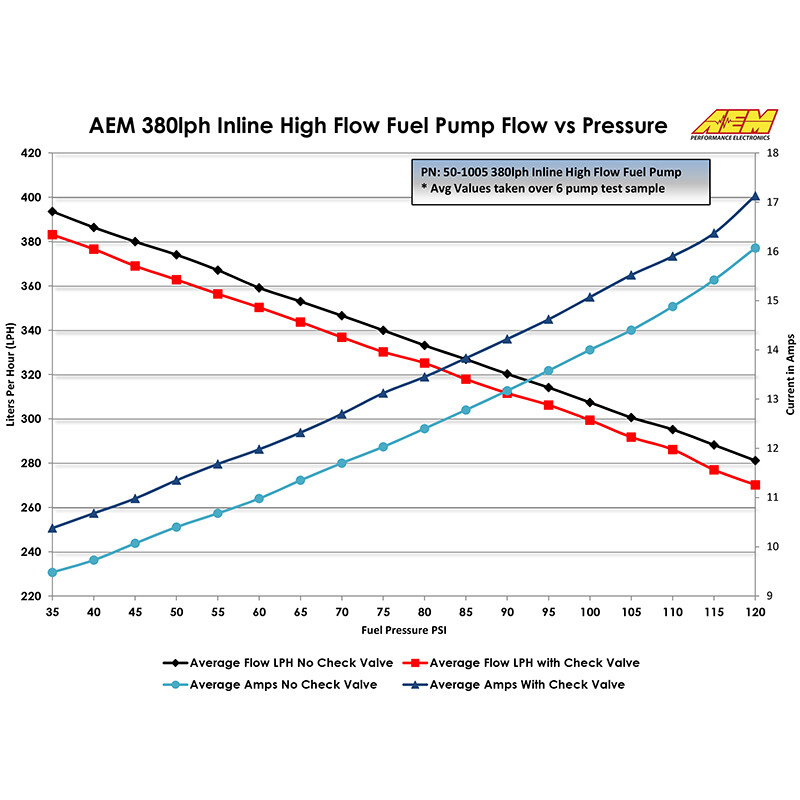

This pump has been designed by AEM for highly tuned vehicles that require a high fuel flow and pressure, as well as incredible reliability. Made in the USA, it features a "044" design and can be used in-tank or externally. Its flow can reach up to 400 lph at 3 bars, 340 lph at 5 bars, 270 lph at 8 bars (see chart above).

Optimized for gasoline, it can also withstand alcohol based fuels (such as E85, which may however reduce its overall lifespan).

The pump comes with -6 to -8 male AN discharge fitting with check valve, terminal nuts and instructions.

Technical Specifications

• Weight : 1015 g
• External diameter : 60 mm
• Inlet Fitting : Dash 10 Female
• Outlet Fitting : Dash 6 Female
• Operating power : 10 to 18V
• Amperage : from 9A (2.5 bars) to 17A (8 bars)
