KW V1 Coilovers for Audi A3 8L (96-03)

KW
KW V1 Coilovers for Audi A3 8L (96-03)
* generic picture
Some options are available below Please check them before adding to the cart

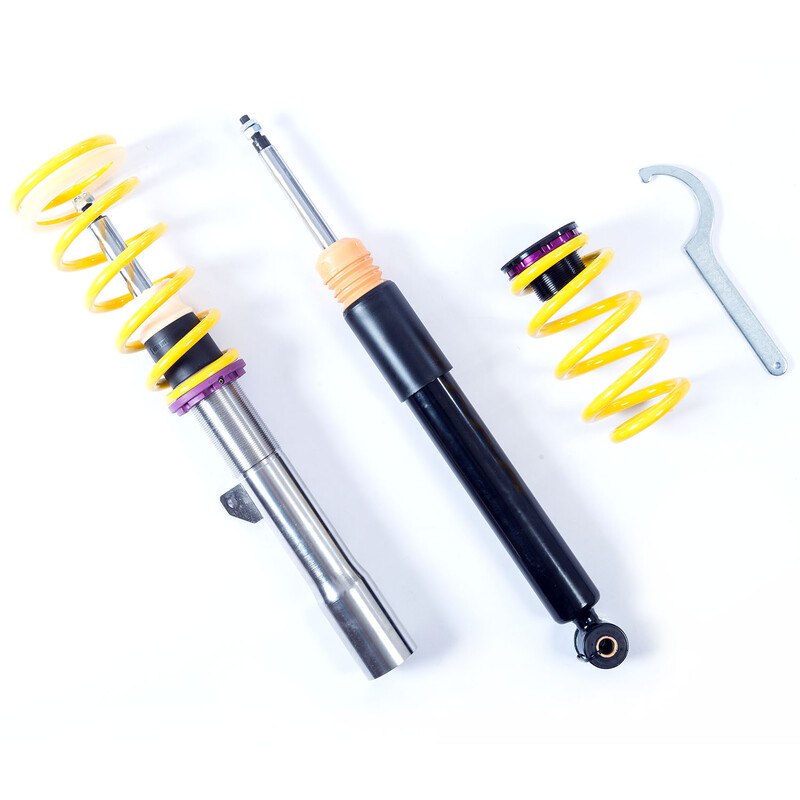

KW Street Performance V1

  • For street use
  • To suit Audi A3
  • Improved driving dynamics
  • Adjustable height
  • Fixed rebound and compression
  • Stainless steel construction
  • Supplied as a complete kit with 4 shock absorbers, 4 springs and assembly set
Ask a question about this product
  • Your choice *Please fill in this field.
  • Front Axle Max Weight : 1020 kg
    Rear Axle Max Weight : 1025 kg
    Front Lowering : 30-70 mm
    Rear Lowering : 30-70 mm
    Engine Output (kW) : 66-132
    Technical notes
    Front: threaded struts; Rear: shock absorbers + springs with rings for height adjustment (2)
    When using original tires, wheel offset spacers may be required (6)
    When lowering more than 40 mm, the stabilizer bar must be retrofitted. If version without Xenon headlight, use the KW conversion set part no. 685 50 000, if version with Xenon headlight, use the KW conversion set part no. 685 50 005 (7)
    For vehicles with a right drive shaft diameter of more than 42 mm, the maximum lowering tested by the TÜV (German technical inspection association) is reduced by 15 mm. For a more significant lowering, it is necessary to change the stabilizer bar (39)
  • Front Axle Max Weight : 1040 kg
    Rear Axle Max Weight : 1030 kg
    Front Lowering : 25-50 mm
    Rear Lowering : 25-50 mm
    Engine Output (kW) : 96-132
    Technical notes
    Front: threaded struts; Rear: shock absorbers + springs with rings for height adjustment (2)
    When using original tires, wheel offset spacers may be required (6)
    Damping adjustment using a graduated dial. Rebound is only easily adjustable if the end of the rod is accessible (this depends on the vehicle) (67)
    For rear axle camber adjustement we recommend the installation of the KW adjustable control arm kit part no. 68510061 (85)
€0.00

KW V1 Coilovers Specifications

With over 25 years' unique experience in motorsport, particularly endurance racing, German company KW has an excellent reputation in the field of sports and racing suspension. To manufacture its products, the company relies on cutting-edge technology and an ultra-advanced development and testing centre, and has introduced more than 16 different damping technologies to meet its slogan "The perfect suspension for every demand".

Street Performance products are designed for road use, giving the vehicle an individual look and improving driving dynamics. The KW V1 are the manufacturer's entry-level products, ideal for users who want to install a plug & play kit with a permanent vehicle-specific setup. They offer an optimum balance between sportiness and everyday driving pleasure.

KW coilovers are developed in intensive test cycles on the Nürburgring circuit and in-house on the KW 7-post hydraulic driving dynamics rig, which simulates the vehicle's suspension travel on tracks around the world.

The Street Performance range is height-adjustable, allowing maximum lowering within the vehicle's technical limits from 45 to 85 mm, depending on the application. KW V1 coilovers are not adjustable for rebound or compression, and comply with factory-set values.

Boasting outstanding build quality, these coilovers feature stainless steel struts for maximum corrosion resistance and long life. They also use trapezoidal threading with optimised friction for easy ride height adjustment, excellent protection against dust and higher load capacity than conventional coilovers. The polyamide composite adjustment spring seat with stainless steel insert also contributes to the product's high durability.

Clubsport range : Depending on the vehicle, KW can offer Clubsport (Track Performance) suspension kits specifically for track use. If you would like to order products from this range, please contact us for further information.

Important information

KW may produce kits for a given vehicle with different part numbers depending on the maximum axle weight. To find this out, please look on your vehicle's manufacturer's plate, which is generally located in the engine compartment or in the doorways.

Technical notes concerning the kit(s) shown are given above. It is necessary that you read these before placing your order to ensure compatibility with your vehicle.

Characteristics

Car Make Audi
Car Model Audi A3
Range V1
With over 25 years' unique experience in motorsport, particularly endurance racing, German company KW has an excellent reputation in the field of sports and racing suspension. To manufacture its products, the company relies on cutting-edge technology and an ultra-advanced development and testing centre, and has introduced more than 16 different damping technologies to meet its slogan "The perfect suspension for every demand".
