Turbo Timer HKS (Type X)

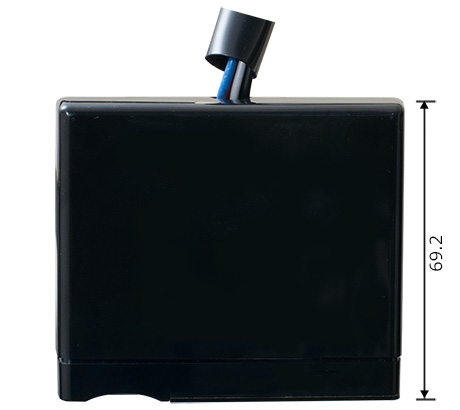

HKS Turbo Timer Type X Specification

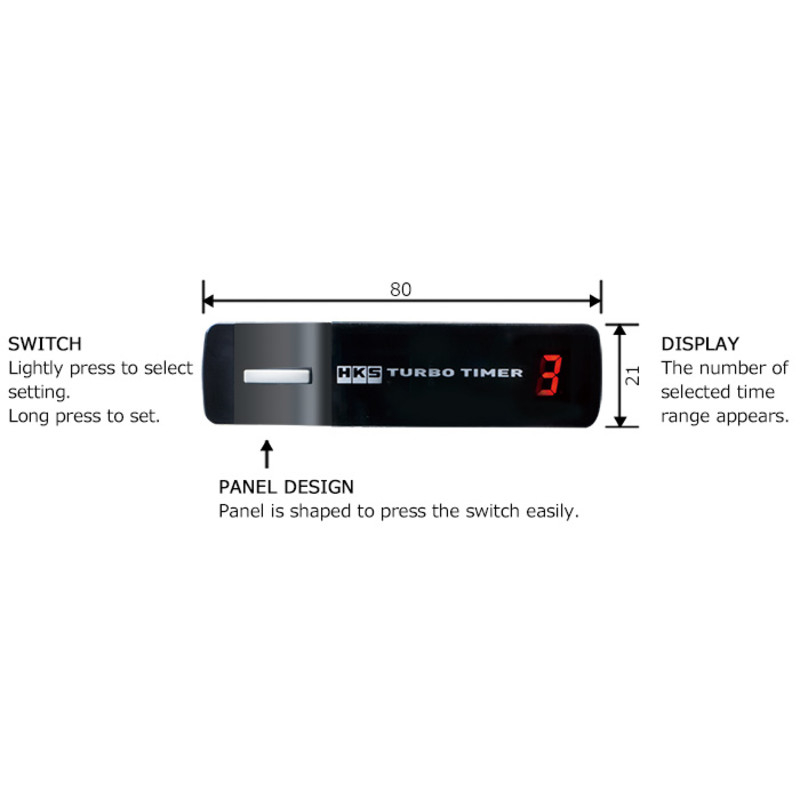

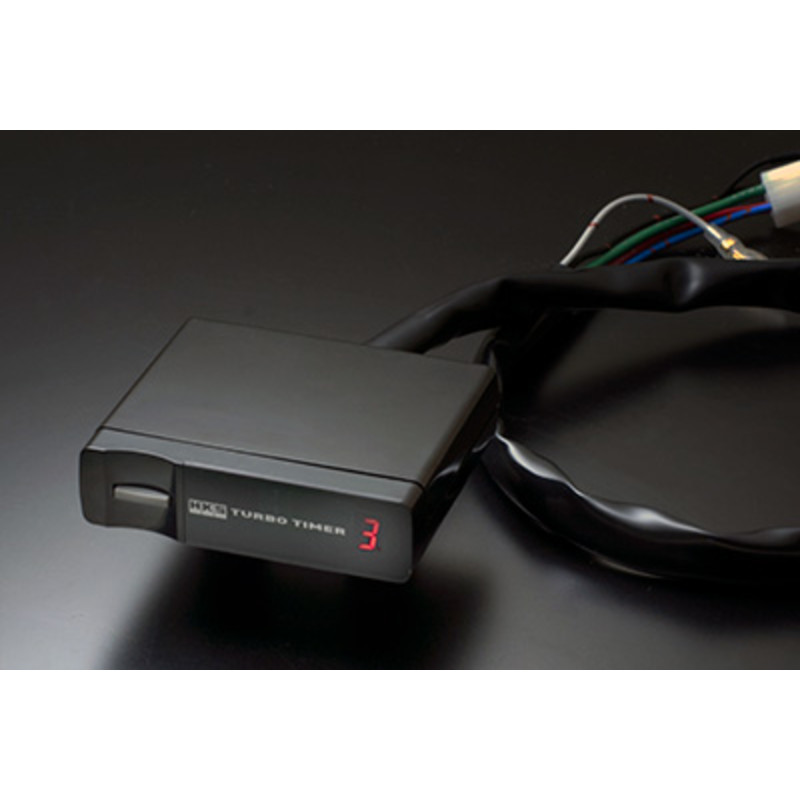

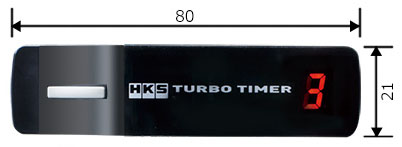

The "Type X" is compact and discrete, featuring a control unit with red back light display. It lets you set a cooling time of 1, 3, 5, 10 or 30 minutes. All necessary hardware is supplied, but for ease of installation we recommend a vehicle specific harness. Please contact us if your vehicle is not listed (please note, this "Type X" version is not compatible with newer cars with keyless "push button" start).

Why use a turbo timer?

The role of the timer is to increase turbo life. When oil is hot and flow is stopped, it can leave deposits in the system. The timer keeps the engine idling, which allows constant oil flow through the turbo whilst the system cools down.

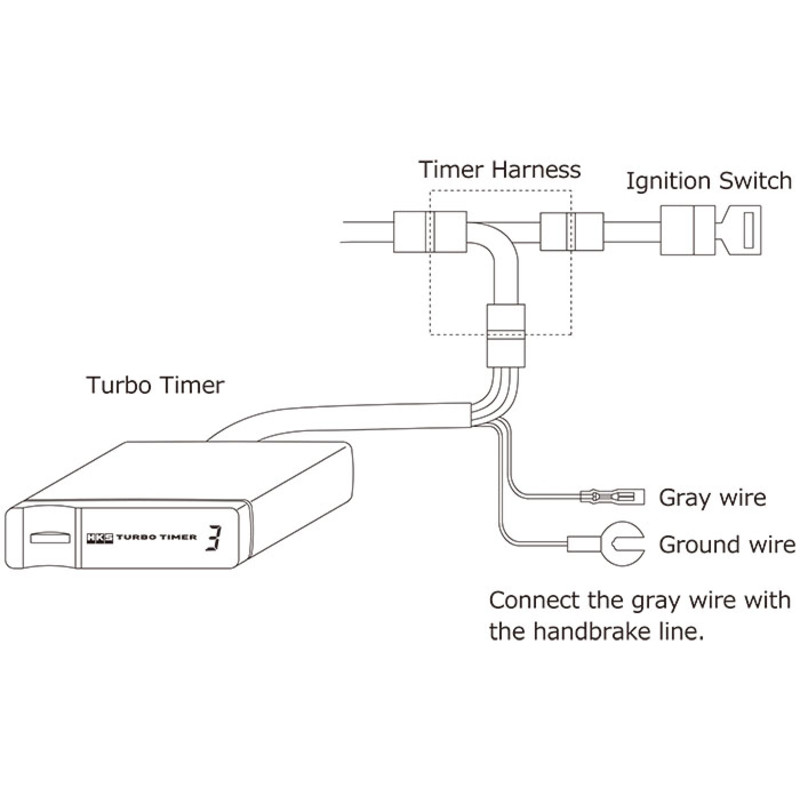

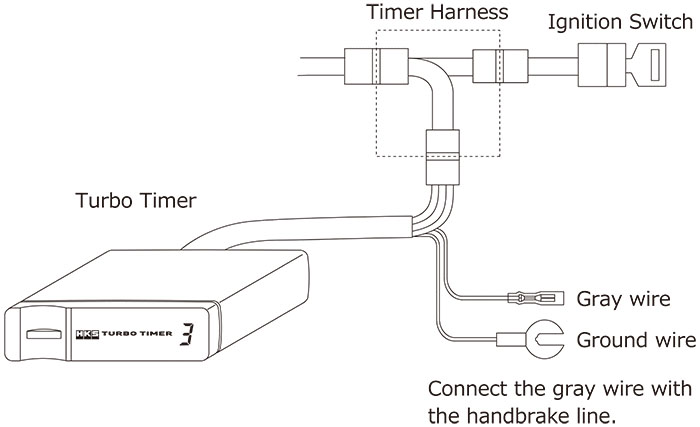

Installation diagram

Harness Turbo Timer HKS application list

HKS Turbo Timer Harness NT-1

• Nissan Cima FPY31 (VG30DET)
• Nissan 200SX S13, RS13 (CA18DET)
• Nissan 180SX RPS13 (SR20DET)
• Nissan Silvia PS13 (SR20DET)
• Nissan Skyline R32 GTS-T (RB20DET)
• Nissan Skyline R32 GT-R (RB26DETT)
• Nissan Cedric & Gloria PY31 (VG30ET)
• Nissan Cedric & Gloria Y31 (VG20ET, VG20DET)
• Nissan Cefiro A31 (RB20DET)
• Nissan Serena C23 (CD20T, CD20ET)
• Nissan Patrol WFGY61 (TB48DE)
• Nissan Sunny GTI-R, Pulsar RNN14 (SR20DET)
• Nissan Largo V(N)W30 (CD20ETi)
• Nissan Leopard F31 (VG20, VG30)
• Nissan Laurel C33 01/1989 to 12/1990 (RB20DET)

HKS Turbo Timer Harness N/FT-1

• Nissan Avenir SW10 (CD20T)
• Nissan Avenir Salut PNW10 (SR20DET)
• Nissan Cima Y33 (VQ30DET)
• Nissan Silvia S15 (SR20DET)
• Nissan 200SX S14, S14A (SR20DET)
• Nissan Skyline R34 GT-T (RB25DET)
• Nissan Skyline R33 GTS-T (RB25DET)
• Nissan Skyline R34 GT-R (RB26DETT)
• Nissan Skyline R33 GT-R (RB26DETT)
• Nissan Stagea NM35 (VQ25DET)
• Nissan Stagea WGC34, WGNC34 (RB25DET)
• Nissan Cedric & Gloria UY33 (RD28)
• Nissan Cedric & Gloria HY33 (VQ30DET)
• Nissan Terrano R50 (TD27ETi)
• Nissan Terrano D21 (TD27T)
• Nissan Figaro EK10 (MA10ET)
• Nissan 350Z Z33 (VQ35DE)
• Nissan 300ZX Z32 (VG30DETT)
• Nissan Presage V(N)U30 (YD25DDTi)
• Nissan Mistral R20 (TD27BT)
• Nissan Runessa NN30 (SR20DET)
• Nissan Leopard JHY33 (VQ30)
• Nissan Laurel C33 01/1991 to 12/1992 (RB20DET)
• Nissan Laurel C34 (RB25DET)
• Nissan Laurel C35 (RB25DET)
• Subaru Impreza GC8 11/1992 to 08/1997 (EJ20)
• Subaru Impreza Wagon GF8 11/1992 to 08/1997 (EJ20)
• Subaru Legacy Sedan BD5 08/1996 to 05/1998 (EJ20)
• Subaru Legacy Touring Wagon BG5 11/1993 to 05/1998

HKS Turbo Timer Harness FT-2

• Subaru Impreza GC8 09/1997 to 08/1998 (EJ20)
• Subaru Impreza Wagon GF8 09/1997 to 08/1998 (EJ20)
• Subaru Forester SG9 02/2004 (EJ25)
• Subaru Forester SG5 02/2002 (EJ20)
• Subaru Forester SF5 01/2002 (EJ20)
• Subaru Legacy Touring Wagon BH5 06/1998 to 04/2003 (EJ20)
• Subaru Legacy B4 BE5 12/1998 to 05/2003 (EJ20)

HKS Turbo Timer Harness FT-3

• Subaru Impreza GC8 09/1998 to 09/2000 (EJ20)
• Subaru Impreza GDA, GDB 10/2000 to 05/2007 (EJ20)
• Subaru Impreza Wagon GF8, GGA from 09/1998 (EJ20)

HKS Turbo Timer Harness FT-4

• Subaru Legacy Touring Wagon BP5 05/2003 to 04/2006 (EJ20)
• Subaru Legacy B4 BL5 05/2003 to 04/2006 (EJ20)

HKS Turbo Timer Harness FT-6

• Subaru Impreza GRB STI R205 from 01/2010 (EJ20)
• Subaru Impreza GH8 from 06/2007 (EJ20)
• Subaru Exiga YA5 from 06/2008 (EJ20)
• Subaru Forester SH5 from 12/2007 (EJ20)
• Subaru Legacy Touring Wagon BP5 from 04/2007 (EJ20)
• Subaru Legacy B4 BL5 05/2006 to 04/2007 (EJ20)

HKS Turbo Timer Harness MT-1

• Mitsubishi RVR N23W 09/1994 to 10/1997 with airbag (4G63)
• Mitsubishi RVR N28W 09/1994 to 10/1997 with airbag (4D68)
• Mitsubishi Eclipse D27A (4G63)
• Mitsubishi Galant & Eterna E3#A (4G63)
• Mitsubishi 3000 GT/GTO Z15A, Z16A (6G72)
• Mitsubishi Chariot N43 with airbag (4G63)
• Mitsubishi Chariot N38W, N48W à from 05/1991, with airbag (4D68)
• Mitsubishi Pajero V26, V46 (4M40)
• Mitsubishi Pajero V24, V44 (4D56)

HKS Turbo Timer Harness MT-4

• Mitsubishi Pajero Mini H56A (4A30)
• Mitsubishi Minica H31A, H36A (4A30)
• Mitsubishi Lancer GSR CD5A (4G93)
• Mitsubishi Lancer Evolution VI CP9A (4G63)
• Mitsubishi Lancer Evolution V CP9A (4G63)
• Mitsubishi Lancer Evolution IV CN9A (4G63)
• Mitsubishi Lancer Evolution III CD9A, CE9A (4G63)
• Mitsubishi Lancer Evolution II CD9A, CE9A (4G63)
• Mitsubishi Lancer Evolution I CD9A, CE9A (4G63)
• Mitsubishi Lancer Mirage CM5A (4G93)
• Mitsubishi Lancer Mirage CK8A, CM8A (4D68)
• Mitsubishi Lancer Mirage CD7A (4D65)
• Mitsubishi Lancer Mirage CB8A, CD8A (4D68)

HKS Turbo Timer Harness MT-6

• Nissan Otti H91W (3G83)
• Mitsubishi i HA1W (3B20)
• Mitsubishi RVR N73WG (4G63)
• Mitsubishi RVR N23W 09/1994 to 10/1997 with airbag (4G63)
• Mitsubishi RVR N28W 09/1994 to 10/1997 with airbag (4D68)
• Mitsubishi ekSport H81W (3S83)
• Mitsubishi Airtrek CU2W (4G63)
• Mitsubishi Eclipse D32A (4G63)
• Mitsubishi Galant & Eterna E84A, E74A (6A12)
• Mitsubishi Galant & Eterna E57A, E77A (4D68)
• Mitsubishi Galant Fortis CY4A (4B11)
• Mitsubishi Galant & Legnum EC5# (6A13)
• Mitsubishi Colt Z27AG (4G15)
• Mitsubishi Colt Plus Z27W (4G15)
• Mitsubishi Chariot N43W with airbag (4G63)
• Mitsubishi Chariot N38W, N48W from 09/1994, with airbag (4D68)
• Mitsubishi Challenger K97W (4M40)
• Mitsubishi Challenger K94W (4D56)
• Mitsubishi Delica Space Gear PD8, PE8, PF8 (4M40)
• Mitsubishi Delica Space Gear PA5, PB5, PC5, PD5 (4D56)
• Mitsubishi Toppo H82A (3G83)
• Mitsubishi Toppo BJ H46A, H41A (4A30)
• Mitsubishi Pajero V68W, V78W (4M41)
• Mitsubishi Pajero Mini H58A (4A30)
• Mitsubishi Lancer Evolution X CZ4A (4B11)
• Mitsubishi Lancer Evolution IX CT9A (4G63)
• Mitsubishi Lancer Evolution VIII CT9A (4G63)
• Mitsubishi Lancer Evolution VII CT9A (4G63)
• Mitsubishi Lancer Evolution Wagon CT9W (4G63)

HKS Turbo Timer Harness TT-1

• Toyota Camry & Vista CV20 (2C-T)
• Toyota Levin & Trueno AE92 (4A-GZE)
• Toyota Corolla NL30 (1N-T)
• Toyota Corolla NL3# (3E-T3)
• Toyota Cresta, Mark II & Chaser MX71 (M-TEU)
• Toyota Cresta, Mark II & Chaser GX71 (1G-GTE)
• Toyota Chaser, Mark II LX70 (2L-T)
• Toyota Corsa NL30 (1N-T)
• Toyota Corsa EL3# (3E-T3)
• Toyota Supra MK3 MA70 (7M-GTE)
• Toyota Supra MK3 GA70 05/1986 to 08/1990 (1G-GTE)
• Toyota Soarer GZ20 (1G-GTE)
• Toyota Soarer MZ20 (7M-GTE)
• Toyota Tercel NL30 (1N-T)
• Toyota Tercel EL3# (3E-T3)
• Toyota Townace, Master Ace & Liteace CR#G 11/1982 to 12/1991 (2C-T)
• Toyota Hilux Surf LN130G (2L-T)
• Toyota Land Cruiser Prado KZJ71 & KZJ78 de 05/1993 to 12/1994 (1KZ-TE)
• Toyota Land Cruiser Prado LJ71 & LJ78 (2L-T)

HKS Turbo Timer Harness TT-2

• Toyota Cresta, Mark II & Chaser GX81 08/1988 to 07/1990 (1G-GTE)
• Toyota Cresta, Mark II & Chaser LX80 08/1988 to 07/1990 (2L-T)

HKS Turbo Timer Harness TT-3

• Toyota MR-2 Turbo SW20 (3S-GTE)
• Toyota Carina CT19# (2C-T)
• Toyota Cresta, Mark II & Chaser JZX81 (1JZ-GTE)
• Toyota Cresta, Mark II & Chaser GX81 08/1990 to 09/1992 (1G-GTE)
• Toyota Cresta, Mark II & Chaser LX80 08/1990 to 09/1992 (2L-T)
• Toyota Supra MK3 JZA70 (1JZ-GTE)
• Toyota Supra MK3 GA70 09/1990 to 04/1993 (1G-GTE)
• Toyota Celica GT-Four ST185 (3S-GTE)
• Toyota Townace & Liteace CR#G (3C-T)
• Toyota Townace, Master Ace & Liteace CR#G 01/1992 to 09/1993 (2C-T)
• Toyota Hiace KZH1## (1KZ-TE)
• Toyota Hilux Surf KZN13# (1KZ-TE)
• Toyota Hilux Surf LN130# (2L-TE)
• Toyota Land Cruiser Prado KZJ71 & KZJ78 01/1995 to 05/1996 (1KZ-TE)

HKS Turbo Timer Harness TT-4

• Toyota Levin & Trueno AE101 (4A-GZE)
• Toyota Corolla NL40 (1N-T)
• Toyota Cresta, Mark II & Chaser JZX90 10/1992 to 08/1994 (1JZ-GTE)
• Toyota Cresta, Mark II & Chaser LX90 10/1992 to 08/1994 (2L-TE)
• Toyota Grand Hiace KCH#W (1KZ-TE)
• Toyota Granvia KCH10W (1KZ-TE)
• Toyota Corsa NL40 (1N-T)
• Toyota Supra MK4 JZA80 05/1993 to 03/1996 (2JZ-GTE)
• Toyota Starlet EP82 (4E-FTE)
• Toyota Celica GT-Four ST205 (3S-GTE)
• Toyota Tercel NL40 (1N-T)
• Toyota Estima CXR#G (3C-T)
• Toyota Regias KCH4A (1KZ-TE)

HKS Turbo Timer Harness TT-5

• Toyota Soarer JZZ30 (1JZ-GTE)

HKS Turbo Timer Harness TT-6

• Toyota Crown LS141 (2L-THE)
• Toyota Land Cruiser HDJ81V (1HD-T)

HKS Turbo Timer Harness TT-7

• Toyota Aristo JZS161 (2JZ-GTE)
• Toyota Altezza SXE10 (3S-GE)
• Toyota Carina CT21# (2C-T)
• Toyota Caldina ST215 (3S-GTE)
• Toyota Caldina ST246 (3S-GTE)
• Toyota Levin & Trueno AE111 (4A-GE)
• Toyota Corolla NL50 (1N-T)
• Toyota Crown LS151 (2L-TE)
• Toyota Cresta, Mark II & Chaser JZX90 09/1994 to 08/1996 (1JZ-GTE)
• Toyota Cresta, Mark II & Chaser JZX100 (1JZ-GTE)
• Toyota Cresta, Mark II & Chaser LX100 (2L-TE)
• Toyota Cresta, Mark II & Chaser LX90 09/1994 to 08/1996 (2L-TE)
• Toyota Corsa NL50 (1N-T)
• Toyota Supra MK4 JZA80 from 04/1996 (2JZ-GTE)
• Toyota Starlet EP91 (4E-FTE)
• Toyota Tercel NL50 (1N-T)
• Toyota Noah CR40G & 50G 10/1996 to 11/1998 (3C-T)
• Toyota Hiace KDH2## (1KD-FTV & 2KD-FTV)
• Toyota Hilux Surf GRN215W (1GR-FE)
• Toyota Hilux Surf KZN185# (1KZ-TE)
• Toyota Harrier MCU35W (1MZ-FE)
• Toyota Premio CT21# (2C-T)
• Toyota Land Cruiser FZJ100 (1FZ-FE)
• Toyota Land Cruiser Prado KZJ9# (1KZ-TE)

HKS Turbo Timer Harness TT-8

• Toyota Vitz & Yaris SCP10 (1ZS-FE)
• Toyota Noah CR40G & 50G from 11/1998 (3C-T)
• Toyota Cresta, Mark II & Chaser JZX110 (1JZ-GTE)
• Nissan Moco TA-MG21S (K6A)
• Suzuki Alto Lapin SS HE21S (K6A)
• Suzuki MR Wagon MF21S (K6A)
• Daihatsu Tanto & Tanto Custom L350S, L360S (EF-DET)
• Daihatsu Boon X4 M312S (KJ-VET)
• Daihatsu Move L150S, L160S (EF-DET)

HKS Turbo Timer Harness ST-2

• Mazda AZ-1 PG6SA (F6A)
• Mazda Carol AA6PA (F6A)
• Mazda Proceed Levante TD31W (RF)
• Suzuki Alto Works C#21S, C#22S (FA6)
• Suzuki Alto Works CL11V, CM11V (F5B)
• Suzuki Escudo TD31W (RF)
• Suzuki Cappuccino EA#1R (F6A, K6A)
• Suzuki Cara PG6SS (F6A)
• Suzuki Kei HN22S avec VST (K6A)
• Suzuki Jimny JA22W, JA12W (F6A, K6A)

HKS Turbo Timer Harness ST-4

• Mazda AZ Wagon CY21S, CZ21S (F6A)
• Suzuki Alto Works HA11S, HB11S, HA21S, HB21S (F6A, K6A)
• Suzuki Cervo Mode C#22S, C#32S (F6A, F6B)
• Suzuki Wagon R CT51S, CV51S (K6A)
• Suzuki Wagon R CT21S, CV21S (F6A)
• Suzuki Wagon R Wide MA61S, MB61S (K10A)

HKS Turbo Timer Harness ST-5

• Nissan Moco MG22S (K6A turbo)
• Suzuki Every Wagon DA64W (K6A)
• Suzuki MR Wagon MF22S (K6A)
• Suzuki Jimny JB23W (K6A)
• Suzuki Cervo HG21S (K6A)
• Suzuki Wagon R MH21S (K6A)
• Suzuki Wagon R Stingray MH22S (K6A)

HKS Turbo Timer Harness D/ST-1

• Suzuki Cultus AA41S, AA43S (G10T)
• Suzuki Jimny JA11# (F6A)

HKS Turbo Timer Harness DT-2

• Daihatsu Atrai Wagon S220G, S230G (EF-DET)
• Daihatsu Copen L880K (JB-DET)
• Daihatsu Terios Kid J111G, J131G (EF-DET)
• Daihatsu Naked L750S (EF-DET)
• Daihatsu Mira L5#2S (JB-JL)
• Daihatsu Mira L500S (EF-JL)
• Daihatsu Mira L200#, L220S (EF-JL/XL)
• Daihatsu Mira Gino L700S (EF-DET)
• Daihatsu Move L902S, L912S (JB-DET)
• Daihatsu Move L600S, L610S (EF-RL)
• Daihatsu Move L602S (JB-JL)
• Daihatsu YRV M201G (K3-VET)

HKS Turbo Timer Harness ZT-2

• Mazda RX-7 FD3S (13B-REW)
• Mazda AZ Wagon MD21S (K6A)
• Mazda Familia, 323 BHA7 (4EE1-T)
• Mazda Bongo Friendy SGLW, LR, L3, L5 (WL-T)
• Mazdaspeed MX-5
• Suzuki Alto Works HA12S, HA22S (F6A, K6A)
• Suzuki Kei Works HN22S (K6A)
• Suzuki Kei HN21S (K6A)
• Suzuki Wagon R MC22S (K6A)
• Suzuki Wagon R MC11S, MC21S (F6A, K6A)
• Suzuki Wagon R Plus MA63S (K10A)

Nissan S14 and S14a - caution! :

For reasons we're unaware off, there are 2 types of plugs used by Nissan S14 and S14A. Please refer to the image below to determine which harness you require, NT1 or N/FT1.
