AEM X-Series Wideband UEGO OBDII AFR Gauge

AEM Digital Wideband UEGO OBDII AFR Gauge

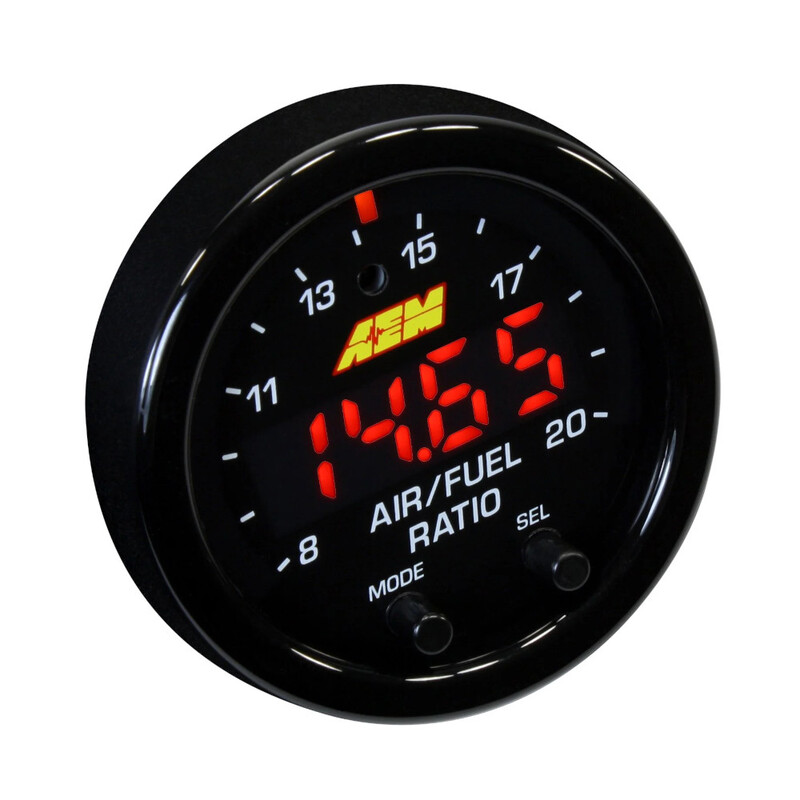

The World-famous AEM Wideband O2 air/fuel ratio UEGO gauge features a digital LED display and sweeping LED 'needle' that changes colors as AFR changes from rich to lean. A 52mm (2-1/16") gauge housing ensures that it will fit in most gauge pods and can be remotely mounted virtually anywhere. All AEM digital gauges feature a 0-5v analog output for use with data loggers and almost any engine management system. Each gauge comes with black and silver bezels and black and white faceplates for multiple color combinations and a custom look (a black Lambda faceplate and black and white Air/Fuel Ratio faceplates).

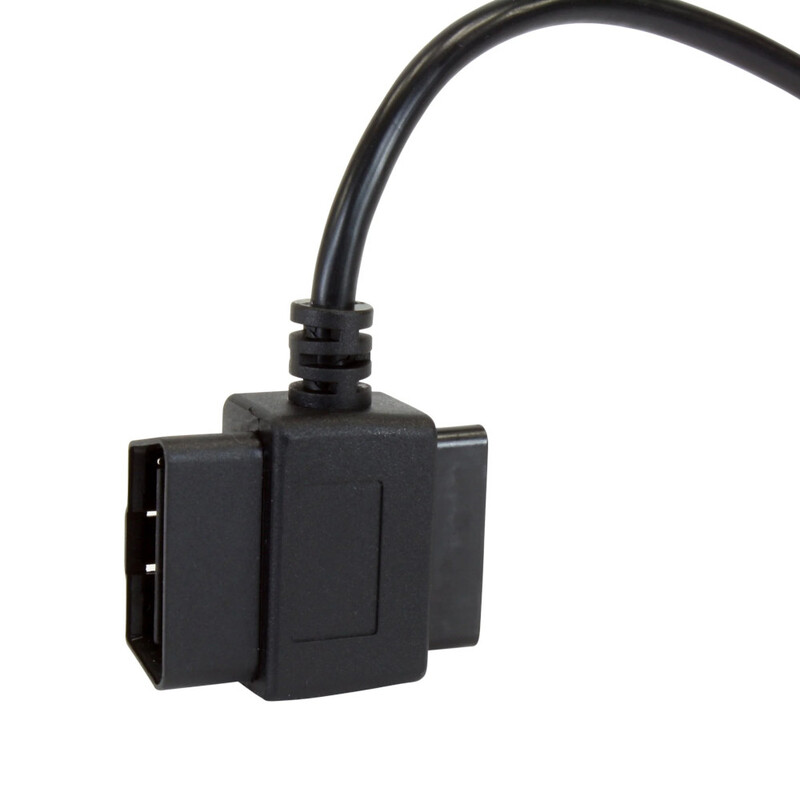

This X-Series OBDII AFR gauge enables tuners using piggyback modules or open source software to check AFR via the CAN-bus stream that is output by the factory ECU, and to provide the most accurate, safest and powerful tune. It is compatible with DiabloSport in Tune 3, Trinity 2, EFILive, HPTuners and DashDaq software. The gauge includes an OBDII pass-through connector that replaces the traditional AEMnet port fitted into the X-Series 30-0300 gauge.

AEM co-developed the new sensor with global automotive supplier FAE, culminating in a new sensor design that has a faster response time than the Bosch 4.9 LSU and is less prone to failure in high performance vehicles. The OBDII output can be used in conjunction with CAN-based OBDII ports (found in 2008 and newer vehicles) to replace (or supplement) a standard O2 sensor with the sensor for more accurate mixture control. An EFILive Flashscan V2 output is also available via the OBDII connection.

Please note that as the manufacturer cannot control the conditions of installation and use of the sensors, they are not guaranteed.

Kit Contents

• 52mm AEM gauge

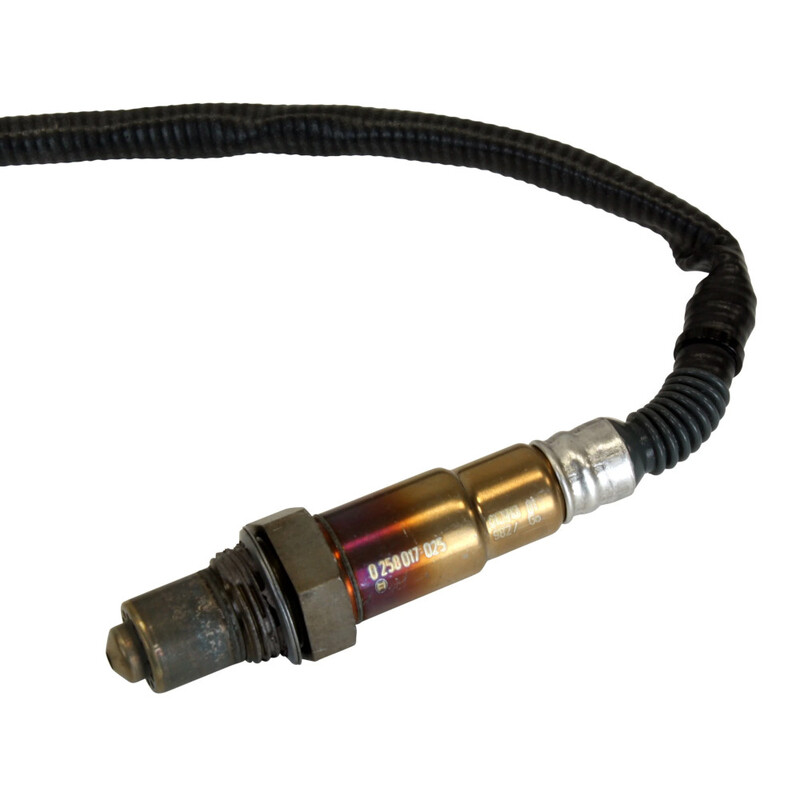

• FAE 30-2404 wideband sensor and weld-in bung
• 52mm (2-1/16") gauge housing
• Wiring harness and cabling
• Installation instructions

Fuels compatibility :

• Gauge Display/0-5V Output
• Gasoline
• E85
• Ethanol
• Methanol
• Lambda values from 0.55 to 2

Whatever the fuel you will be running, the AFR values will always be displayed in "gasoline" mode (Lambda 1 = 14.7).
