Wisefab V3 Lock Kit for Nissan 200SX S14, S14A & Silvia S15
.webp)
.webp)
For Extreme Steering Angle !
- V3 Wisefab kit for Nissan 200SX S14, S14A & Silvia S15
- Developed with Aurimas "Odi" Bakchis (FD driver)
- 65° steering angle
- 60 mm raised roll centre
- Adjustable Ackermann effect in just a few minutes
- Adjustable camber from top-mount
- Attention : Use only with BMW E36/E46 steering rack
Ask a question about this productWisefab V3 Lock Kit for Nissan 200SX S14, S14A & Silvia S15
The Wisefab "Odi Edition" V3 Nissan S-Chassis lock kit moves the steering rack to the front of the subframe, improving vehicle control from medium to full-lock while eliminating steering bind at maximum angle. It ensures a consistent steering feel across the entire range, providing a more usable and predictable lock. Ackermann and bump-steer have been reengineered to deliver a smoother and more precise driving experience. Additionally, a quick caster adjustment feature on the lower control arm makes caster modifications fast and straightforward. The "Odi Edition" kit stands as the ultimate angle kit solution for the S-Chassis.

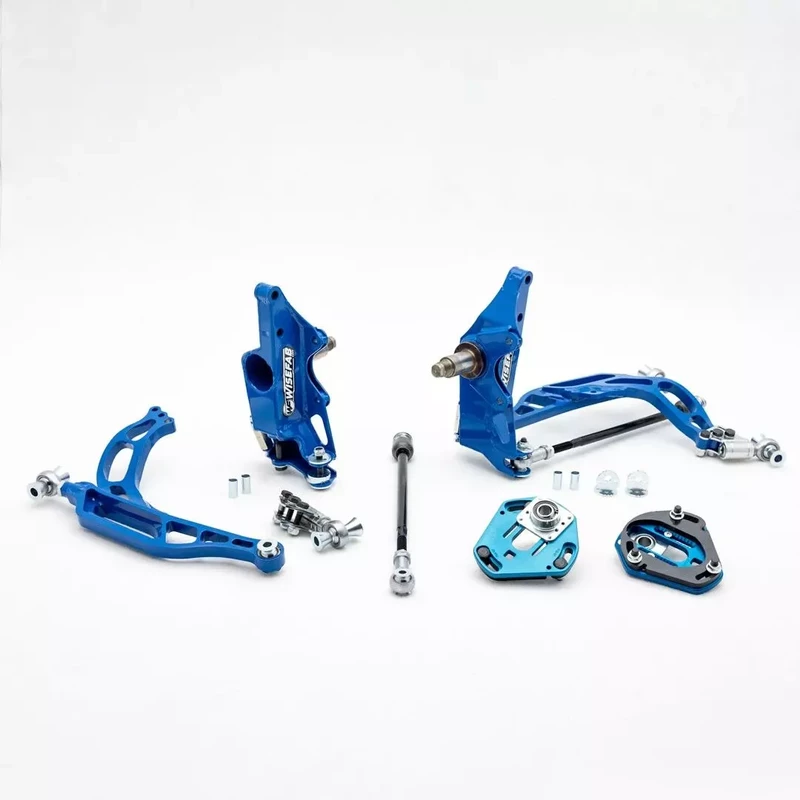

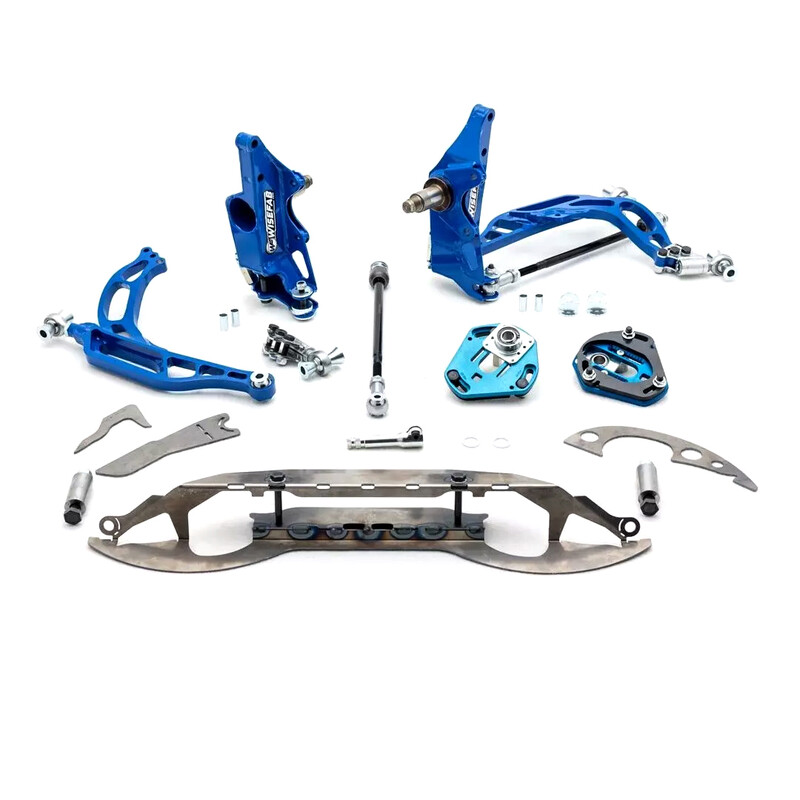

Kit contents :
- Adjustable coilover upper mounts, Formula Drift compliance
- Knuckles with hardware
- Lower control arms
- Assembeled tie rods
- Rack relocating kit
- Rack installation guide
- Installation guide
Please note : This kit is designed for use only with BMW E36/E46 steering rack.
- Wisefab recommend a wheel diameter that doesn't exceed 635 mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 for example)
- Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
- Minimum wheel diameter of 17" with an 8" width and an ET35 (or near spec like 7" ET45 or 9" ET25)
- Adjust camber from -4 +/-0,5°
- Adjust caster from 3,5 +/-0,5°
- Toe in/out: If Ackermann is 0 or negative then toe is 2mm out. If Ackermann is positive then toe is 0
Wisefab V3 Lock Kit for Nissan 200SX S14, S14A & Silvia S15 video :
Characteristics
| Car Make | Nissan |
|---|---|
| Car Model | Nissan 200SX S14 / S14A |
| Manufacturer | Wisefab |
Wisefab was founded by a collective of drifters in Estonia, who noticed that there were no lock kits available for popular European models, especially BMWs. Following the success of their first kits for E30 and E36 models, Wisefab's engineers quickly expanded their range with kits for the E46 and E90 models, as well as other manufacturers like Nissan (S13, S14, S15, 350Z, 370Z, R33), Toyota (Supra, Soarer, GT86), Mazda (RX-7, RX-8)...
