Wisefab Lock Kit for Toyota Chaser, Cresta, Mark II JZX90 & JZX100

Wisefab Lock Kit for Toyota JZX90 & JZX100

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is "FD Legal" and allows in particular to relocate the steering rack according to worldwide competition standards.

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

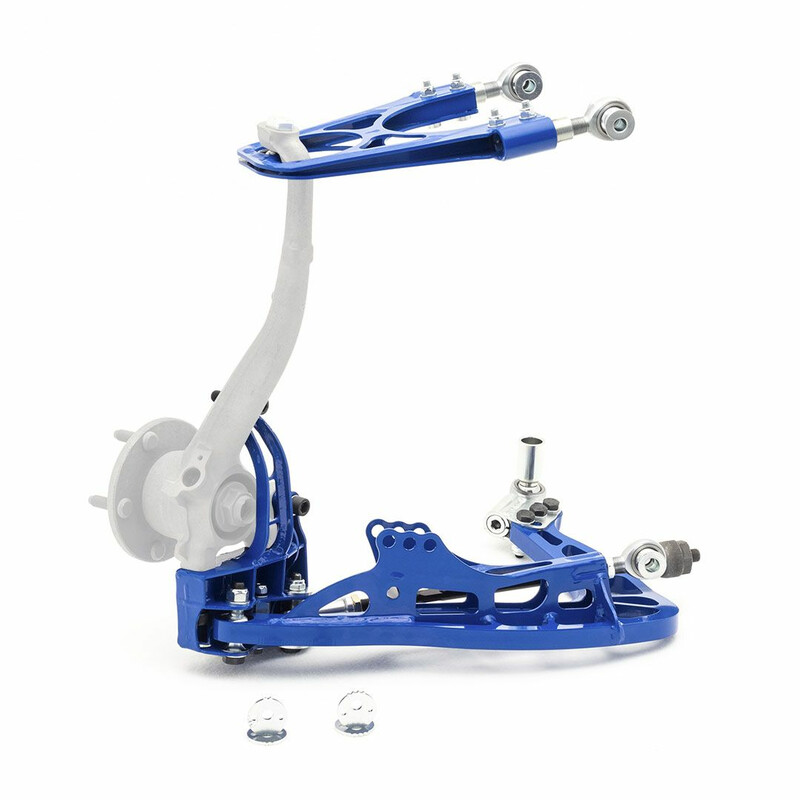

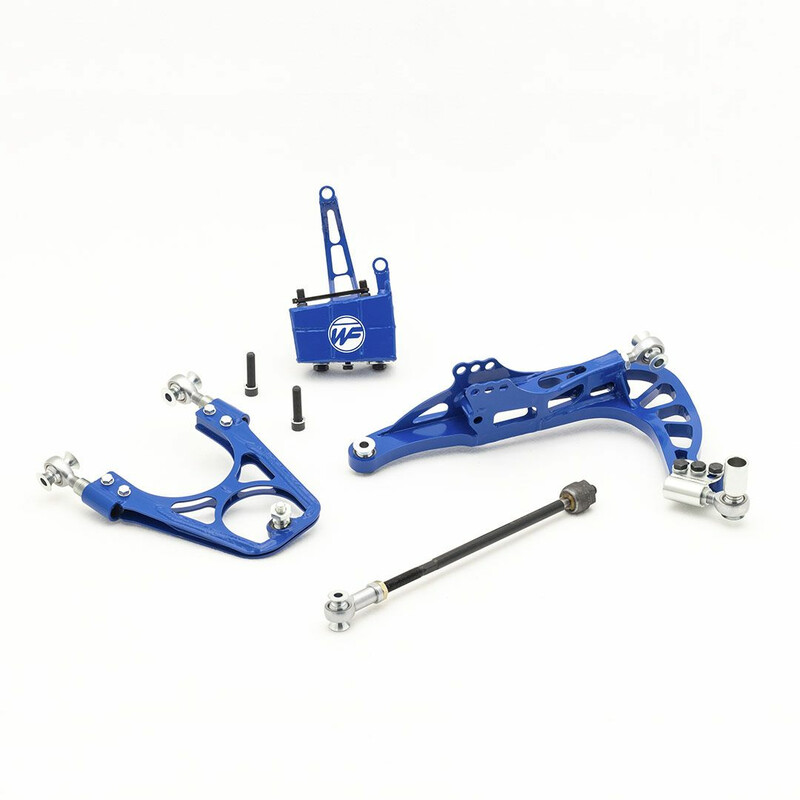

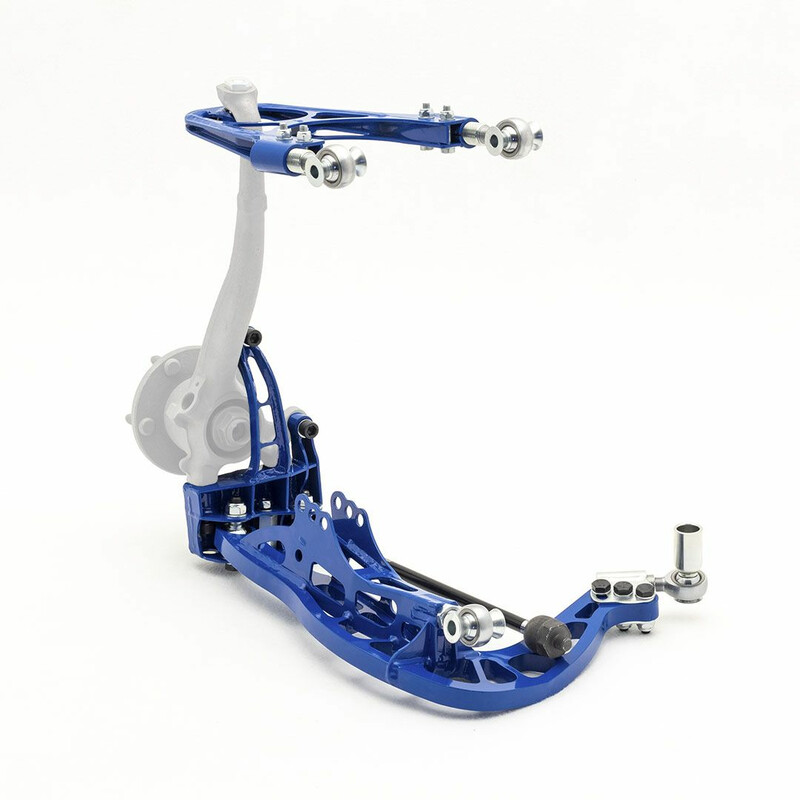

Kit contents :

• Knuckles
• Lower and upper control arms
• Tie rods

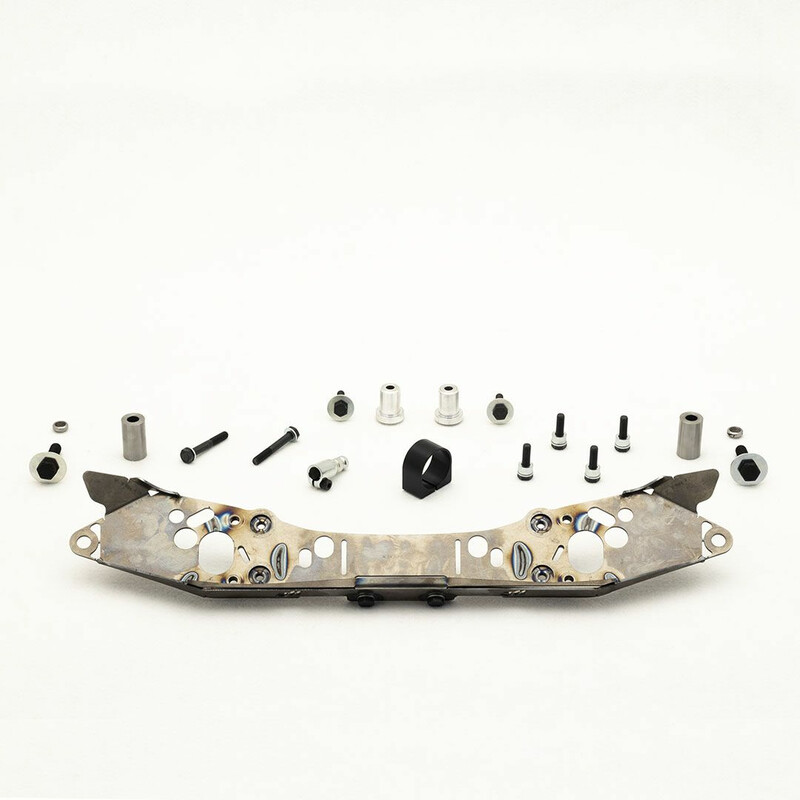

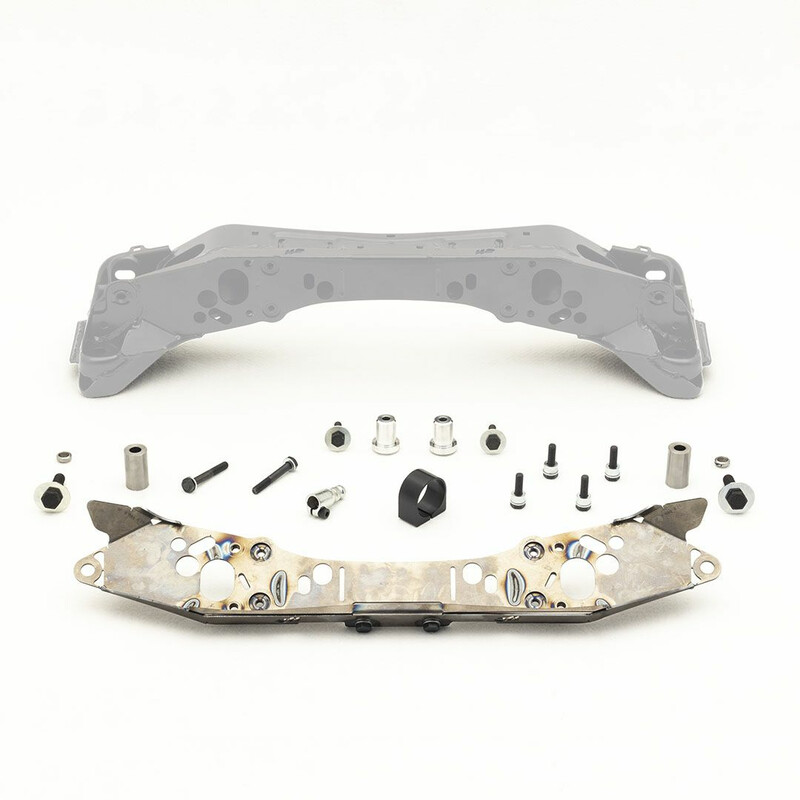

• "FD Legal" steering rack relocation kit
• All required fixings for installation

Manufacturer advice :

• Uprated bushes are strongly recommended
• Wide arches or arch extensions are useful for this kit
• Adjust camber from -3.5 to -4.5°
• Adjust caster from 4.9 to 5.9°
• Adjust toe in/out to 0°
