Wisefab Lock Kit for Nissan Skyline R33
Achieve extreme steering lock!
- To suit Nissan Skyline R33
- Over 60° of steering angle
- Corrected roll centre
- Ackermann reduction and adjustment
- Precise camber adjustment
- Requires S14 or S15 hubs
Ask a question about this productWisefab Lock Kit for Nissan Skyline R33
As one of the most popular cars used for drifting, Wisefab have finally produced the ultimate big lock kit for the Nissan Skyline. With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer 60° of drift optimised steering lock. Being double wishbone, this kit does not alter the Skyline's top mount position, making the kit "FD legal", eligible for competition worldwide.
Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

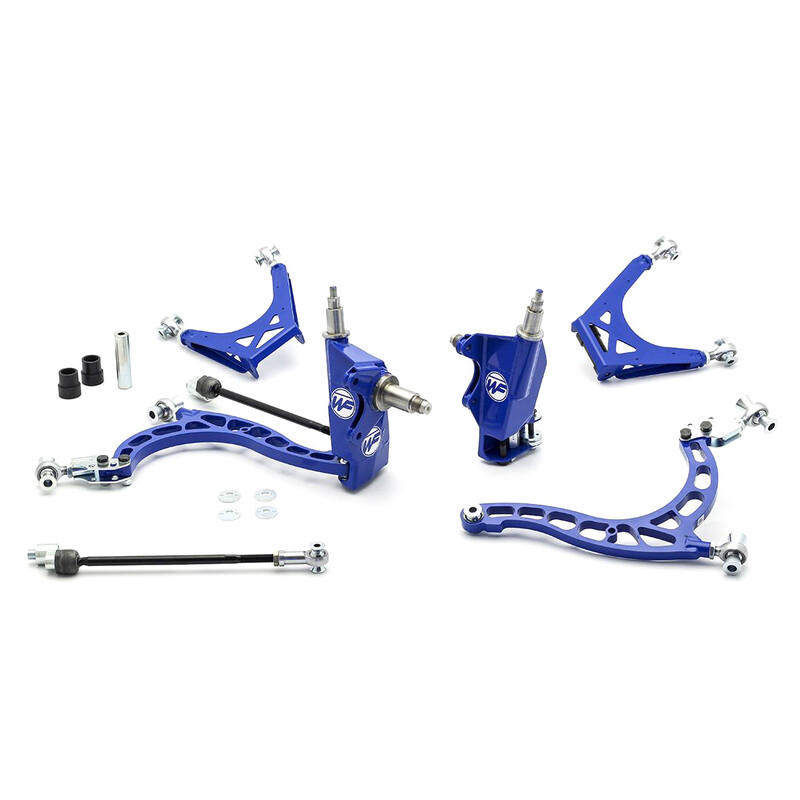

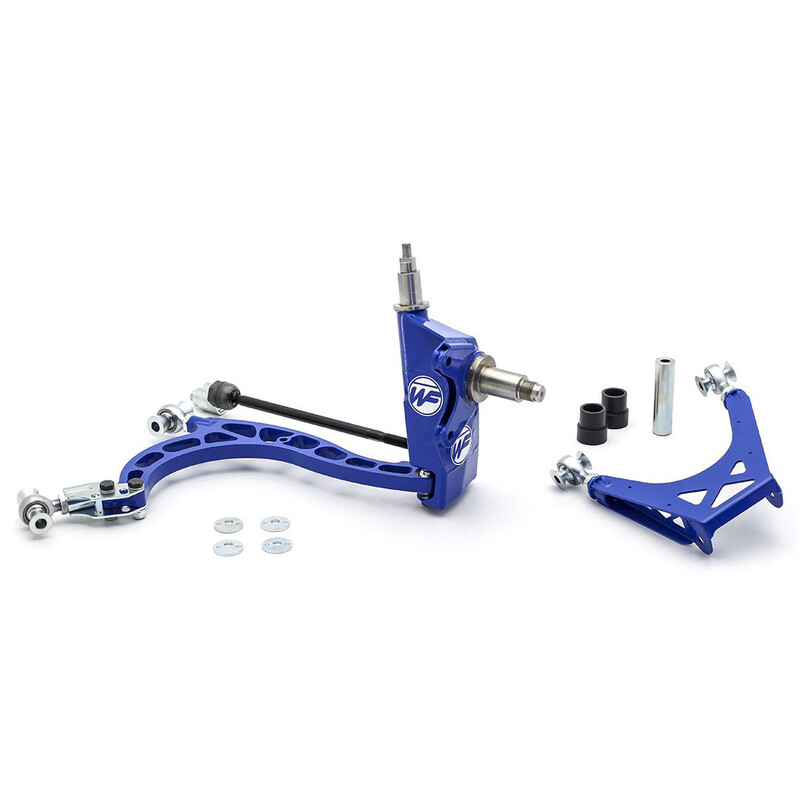

Kit contents :
- Hub knuckles
- Single piece lower arm/tension rod
- Upper (camber) arms
- Tie rods & tie rod ends
- Offset steering spacers
- All required fixings for installation
- Adjustable Ackerman - easily tune Ackermann settings to your specific requirements
Please note : S14 or S15 hubs are required, and this kit is not suitable for GT-R and other 4WD Skyline models.
- Wisefab recommend a wheel diameter that doesn't exceed 635 mm (225/45R17, 235/40R17, 235/35R18, 255/30R18 for example)
- Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
- Minimum wheel diameter of 17" with an 8" width and an ET35 (or near spec like 7" ET45 or 9" ET20)
- Adjust camber from -4 to -5°
- Adjust caster from 3.8 to 4.8°
- Adjust toe in/out to 0°
Characteristics
| Car Make | Nissan |
|---|---|
| Car Model | Nissan Skyline R33 |
| Manufacturer | Wisefab |
Wisefab was founded by a collective of drifters in Estonia, who noticed that there were no lock kits available for popular European models, especially BMWs. Following the success of their first kits for E30 and E36 models, Wisefab's engineers quickly expanded their range with kits for the E46 and E90 models, as well as other manufacturers like Nissan (S13, S14, S15, 350Z, 370Z, R33), Toyota (Supra, Soarer, GT86), Mazda (RX-7, RX-8)...
