Wisefab Lock Kit for Nissan 370Z

Wisefab Lock Kit for Nissan 370Z

Becoming increasingly popular for drifting, Wisefab have finally produced the ultimate big lock kit for the Nissan 370Z.

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer 65° of drift optimised steering lock.

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

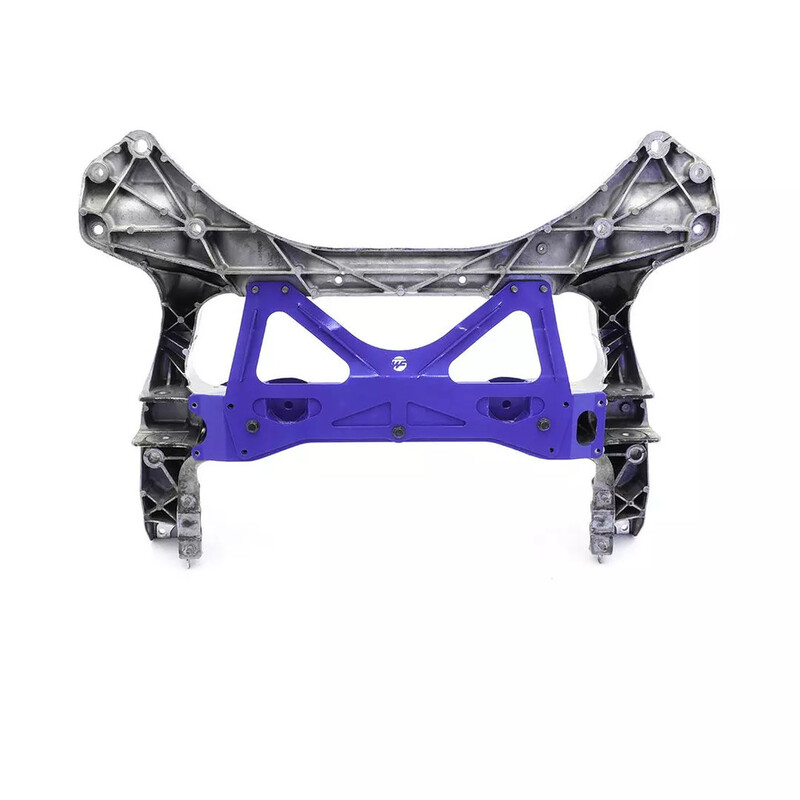

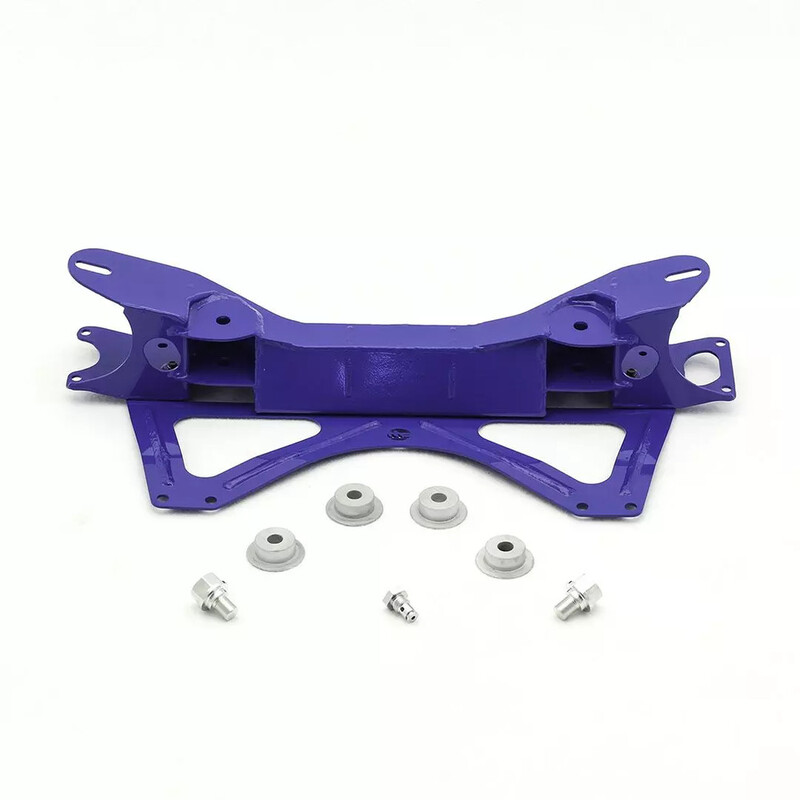

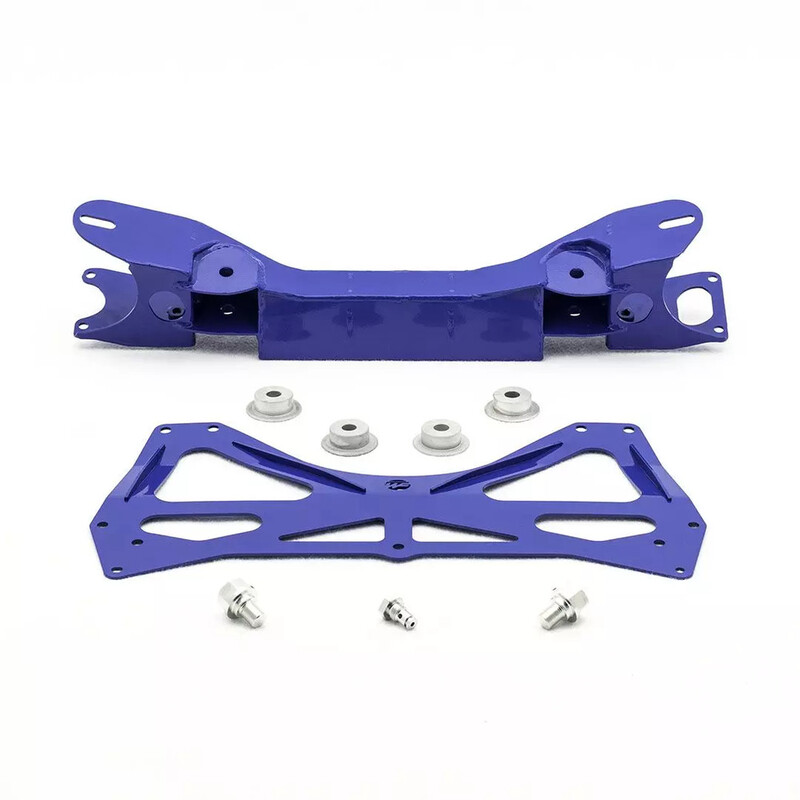

This kit uses the stock steering rack, without requiring any particular modifications to the vehicle. The optional relocation kit allows you to move the steering rack forward. The engine will then be raised by 3 mm while keeping the stock engine mounts. A solenoid removal kit is included and it will be necessary to use the stock bolts and nuts. Installation requires no welding.

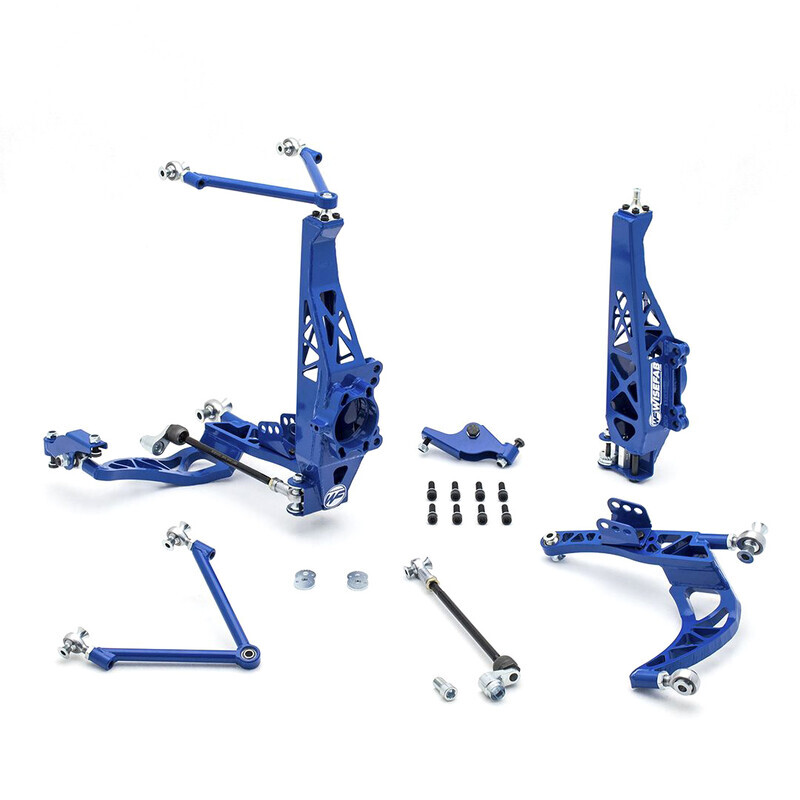

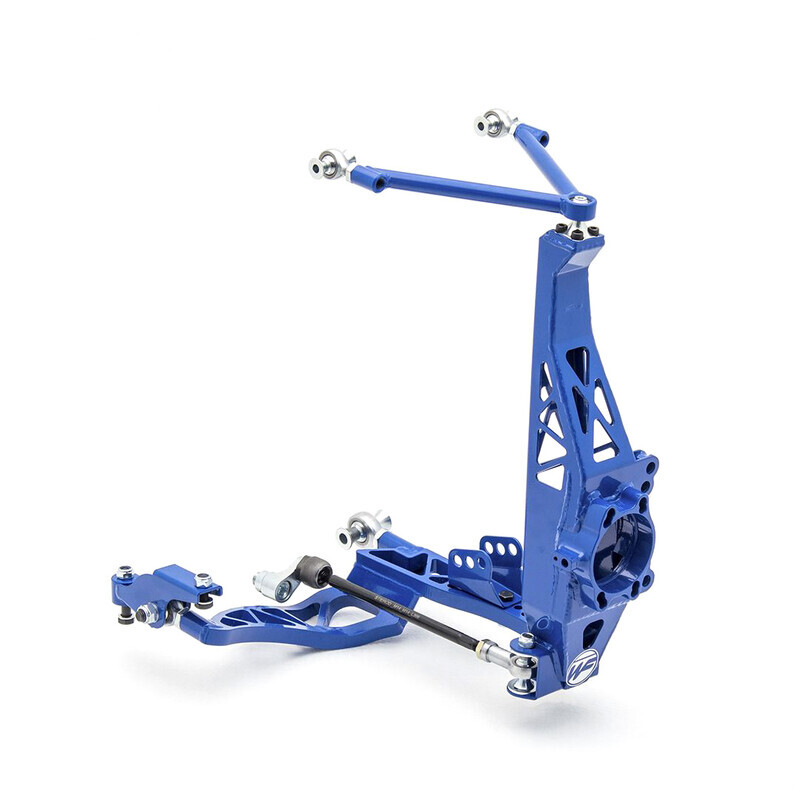

Kit contents :

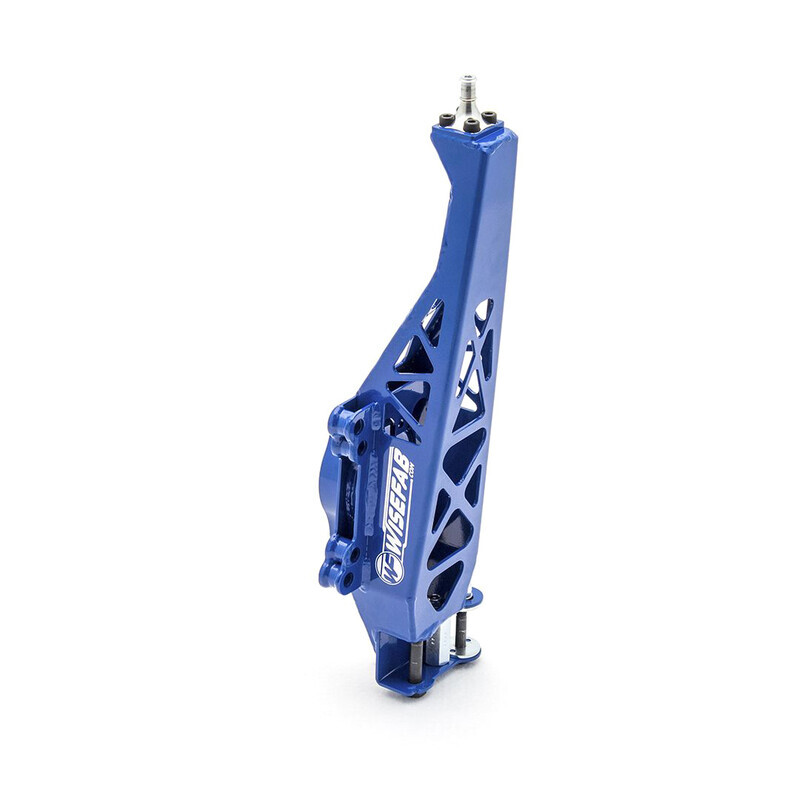

• Hub knuckles

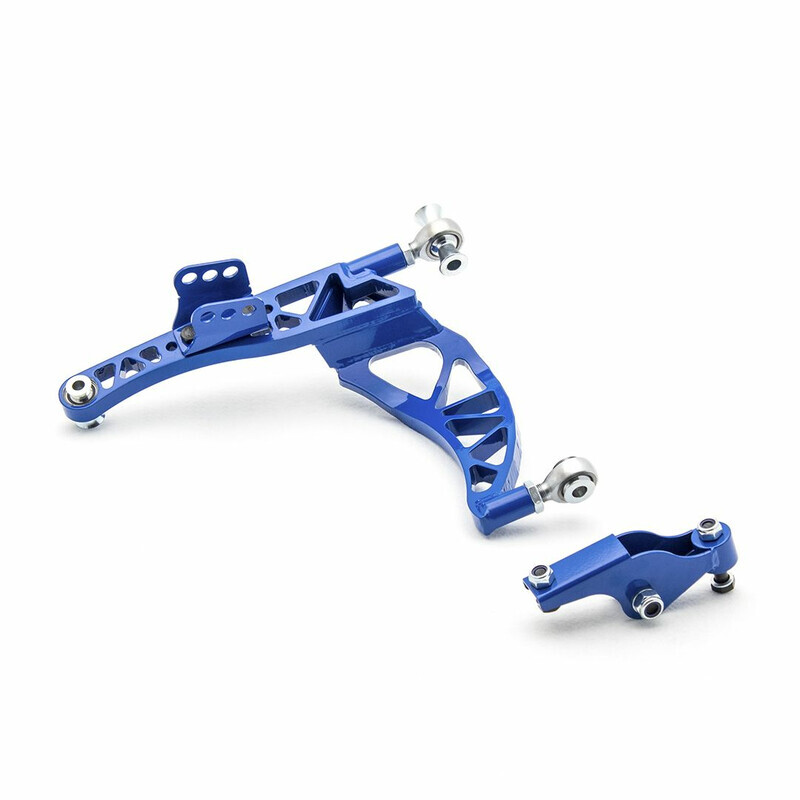

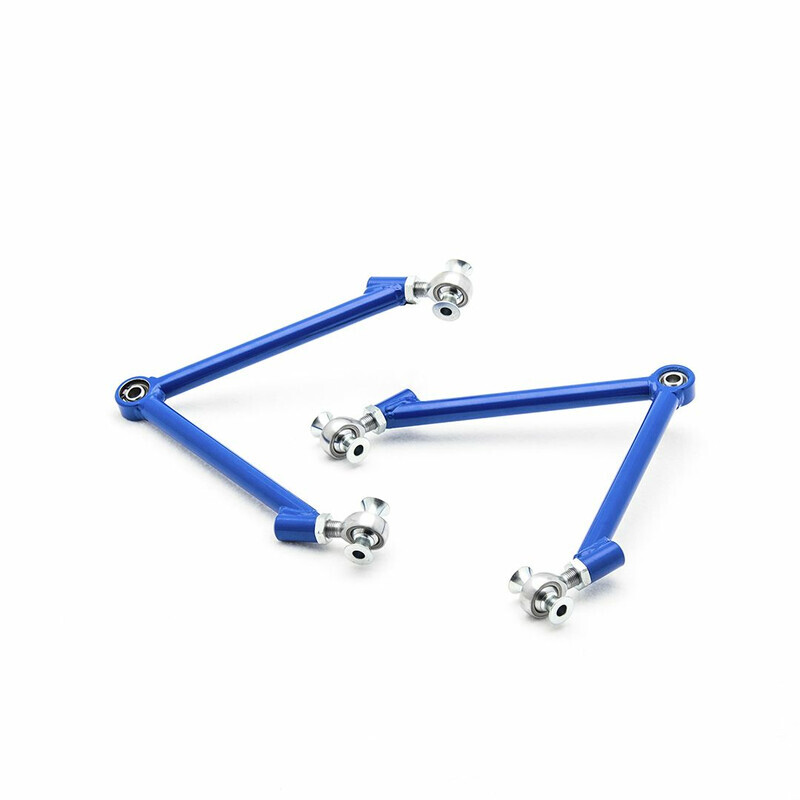

• Pre-set upper and lower control arms

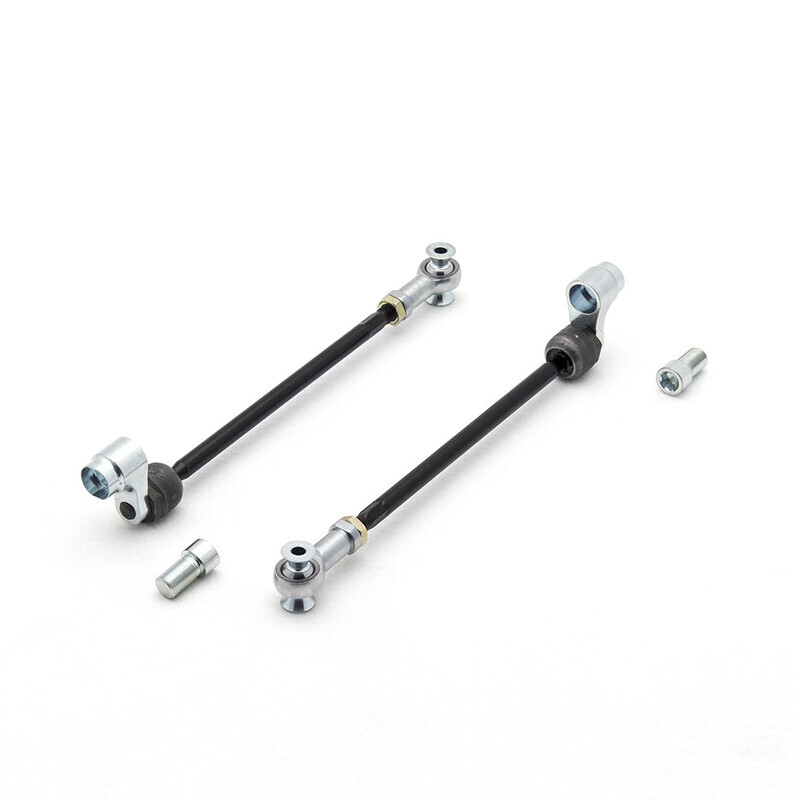

• Assembled tie rods
• Rack offset spacers or rack relocation kit
• All required fixings for installation
• Adjustable Ackerman - easily tune Ackermann settings to your specific requirements

Manufacturer advice :

• Wisefab recommend a wheel diameter that doesn't exceed 635 mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 for example)
• Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
• Adjust camber from -3.4 to -4°
• Adjust caster from 6 to 6.6°
• If Ackermann is 0° or negative then toe is 2mm out ; if Ackermann is positive, then toe is 0°

This kit comes with everything needed for a "plug and play" installation. If you have any questions, do not hesitate to ask!
