Wisefab Lock Kit V2 for Toyota GT86
Dispatched Tuesday, May 13, 2025
Order within 9 h and 36 min.
Achieve extreme steering lock!
- To suit Toyota GT86
- 65° of steering angle
- Corrected roll centre
- Ackermann reduction and adjustment
- Precise camber adjustment
- Adjustable top mounts
- Made from high strength steel
- BMW E9X or Lexus LS (UCF30) rack required
Ask a question about this productWisefab Lock Kit V2 for Toyota GT86
This Wisefab V2 lock kit for Toyota GT86 is made of high strength steel. Although it is a bit heavier than the V1 kit, it is significantly stronger, stiffer and offers more adjustment possibilities as well as improved kinematics.
With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is "FD Legal", meaning the top mount stays within OEM specification - making the kits eligible for competition worldwide.
Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

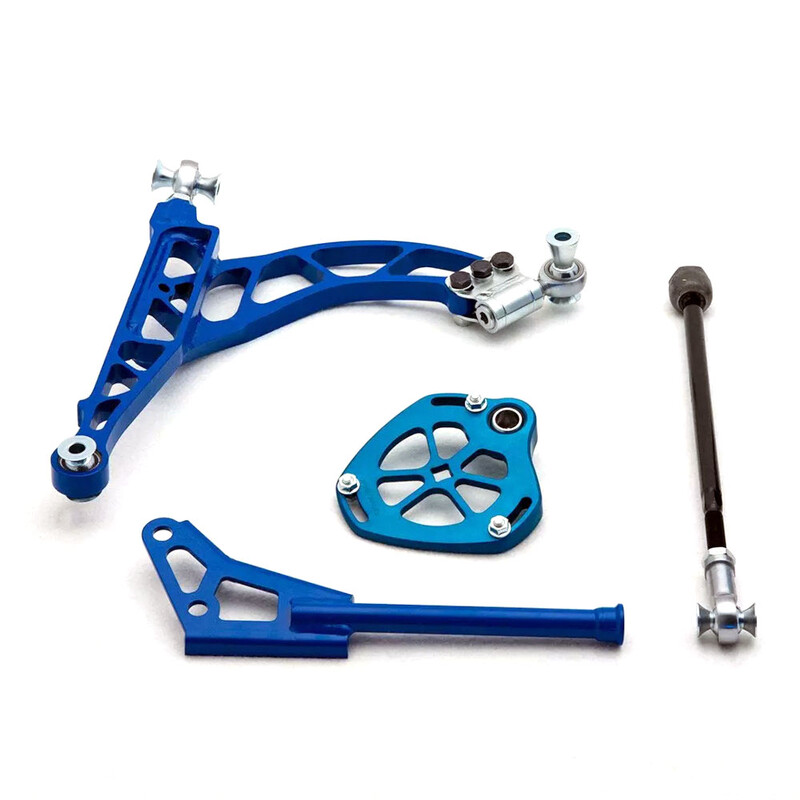

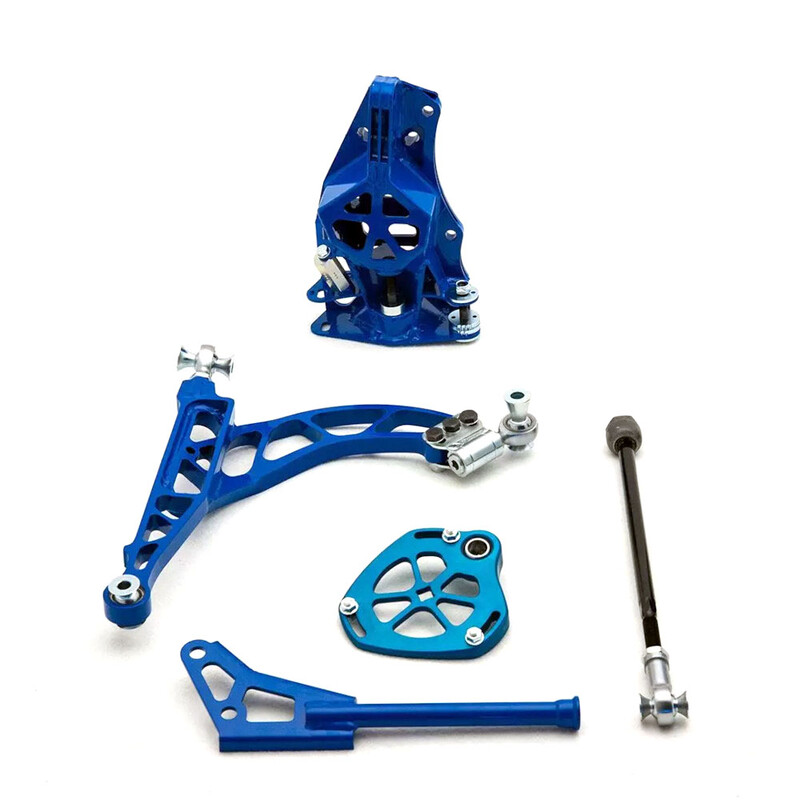

Kit contents :
- Pre-set camber adjustable top mounts
- Pre-set lower control arms
- Knuckles
- Assembled tie rods
- Front position rack relocating kit
- Crossmember supports
- All required fixings for installation
- Ackermann adjustment kit - easily fine tune your Ackermann angle
- Wisefab recommend a wheel diameter that doesn't exceed 605 mm (215/40R17, 225/40R17, 225/35R18, 235/35R18 for example)
- Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
- Adjust camber to -6°
- Adjust caster to 5.5°
- Adjust toe in/out to -2° (if Ackermann is 0 or negative) or 0° (if Ackermann is positive)
- Use 17 ou 18" inch, 8" wide with an ET35 (or near size, like 7" ET45 or 9" ET25)
- BMW E9X or Lexus LS (UCF30) steering rack is needed to be used with this kit to replace the original electric power steering
This kit comes with everything needed for a "plug and play" installation. If you have any questions, do not hesitate to ask!
Characteristics
| Car Make | Toyota |
|---|---|
| Car Model | Toyota GT86 |
| Manufacturer | Wisefab |
Wisefab was founded by a collective of drifters in Estonia, who noticed that there were no lock kits available for popular European models, especially BMWs. Following the success of their first kits for E30 and E36 models, Wisefab's engineers quickly expanded their range with kits for the E46 and E90 models, as well as other manufacturers like Nissan (S13, S14, S15, 350Z, 370Z, R33), Toyota (Supra, Soarer, GT86), Mazda (RX-7, RX-8)...
