Wisefab Lock Kit for Chevrolet Corvette C5 & C6
Achieve extreme steering lock!
- To suit Chevrolet Corvette C5/C6
- Over 65° of steering angle
- Corrected roll centre
- Ackermann reduction
- Precise camber adjustment
- Optional front rack offset spacer kit
Wisefab Lock Kit for Chevrolet Corvette C5/C6
Increasingly popular in drifting events, the Chevrolet Corvette C5 and C6 have excellent potential that just needs to be exploited. To achieve this, Wisefab has designed this front kit to considerably increase the steering angle and offer a wide range of geometry adjustment options.
With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 65° of drift optimised steering lock.
Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.
This steering angle kit comes with an optional rack offset spacer kit intended only for C6 chassis (not needed on C5). These spacers further unlock the steering angle and improve the Ackermann curve.

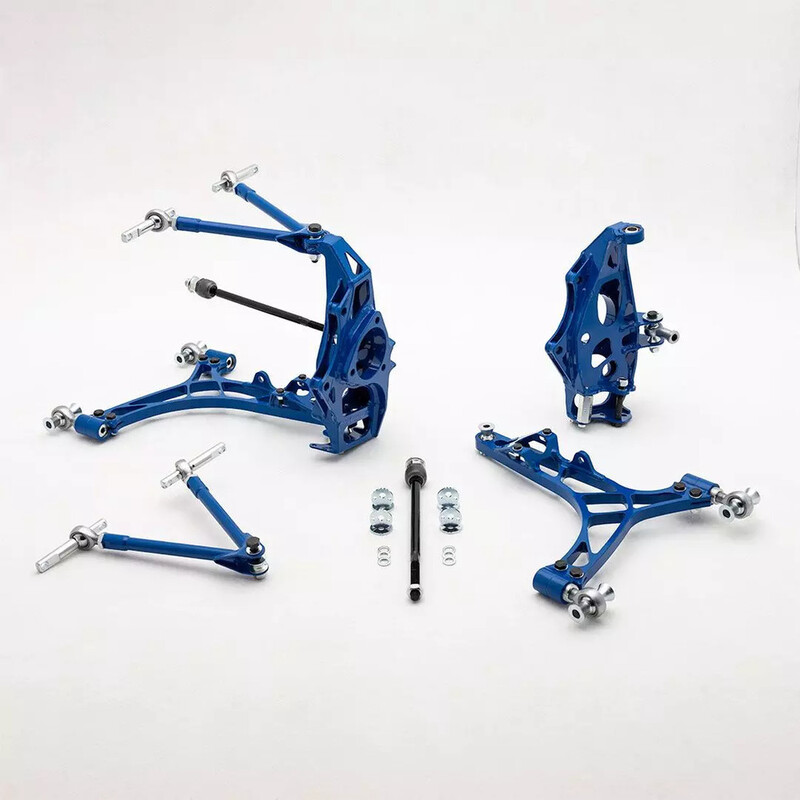

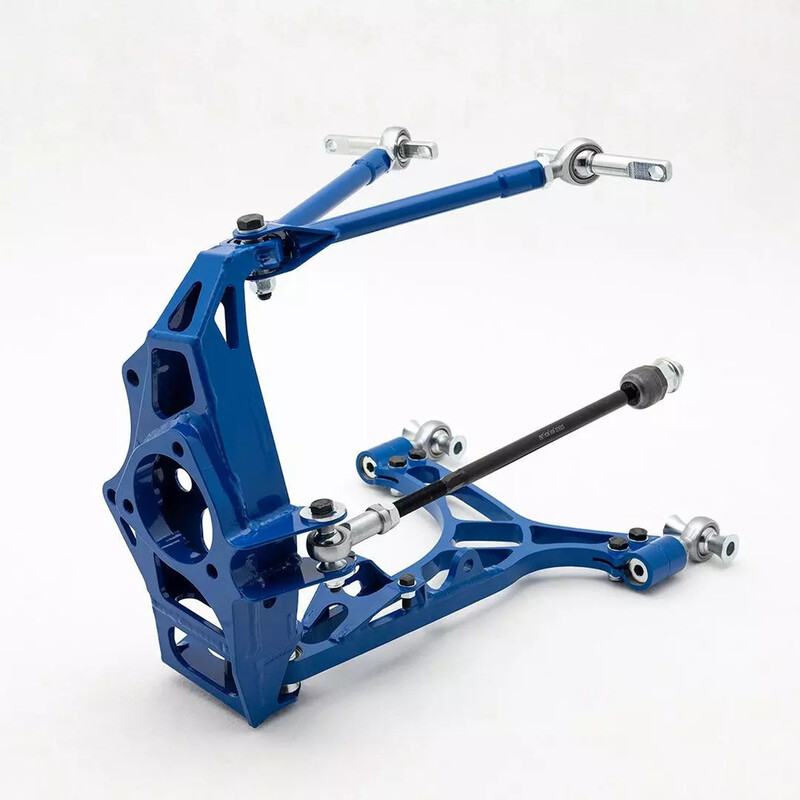

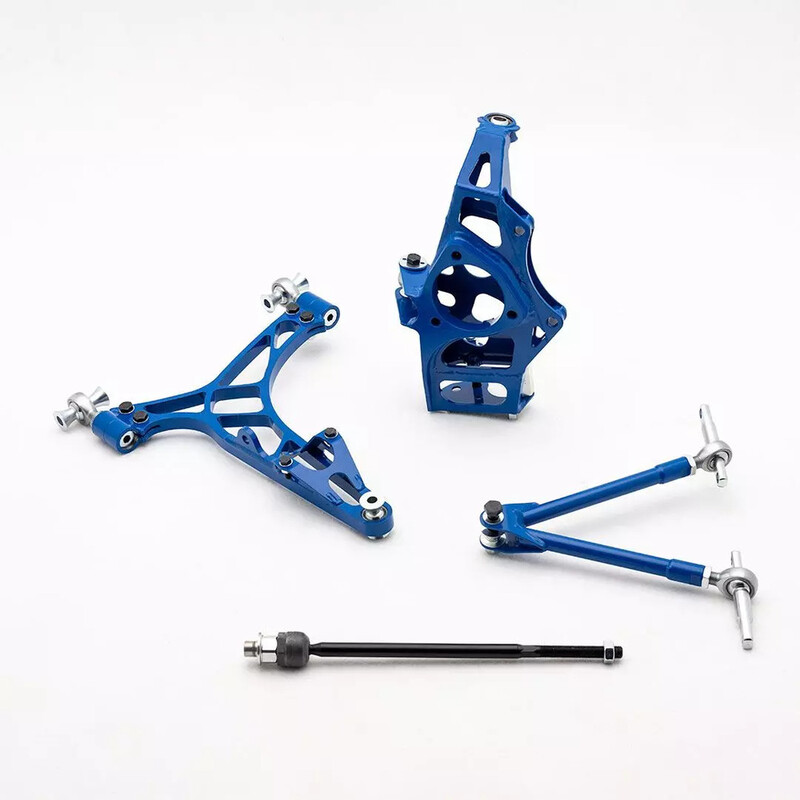

Kit contents :
- Hub knuckles
- Lower and upper control arms
- Assembled tie rods
- Rack offset spacers (optional)
- All required fixings for installation
Manufacturer advice :
- Wide arches or arch extensions are useful for this kit
- The OE ABS sensor can be used with this kit
- Adjust camber to -3.5°
- Adjust caster to 6°
- If Ackermann is 0° or negative then toe is 2mm out ; if Ackermann is positive, then toe is 0°
This kit comes with everything needed for a "plug and play" installation. If you have any questions, do not hesitate to ask!
Video
Characteristics
Car Make | Chevrolet |
---|---|
Car Model | Chevrolet Corvette |
Wisefab was founded by a collective of drifters in Estonia, who noticed that there were no lock kits available for popular European models, especially BMWs. Following the success of their first kits for E30 and E36 models, Wisefab's engineers quickly expanded their range with kits for the E46 and E90 models, as well as other manufacturers like Nissan (S13, S14, S15, 350Z, 370Z, R33), Toyota (Supra, Soarer, GT86), Mazda (RX-7, RX-8)...
