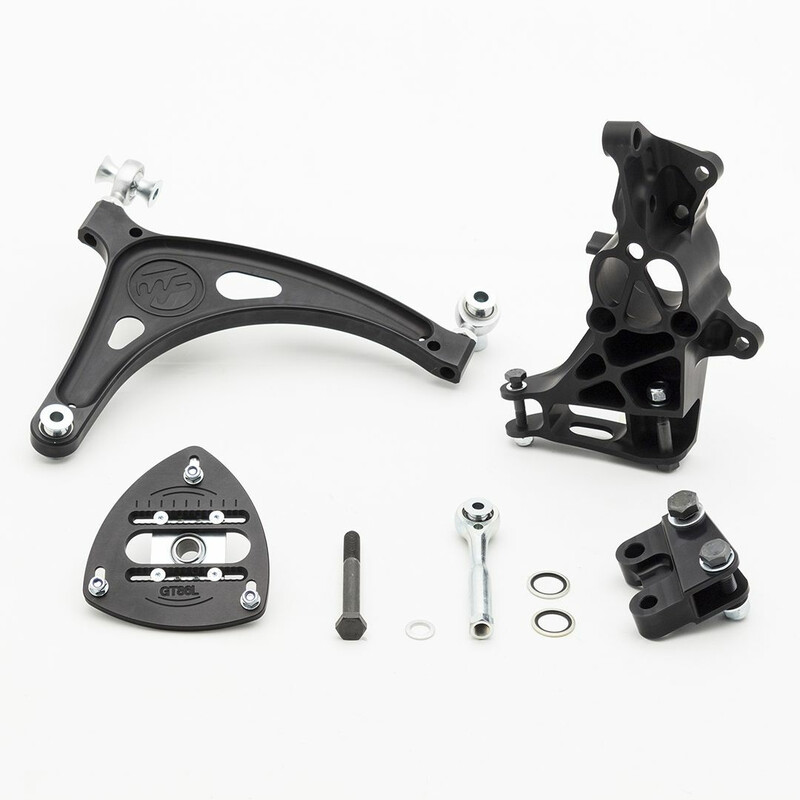

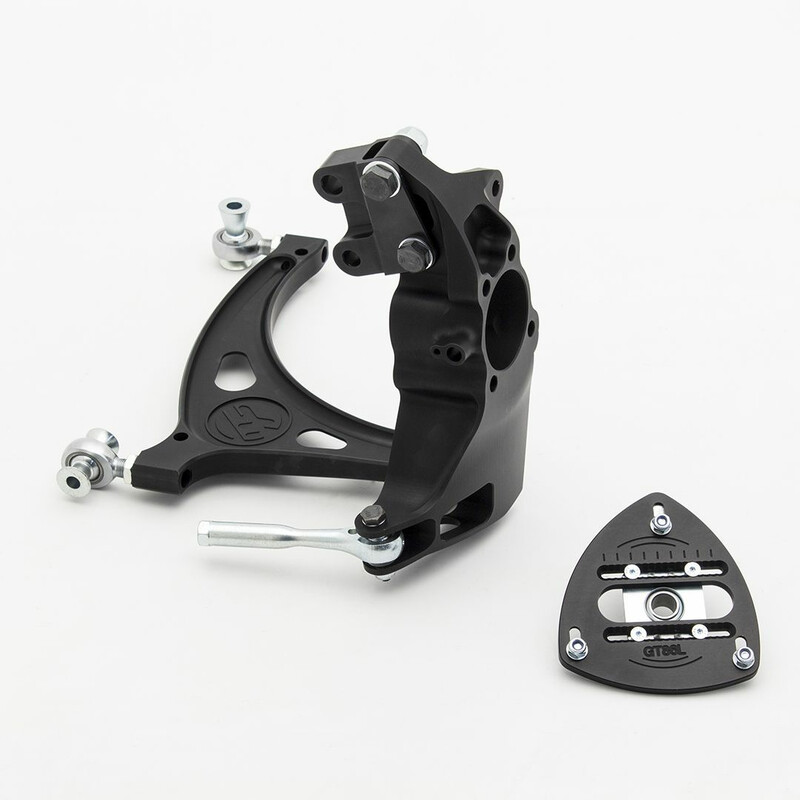

Wisefab Front Track Kit for Toyota GT86

Wisefab Front Track Kit for Toyota GT86

Toyota GT86 / Subaru BRZ / Scion FR-s is a well designed car for enthusiast driver. The car performs well on streets and can be taken to a race track. If the focus is more towards performance, then the car can act even better with lowered ride height, but then the factory designed kinematics wouldn’t work as it supposed to. The Wisefab kit would bring the RC and camber gain back to normal range, providing better roll stiffness, better handling and grip. It has about 45mm A-arm joint drop compare to original knuckle.

7 kg of weight reduction over original components and still maintaining required strength and stiffness

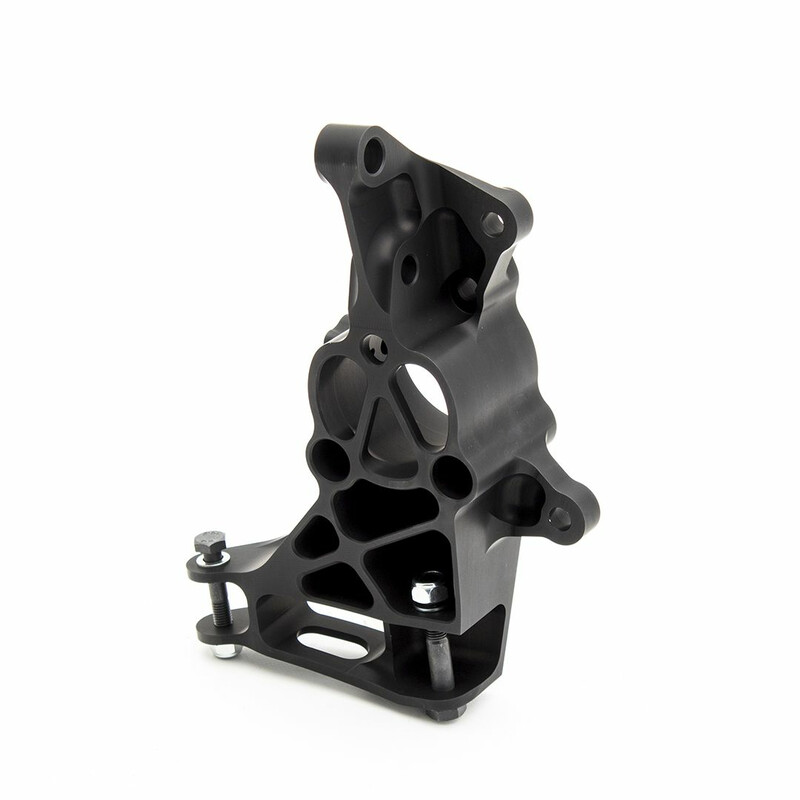

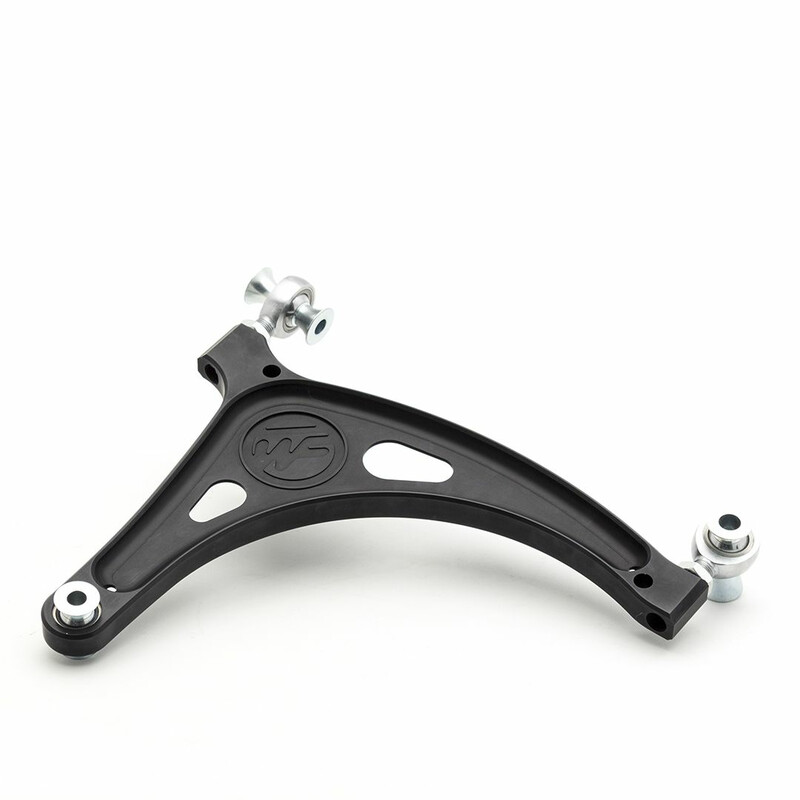

7075-T6 aluminium billet CNC knuckles and arms with optimized design and all double shear connections provide low weight and high strenght.

CrMo rod ends and sphericals used instead of rubber bushings

Quicker steering ratio.

Steering ratio is slightly quicker compare to original

More caster

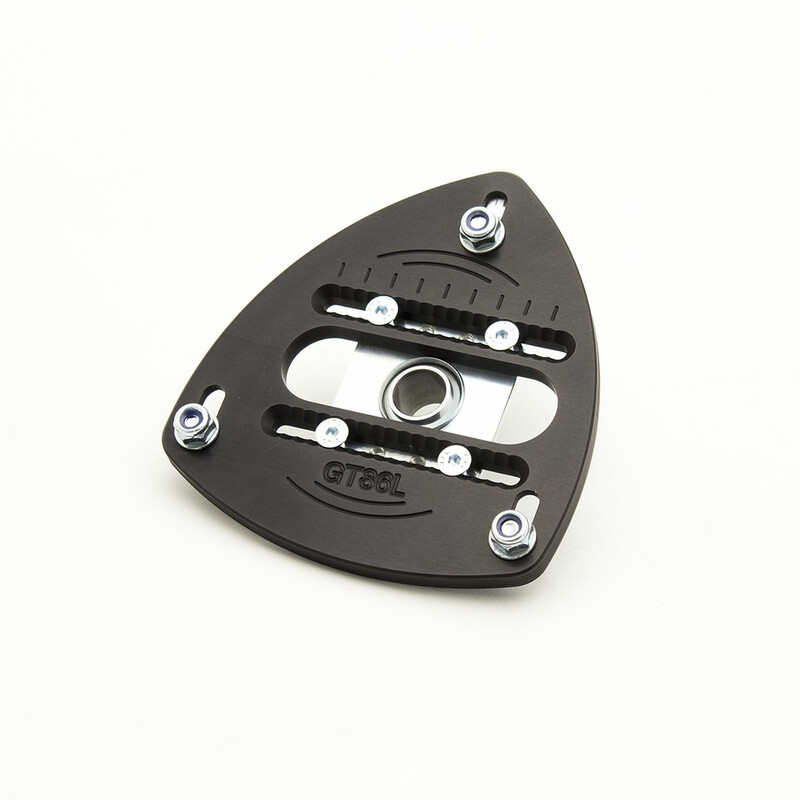

The kit comes with camberplate that has separate camber/caster adjustment. Initially the caster is set to 6 degrees.

Trackwidth adjustment.

A-arm rod ends are placed parallel to allow track adjustments. Needed trackwidth could depend on: fender (if original or widened fenders are used), rim width / offset, race series rules. Therefore the track can be adjusted by 24mm. Small cut to chassis is needed to accomodate Wisefab arm.

Other components, packaging and clearance.

This kit assumes coilovers

Minimum rim size is 17“

Recommended backspacing is 135-140mm (7“ ET40; 8“ ET30; 9“ ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.

Original wheel speed sensor can be used
