Walbro Motorsport 255 L/h Fuel Pump Kit - Honda Civic VTi EK4, Type R EK9, Integra Type R DC2

Walbro 255 LPH Fuel Pump Kit – Honda Civic VTi EK4, Type R EK9, Integra Type R DC2

When tuning an engine, the original fuel pump is often unsuitable and no longer able to provide enough fuel. The consequences can be disastrous, with the worst case being engine failure from running lean.

Walbro fuel pump kits are the first step towards increasing fuel system function and reliability. Note that by itself, a high flow fuel pump does not increase the power of your vehicle. They are used to replace a tired OE pump or when there’s a need for increased fuel flow, such as applications with increased boost pressure, larger injectors, or other changes. These pumps are capable of providing enough fuel for over 400HP.

Technical specifications

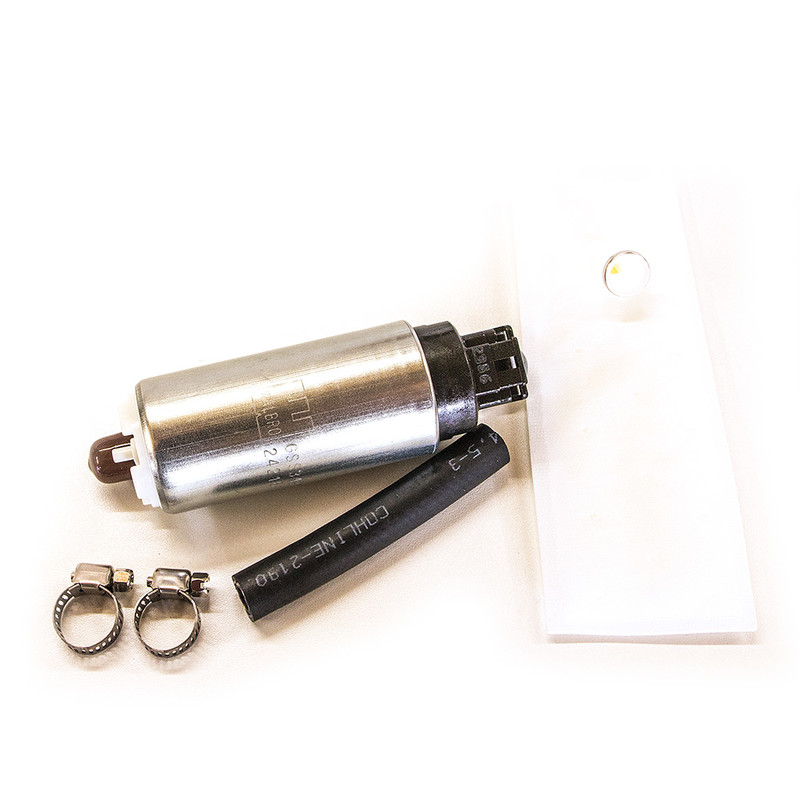

• “Plug-and-play” kit (generic picture)
• To suit Honda Civic VTi EK4, Type R EK9, Integra Type R DC2
• Inlet diameter : 8 mm
• Outlet diameter : 11 mm
• Voltage : 12 V
• Maximum pressure: 8.5 bars
• Maximum flow: 318 liters per hour
• Flow at 3 bars : 255 liters per hour
• Flow at 5 bars : 225 liters per hour
• Length : 120 mm
• Diameter : 39 mm
• Weight : 366 g

DriftShop is supplied directly from the manufacturer without any intermediary. Our Walbro pumps are 100% authentic and guaranteed for 1 year. The pumps are engraved with the "TI Automotive" logo, manufacturer and owner of the Walbro brand.
