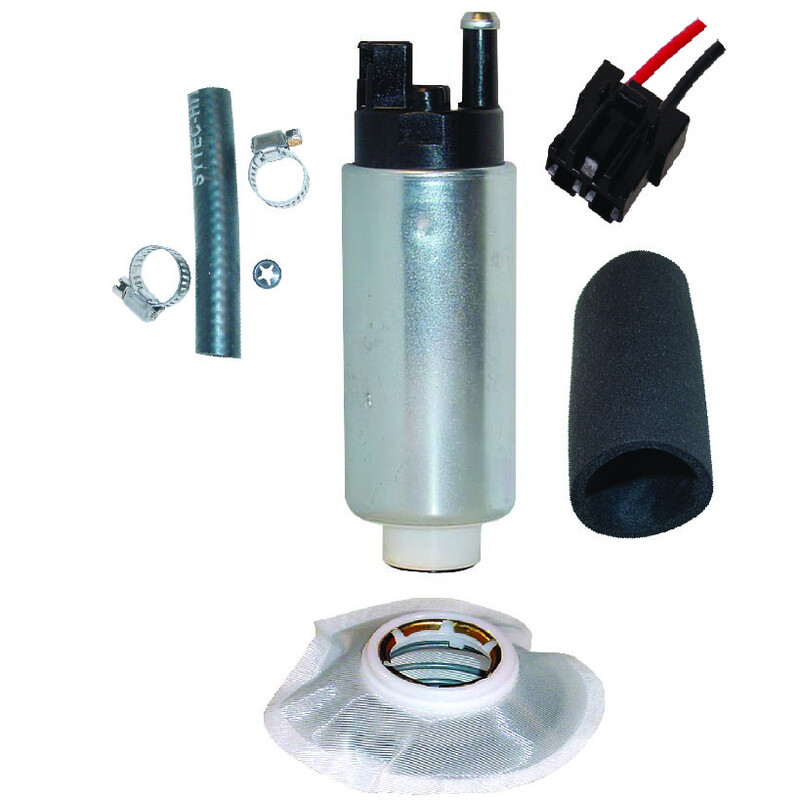

Walbro Motorsport 255 L/h Fuel Pump Kit - Citroen AX, Saxo & Peugeot 106

Walbro Motorsport 255 L/h Fuel Pump Kit - Citroen AX, Saxo & Peugeot 106

When tuning an engine, the original fuel pump is often unsuitable and no longer able to provide enough fuel. The consequences can be disastrous, with the worst case being engine failure from running lean.

Fuel pump kits are the first step towards increasing fuel system function and reliability. Note that by itself, a high flow fuel pump does not increase the power of your vehicle. They are used to replace a tired OE pump or when there’s a need for increased fuel flow, such as applications with increased boost pressure, larger injectors, or other changes.

Technical specifications

• Walbro Motorsport 255 L/h fuel pump
• Inlet diameter : 8 mm
• Outlet diameter : 22 mm
• Pump reference : Walbro GSS242
• Voltage : 12 V
• Maximum pressure : 6.6 bar
• Maximum flow : 222 liters per hour
• Flow at 3 bar : 168 liters per hour
• Flow at 5 bar : 126 litres par heure
• Length : 120 mm
• Diameter : 39.2 mm
• Weight : 366g

Fitments

• Citroen AX 1.4i Mpi, 91> (OEM pump part no. : 0580 310 015)
• Citroen Saxo 1.6i 16v Mpi, 96-03 (OEM pump part no. : VDO -13034)
• Citroen Saxo 1.6i 16v Mpi, 96-03 (OEM pump part no. : 0580 310 014)
• Peugeot 106 1.6 16s, 96> (OEM pump part no. : 0580 310 014)
