Walbro Motorsport 190 L/h Fuel Pump Kit - Peugeot 206 S16 & 607

Walbro Motorsport 190 L/h Fuel Pump Kit - Peugeot 206 S16 & 607

When tuning an engine, the original fuel pump is often unsuitable and no longer able to provide enough fuel. The consequences can be disastrous, with the worst case being engine failure from running lean.

Fuel pump kits are the first step towards increasing fuel system function and reliability. Note that by itself, a high flow fuel pump does not increase the power of your vehicle. They are used to replace a tired OE pump or when there’s a need for increased fuel flow, such as applications with increased boost pressure, larger injectors, or other changes.

Technical specifications

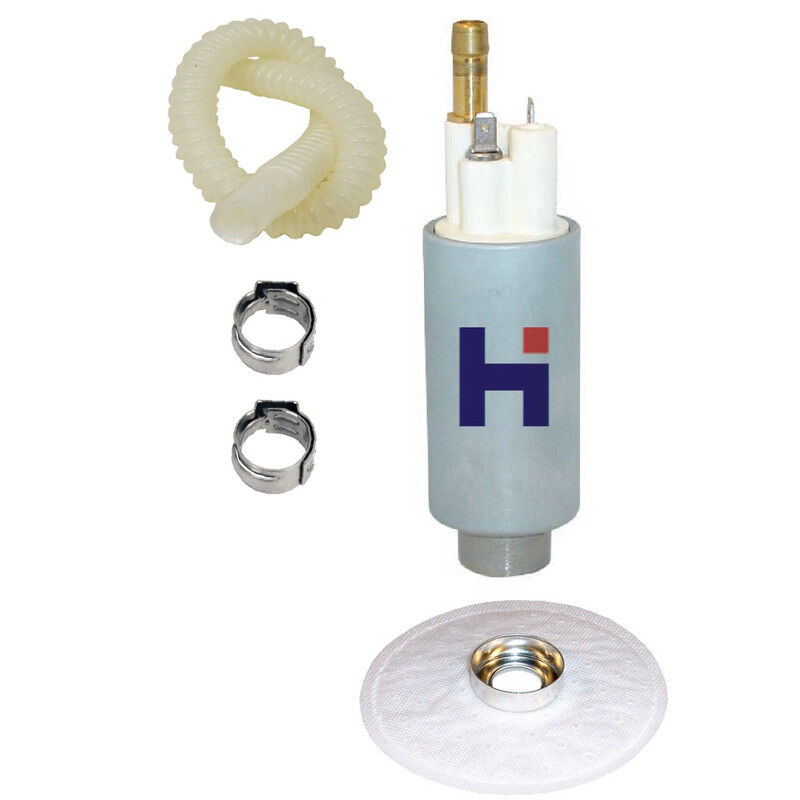

• Walbro Motorsport 190 L/h fuel pump
• Inlet diameter : 8 mm
• Outlet diameter : 22.5 mm
• Pump reference : HI P3035
• Voltage : 12 V
• Maximum pressure : 7.4 bar
• Maximum flow : 186 liters per hour
• Flow at 3 bar : 138 liters per hour
• Flow at 5 bar : 96 litres par heure
• Length : 128 mm
• Diameter : 36.8 mm
• Weight : 300g

Fitments

• Peugeot 206 CC (2D) - 1.6 16V, 09.00 - (OEM pump part no. : TTP297/387)
• Peugeot 206 CC (2D) - 2.0 S16, 09.00 - (OEM pump part no. : TTP297/387)
• Peugeot 206 Hatchback (2A/C) - 2.0 S16, 04.99 - 10.00 (OEM pump part no. : TTP297/387)
• Peugeot 306 Multipoint Injection
• Peugeot 607 (9D, 9U) - 2.0, 02.00 - (OEM pump part no. : TTP297/387)
• Peugeot 607 (9D, 9U) - 2.2 16V, 02.00 - (OEM pump part no. : TTP297/387)
• Peugeot 607 (9D, 9U) - 3.0 V6 24V, 02.00 - (OEM pump part no. : TTP297/387)
• Peugeot PARTNER Combispace (5F) - 1.6 16V, 07.01 - (OEM pump part no. : TTP297/387)
• Peugeot PARTNER Van (5) - 1.4 BiFuel, 04.03 - (OEM pump part no. : TTP297/387)
