Universal Oil Cooler Kit - Radiator, Hoses and Sandwich Plate

Universal Oil Cooler Kit Specification

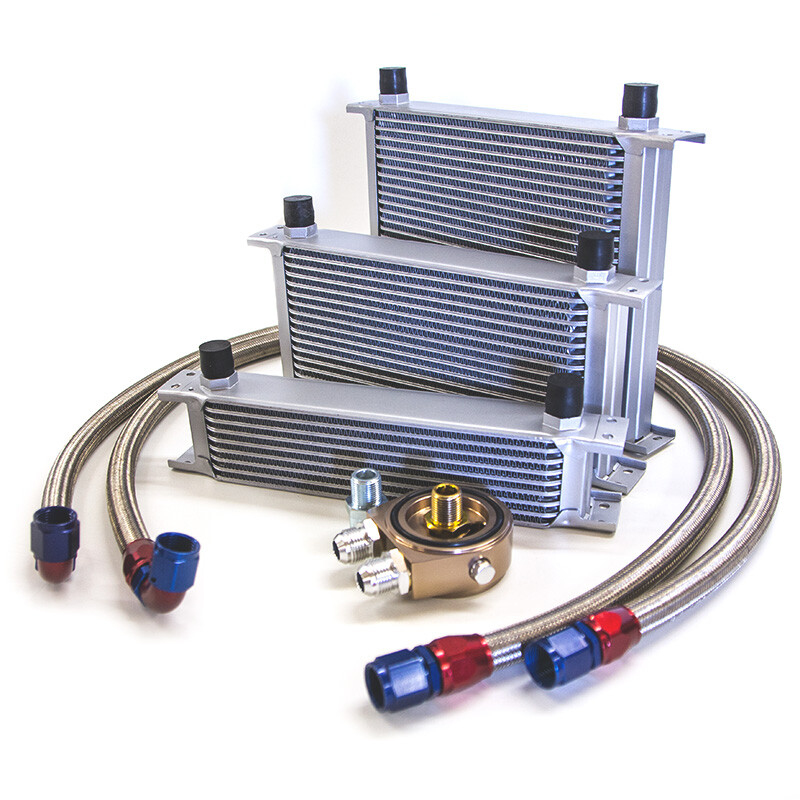

This "plug and play" kit contains everything you need to mount an oil cooler to your engine :

• Oil cooler, choose from : 9, 19 or 30 row

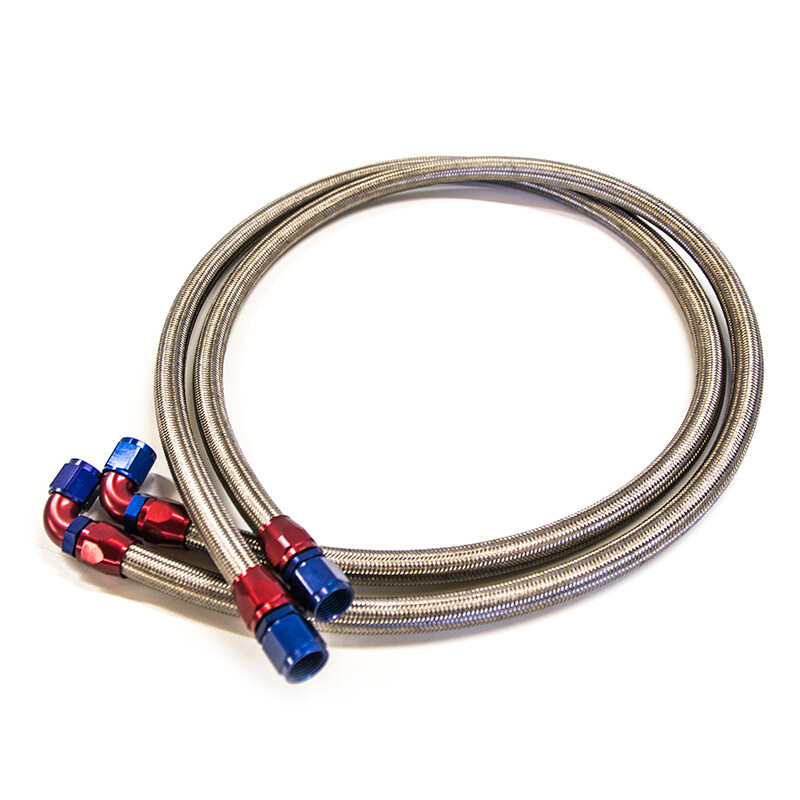

• 2 x 140 cm braided hoses, -10 AN fitings,
• Sandwich plate, choose from : thermostatic, sender adapter, or -10 adapter for BMW E36, E46, E82, E9X

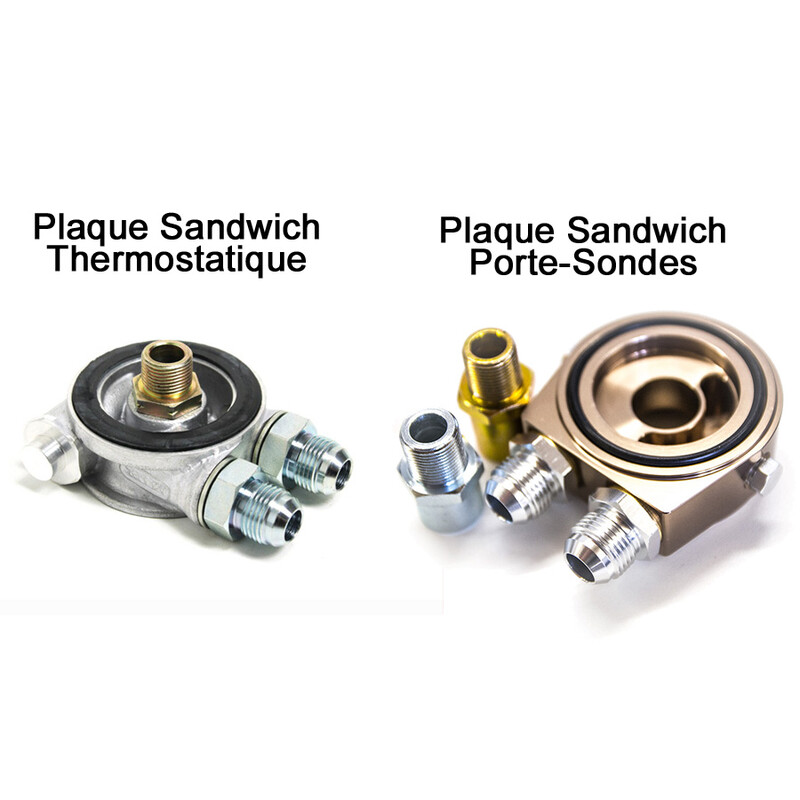

The thermostatic sandwich plate allows full oil flow from 75°c enabling a fast rise in temperature, but oil cooling when required.

The sender adapter plate allows 2 senders to be installed (e.g. oil temp and oil pressure) but isn't thermostatic.

Both include a 3/4"-16F, M18x1.5, M20x1.5 and M22x1.5, block adapter to be compatible with many engines :

• BMW E30

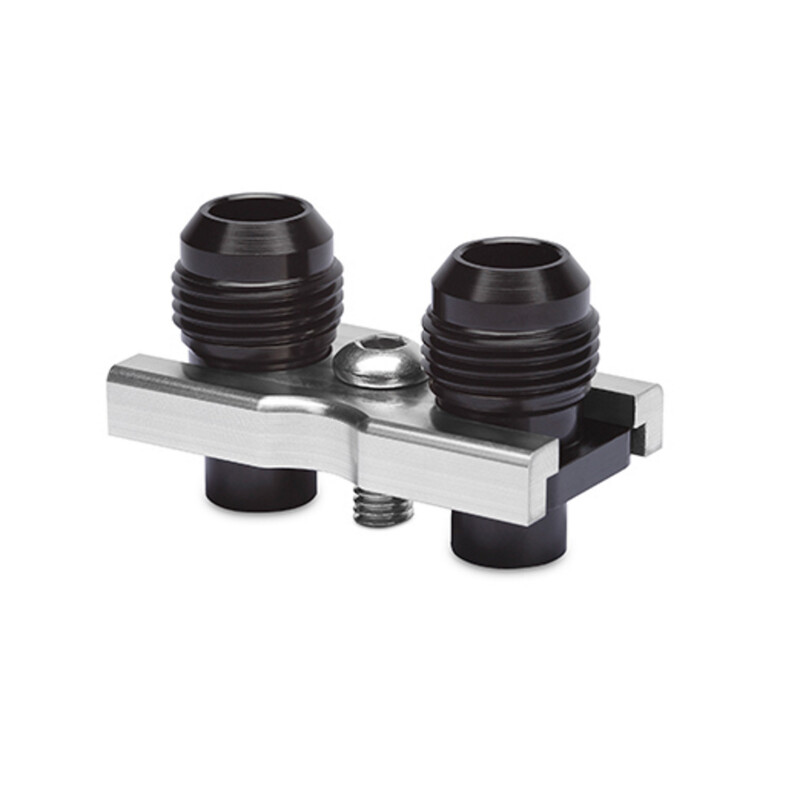

• BMW M3 E36, M3 E46, E9X 335i, BMW E87 135i & 1M (select the -10 adapter for these vehicles, not a sandwich plate)
• Mazda MX-5, RX-7, RX-8...
• Toyota 4A-GE, 1JZ et 2JZ-GTE, 3S-GTE, ...
• Nissan VQ35DE, CA18DET, SR20DET, RB20DET, RB25DET, RB26DETT, ...
• If you have any doubts about fitment, please contact us!

Oil cooler dimensions :

• Width : 248 mm (distance between -10 connectors)
• Thickness : 50 mm
• Height : 66 mm (9 row), 144 mm (19 row), 235 mm (30 row)

Installation advice : To ensure optimum oil cooler efficiency, we recommend placing the cooler against your radiator to maximise airflow

Caution for GT86 & Subaru BRZ : The shape of the engine block around the oil filter prevents the addition of a normal take-off, a special adapter is required. Please contact us for more information!
