Turbosmart TS-1 (930 hp) Turbo, Bolted Cartidges, Oil Cooled

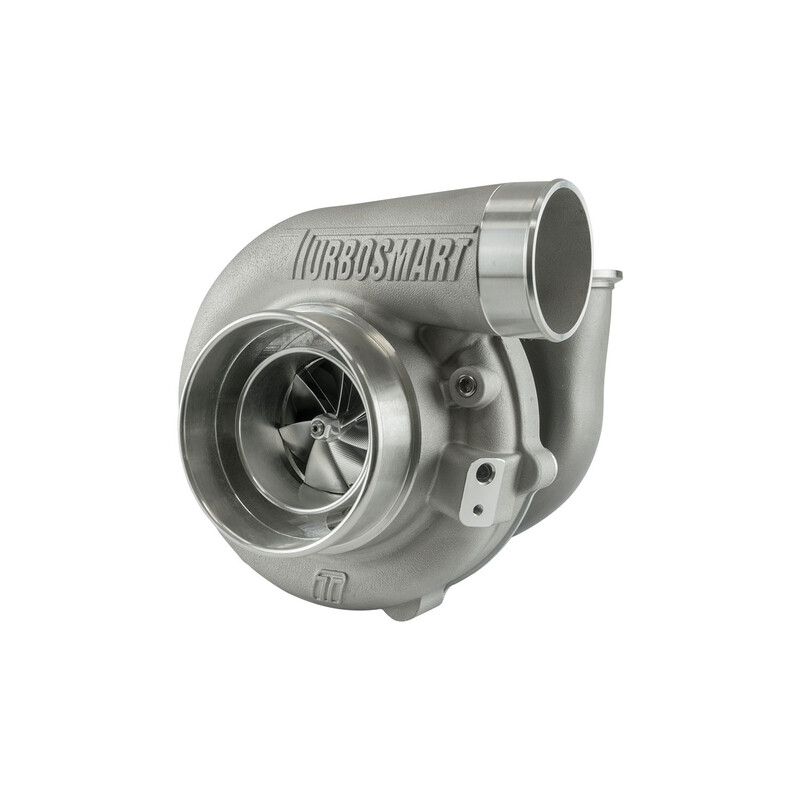

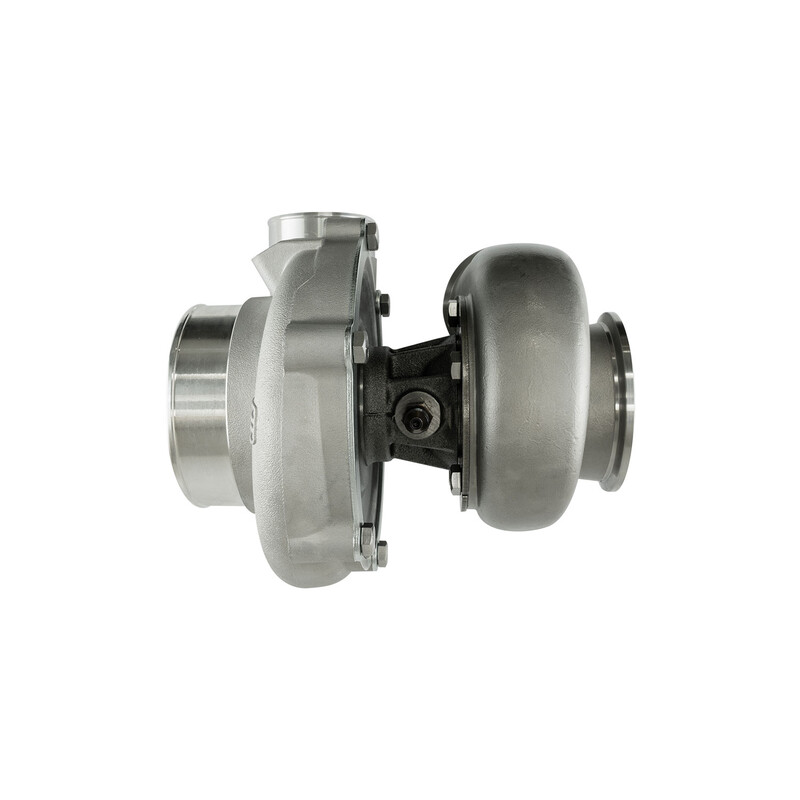

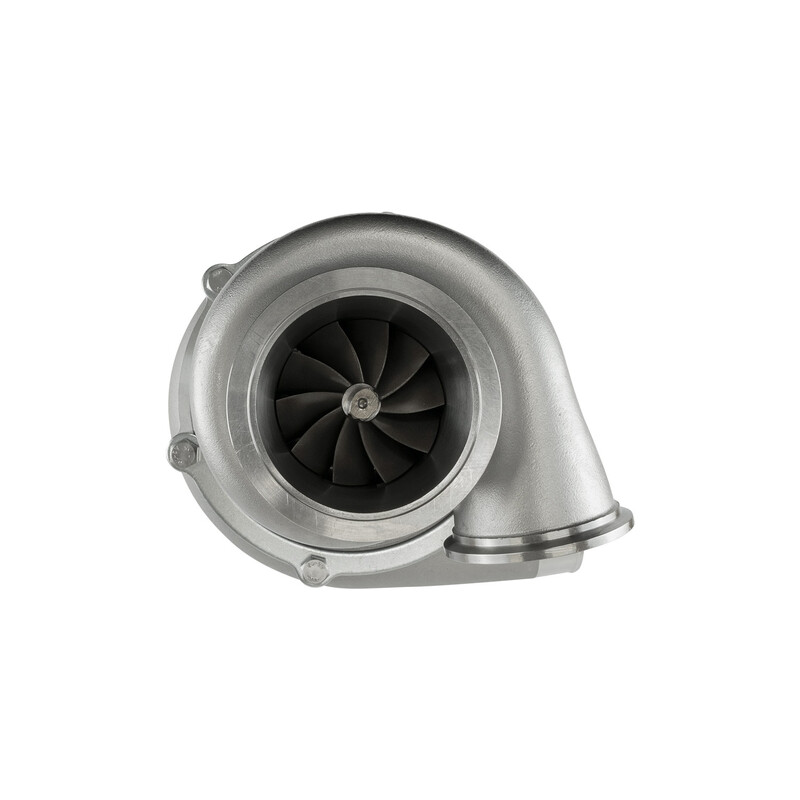

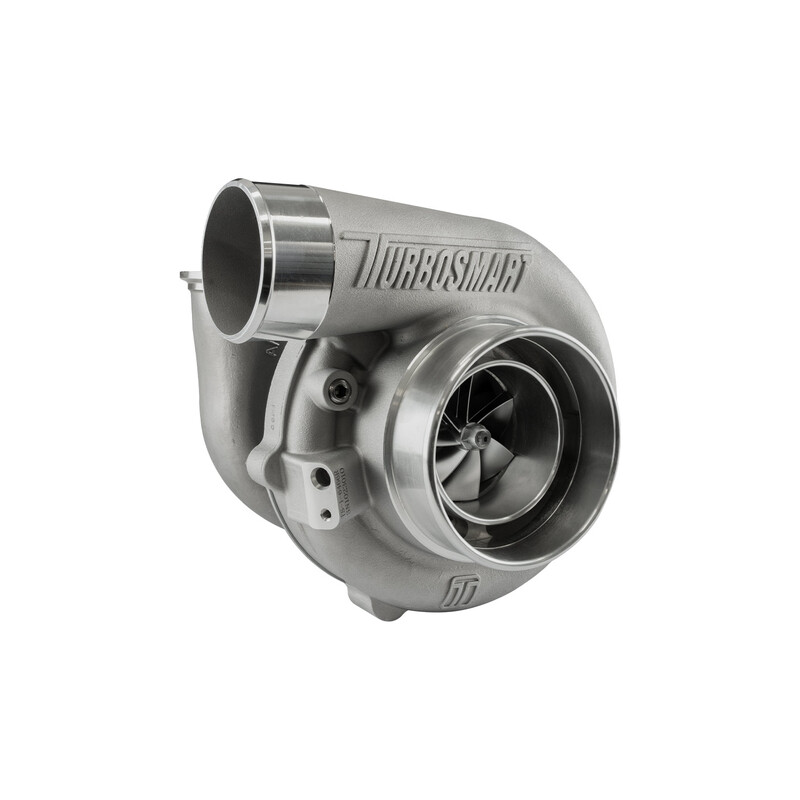

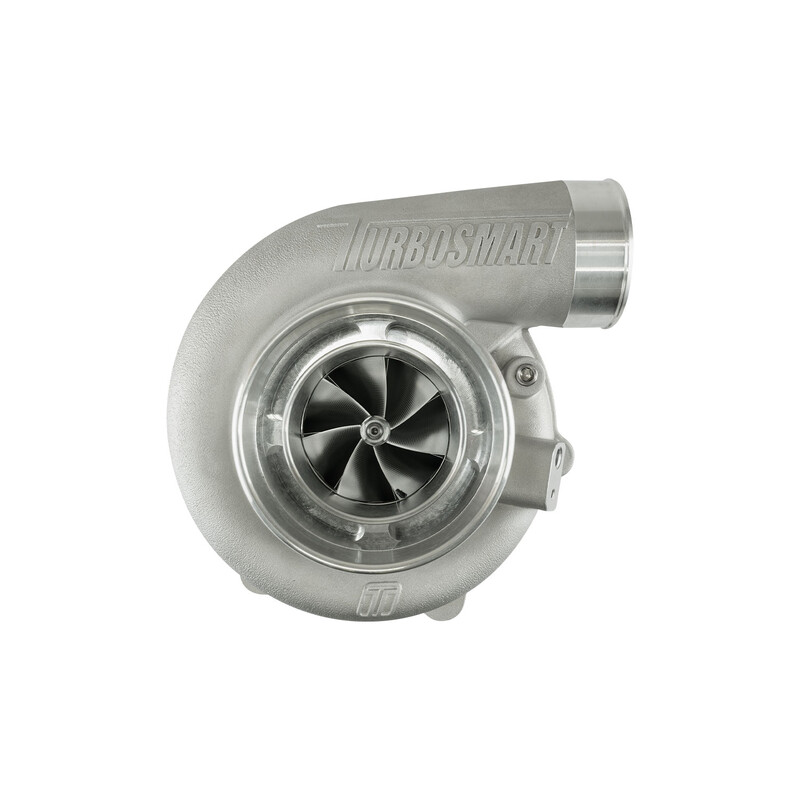

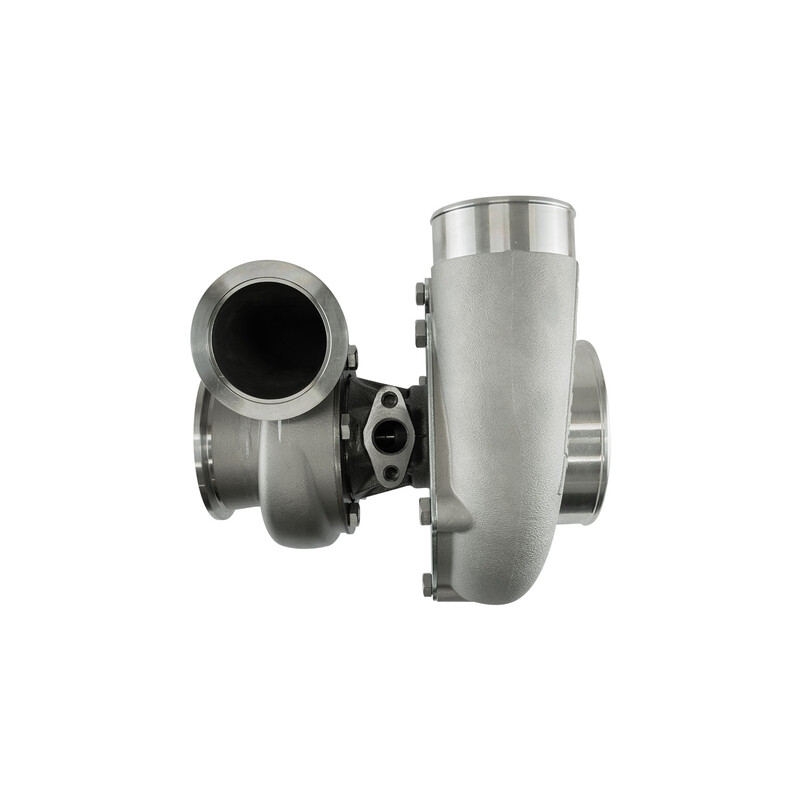

Turbosmart TS-1 Turbo
- Compressor inducer : 64 mm
- Exducer wheel : 66 mm
- Turbine AR : see below
- Compressor inlet : 4" (101.6 mm)
- Compressor outlet : 2.5" (63.5 mm)
- Turbine inlet flange : see below
- Turbine outlet flange : V-band (3")
- Oil feed : Dash 4
- Weight : 6.06 kg (13.3 lbs)
- Externally or internally wastegated
- Includes turbine inlet and outlet weld-in flanges and v-band clamps
- Made by Turbosmart in Australia!
Turbosmart TS-1 Turbocharger Specifications
Smaller, Lighter and Faster - The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.
The TS-1 series are oil cooled turbochargers with lightweight stainless steel cast turbine housings, a proprietary bearing and main shaft combination which will provide incredible transient response while offering reliability and support you’ve come to know Turbosmart for.
The ultra-low rotating mass of the unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained.
The TS-1 turbocharger series has taken a ‘whole of engine’ approach to increasing performance, aiming to achieve power through reduced back pressure and high performance turbines - while being smaller, lighter and faster in response than other solutions on the market.
Features :
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 splitter wheels
- 310S stainless steel investment cast turbine housings
- Lightweight aluminium compressor covers
- CFD driven designed housings for optimal AR’s and flow
- T14 Inconel turbine wheel for extreme temperatures
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated iron backplate on center housing
