Turbosmart "Shortie Dual Port" Dump Valve

Turbosmart Kompact Shortie Dual Port Dump Valve Specifications

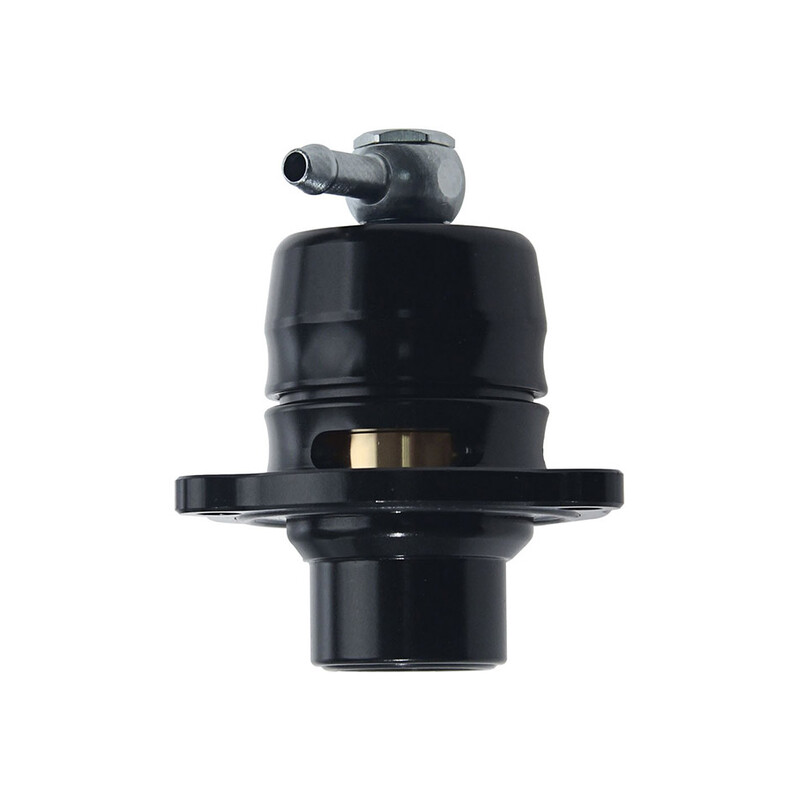

Turbosmart's Kompact Shortie Dual Port dump valve is a fixed 50/50 vented model that rejects excess pressure both outside and in the intake. It is available in two versions: one designed for BorgWarner EFR and KKK turbos, as well as the most popular engines in the Ford EcoBoost range, the other specifically suitable for the Ford Fiesta and Focus 1L engine.

This high performance product is a great replacement for the standard plastic valves with unreinforced diaphragms that are very fragile under increased boost. With its O-Ring sealed piston and billet aluminum construction, this dump valve is capable of handling more than 30 psi (2 bar) of boost.

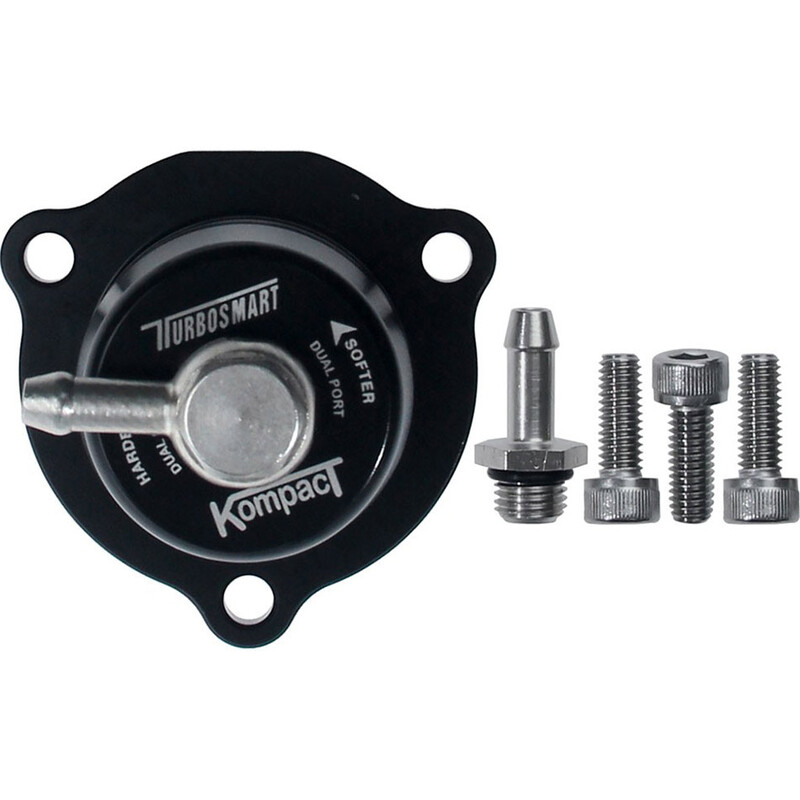

Designed as a bolt-on replacement of the factory valve on all BorgWarner EFR, KKK and most EcoBoost turbos (part number TS-0203-1061) or the valve on 1L EcoBoost turbos only (part number TS-0203-1065), it offers superior boost response and reliability to fine-tune your forced induction setup. It comes complete with the necessary fittings and hardware for installation.

Fitment List

Kompact Shortie Dual Port Borgwarner/KKK/Ford EcoBoost (P/N TS-0203-1061)

• Ford Falcon FG Ecoboost 2.0L 2012+
• Ford F150 3.5 EcoBoost 2011-2012
• Ford Focus Mk3 ST 2.0 EcoBoost 2012+
• Ford Focus Mk1 RS 2002-2003
• Ford Focus Mk2 XR5/RS/ST 2.5 5 cyl 2005-2010
• Porsche 911 GT2 (997) 2008-2012
• Porsche 911 Turbo (997) 2006-2013
• Volvo C30 T5 2007-2013
• Volvo C70 T5 2008-2013
• Volvo S40 T5 2004-2012
• Volvo S60 T5 2011+
• Volvo V50 T5 2004-2012
• Volvo V70 T5 2010

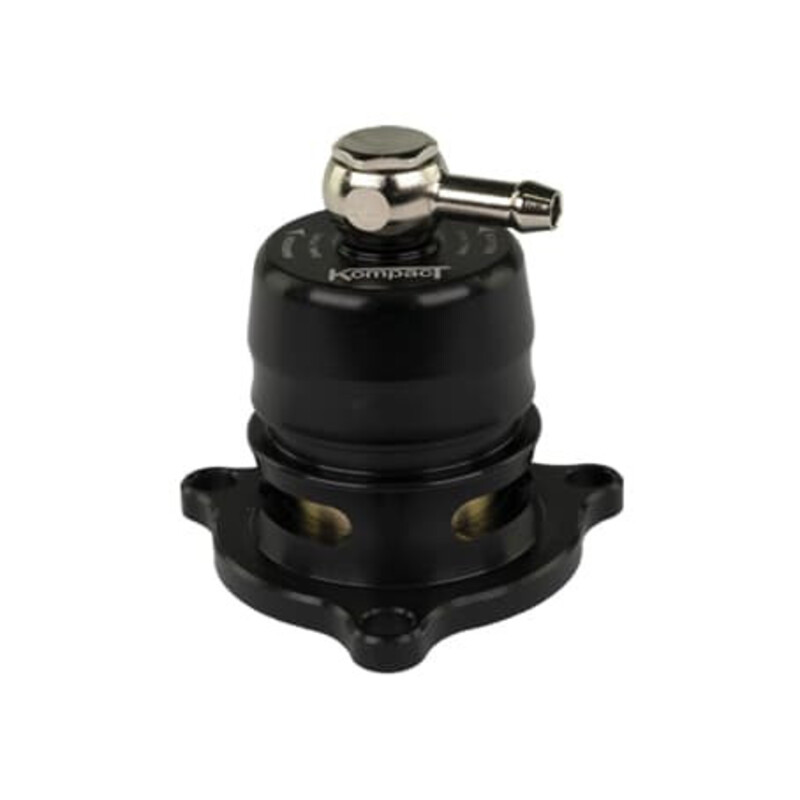

Kompact Shortie Dual Port Ford 1.0L EcoBoost (P/N TS-0203-1065)

• Ford Fiesta 1.0 EcoBoost 2013+
• Ford Focus 1.0 EcoBoost 2012+
