Turbosmart "EM Dual Port" Dump Valve

Turbosmart Kompact EM Dump Valve Specifications

Turbosmart Kompact EM (Electro-Mechanical) series dump valves build on the superior reliability of mechanical valves and incorporate the OE electronics and control strategies implemented by car manufacturers. Winners of many awards, they are the first 100% plug-and-play upgrade solution for your modern standard diverter valve: you simply unplug and unbolt your factory part, then install this one in its place. No adapters, hoses or additional modifications are required!

Turbosmart Kompact EM series takes the proven aluminium dump valve technology of motorsport and adds a proprietary on-board solenoid system and internal pressure control channels to maintain ease of use and ensure true-to-original integration and control. The Kompact EM overcomes all the shortcomings of a plastic factory valve thanks to its "Boost-Balance" technology (the more boost you have, the better it seals), its high-temperature O-ring piston seal and its reinforced construction.

Regardless of the vehicle in which it is fitted, the Kompact EM dump valve is able to withstand more boost pressure and is far more responsive. It is available in a Plumb Back version (a recirculation model that rejects excess pressure into the intake) and a Dual Port version (a fixed 50/50 vented model that rejects excess pressure both outside and in the intake). The hardware required for installation is supplied.

Fitment list

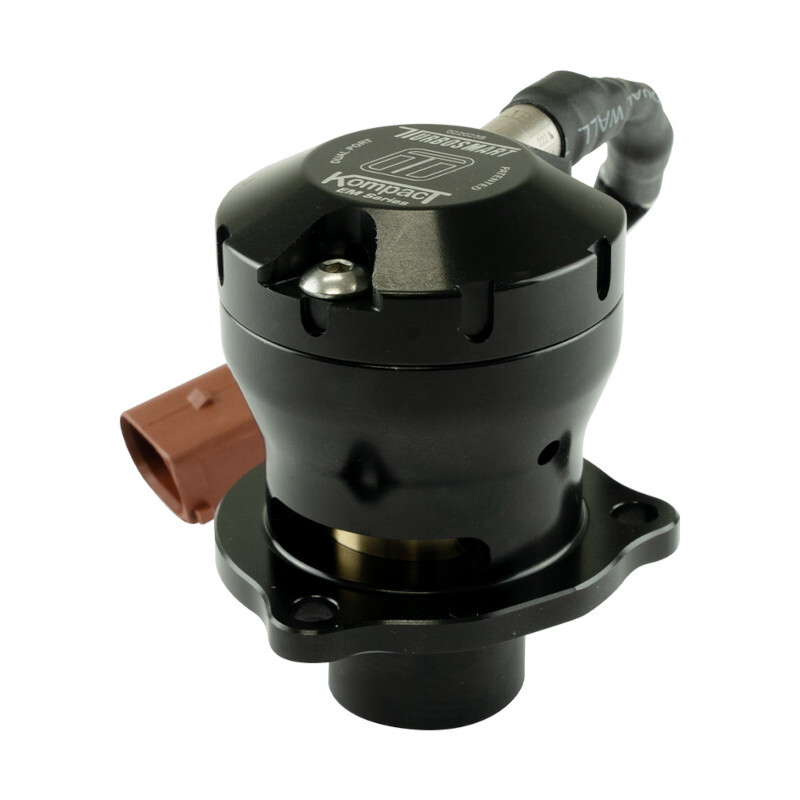

Kompact EM VR1 Dual Port (Part no. TS-0223-1063)

• Most petrol turbo VW/Audi/Seat/Skoda models (2004-present) with 1.4L/1.6L/1.7L/1.8L/2.0L/2.5L/4.0L TSI & TFSI Engines
• Volkswagen Golf Mk5/Mk5/Mk7 1.4L & 2.0L including GTI and R models, Eos/Amerok/T-Roc/Beetle/Bora/Passat/Jetta/Polo/Scirocco/Sharan/Tiguan
• Seat Leon/Cupra/Toledo/Exeo/Altea/Alahambra
• Skoda Octavia/Superb/Rapid/Yeti

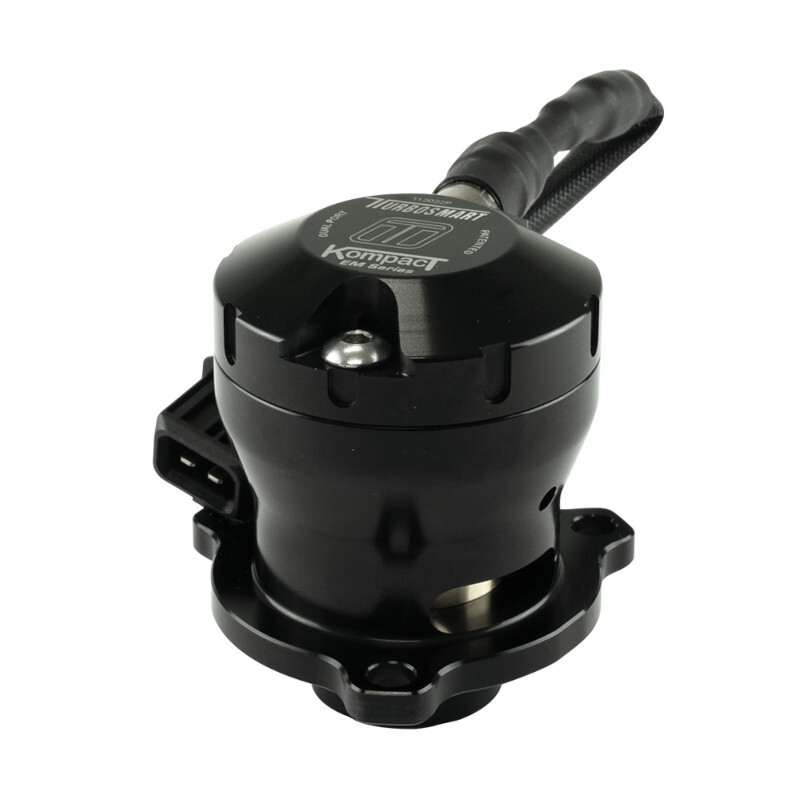

Kompact EM VR9 Dual Port (Part no. TS-0223-1092)

• Most BMW 3.0L N55 and 1.6L N13 engines
• BMW 1/2/3/4/5/6/7 series (except M2) and X3/X4 with applicable engines

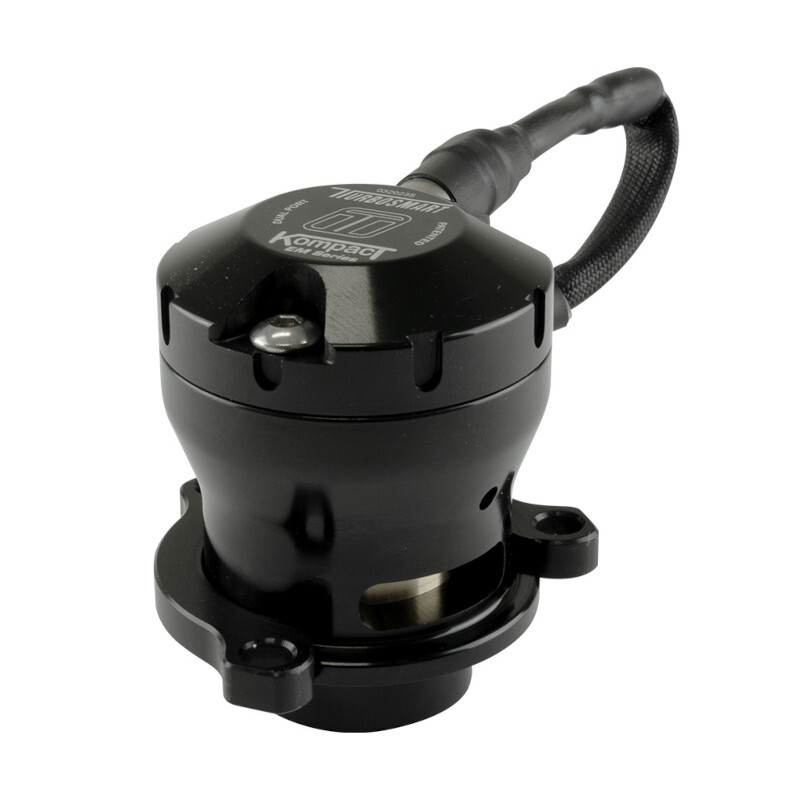

Kompact EM VR17 Dual Port (Part no. TS-0223-1077)

• Toyota GR Yaris XP210, 2016+ Lexus NX200t/NX300, IS200t/IS300, RC200t/RC300 2016 and some other Toyota and Lexus models

Kompact EM VR20 Dual Port (Part no. TS-0223-1083), two Dump Valves

• Toyota Tundra V6

Kompact EM VR22 Dual Port (Part no. TS-0223-1078)

• Ford Fiesta Mk7 ST 1.6L 4-cylinder turbo and Mk8 1.5L 3-cylinder turbo
