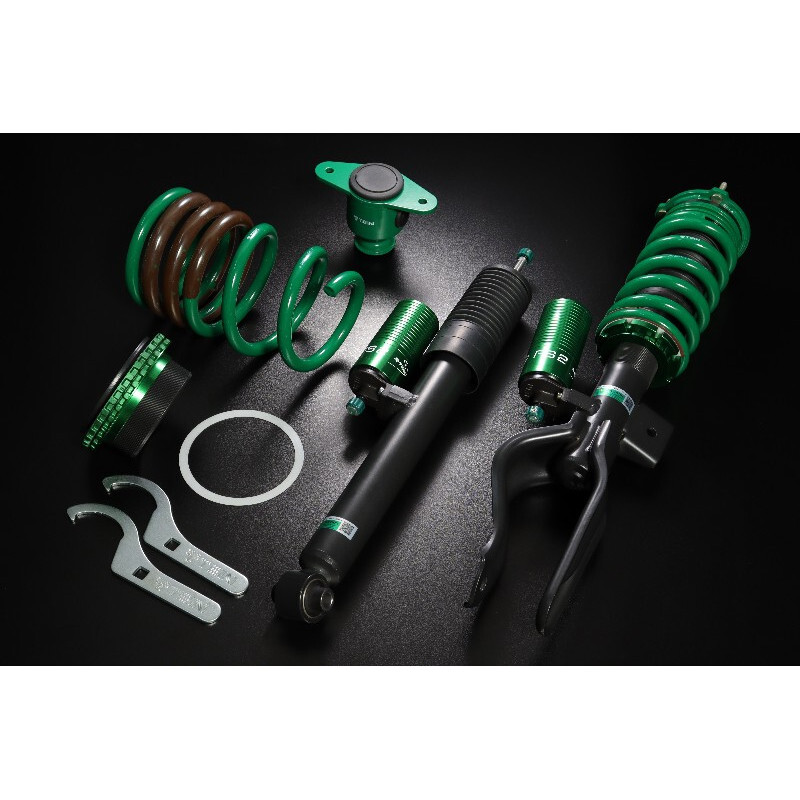

Tein FS2 Coilovers for Tesla Model Y 4WD

Tein FS2 Coilovers for Tesla Model Y 4WD

To suit : Long Range 4-wheel drive models only (2022+).

Featuring top-of-the-range technology, these new Tein FS2 coilover kits have been developed with the aim of offering a very high level of performance in terms of damping, with vast adjustment possibilities and first-rate consistency. Remarkably versatile, these Tein FS2 suspensions will win over the most demanding drivers for whom total control of the vehicle is an imperative, whatever the conditions.

Thanks to their twin-tube gas/oil design and internal hydraulic bump stoppers, they offer excellent low-speed comfort on rough street surfaces, while delivering outstanding performance and excellent precision in fast road and track driving. External oil reservoirs ensure maximum capacity, to limit the temperature rise of the shock absorbers for unfailing endurance. They also offer additional compression adjustment, accessible under the reservoir. These FS2 coilovers feature a new, more durable specific oil formulation.

• The ride height can be adjusted by moving the lower spring seat up or down
• Damping force adjustable to 16 positions (compression/relaxation simultaneously) + 16 positions (compression only)
• Height adjustment : from -11 to -63 mm (front) and -8 to -56 mm (rear)
• Spring rate : 13 kgF/mm (front) and 13 kgF/mm (rear)
• Fitment is "plug & play", no additional parts required
• Spherical bearing upper front mounts (camber adjustable for McPherson suspension)

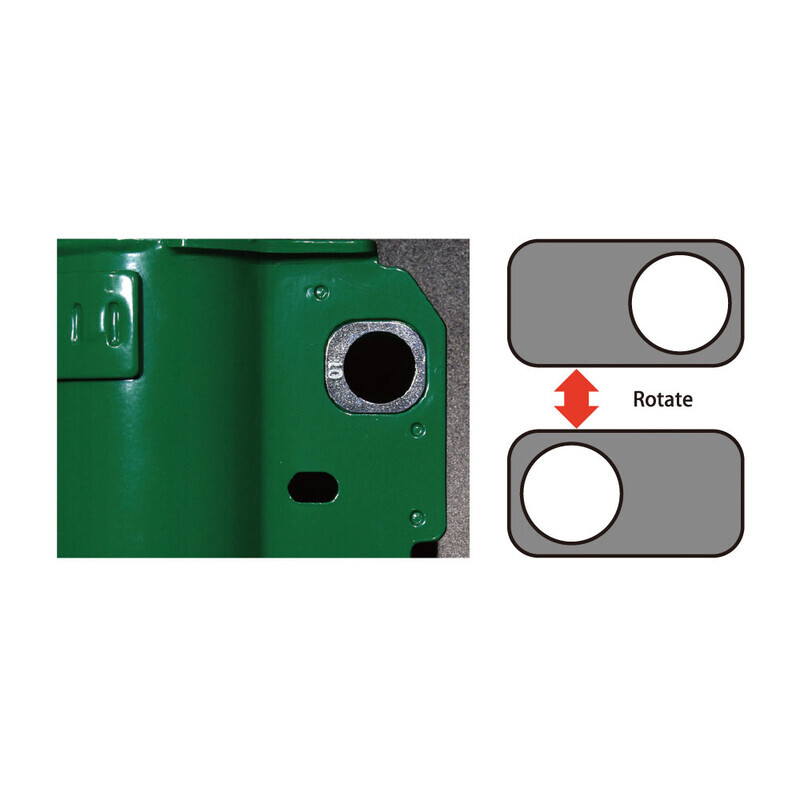

• Lower brackets with eccentric shims allow additional camber adjustment

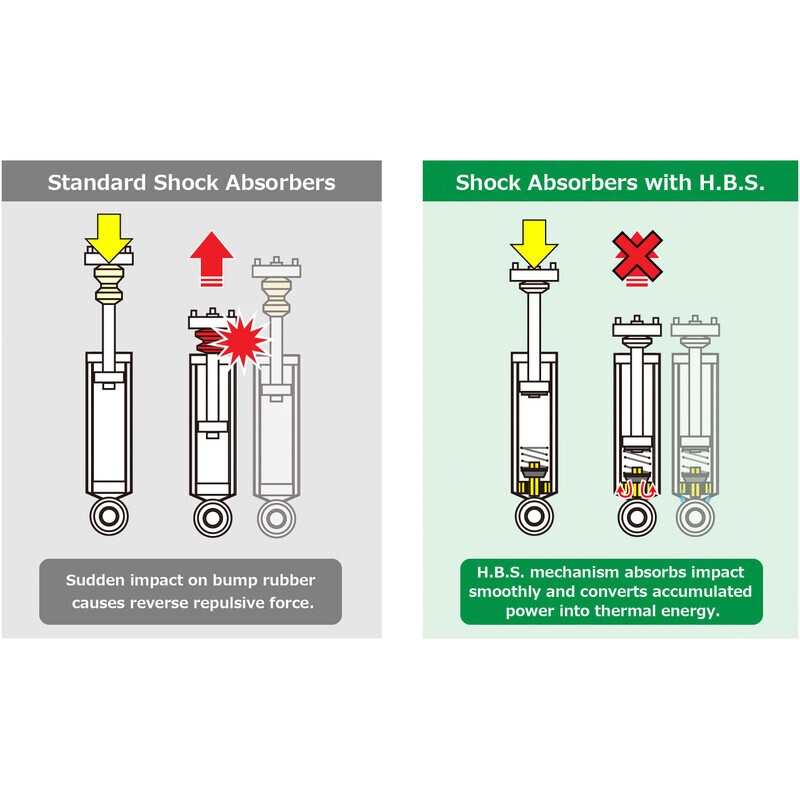

• Internal bump stoppers
• Damper overhaul is available from Tein
• Tein reference : VSGP4-N1AA3

For vehicles with McPherson suspension, these coilovers come with bearing camber adjustable upper mounts. Camber is also adjustable at the damper mounting, due to eccentric inserts.

Using Japanese manufacturing, Tein products give unparalleled quality, high reliability and a long lifetime. FS2 coilovers come with a 1 year warranty.
