Sytec Motorsport 340 L/h E85 Fuel Pump Kit - Ford Focus ST, RS, Mondeo ST, Fiesta

Sytec Motorsport 340 L/h E85 Fuel Pump Kit - Renault Clio RS 4

When tuning an engine, the original fuel pump is often unsuitable and no longer able to provide enough fuel. The consequences can be disastrous, with the worst case being engine failure from running lean.

Fuel pump kits are the first step towards increasing fuel system function and reliability. Note that by itself, a high flow fuel pump does not increase the power of your vehicle. They are used to replace a tired OE pump or when there’s a need for increased fuel flow, such as applications with increased boost pressure, larger injectors, or other changes.

Technical specifications

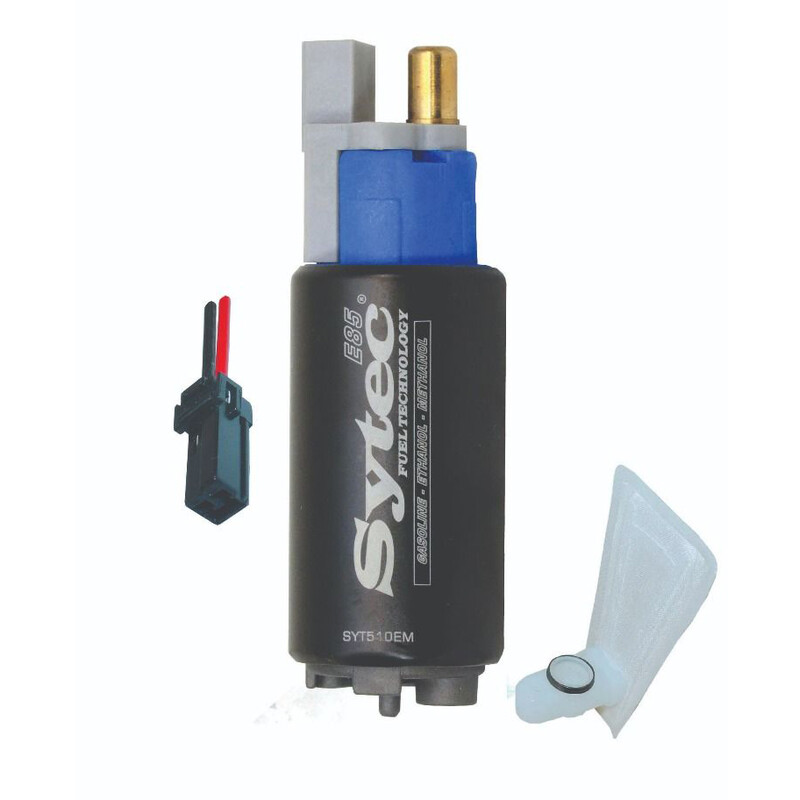

• Sytec Motorsport 340 L/h E85 fuel pump
• Inlet diameter : 11 mm
• Outlet diameter : 8 mm
• Pump reference : Sytec SYT510EM
• Voltage : 12 V
• Maximum pressure : 10.5 bar
• Maximum flow : 390 liters per hour
• Flow at 3 bar : 339 liters per hour
• Flow at 5 bar : 240 litres par heure
• Length : 115 mm
• Diameter : 38 mm
• Weight : 2766g

Fitments

• Ford Fiesta XR2i 1.6i Multi-point 94-96
• Ford Fiesta Mk3 94-97
• Ford Focus 1.4 16v SEFI 98>
• Ford Focus 1.6 16v SEFI 98>
• Ford Focus 1.8 16v SEFI 98>
• Ford Focus 2.0 16v SEFI 98>
• Ford Focus ST170 98-04
• Ford Focus RS 2.0 Mk1 2002-2003
• Ford Fusion 1.4i 02>
• Ford Fusion 1.6i 02>
• Ford KA 1.3 96-00>
• Ford Mondeo 1.6 16v Efi 93-00
• Ford Mondeo 1.8 16v Efi 93-00
• Ford Mondeo 2.0i 16v EFI 96-00
• Ford Mondeo 2.5 24v EFI / ST200 97-00
• Ford Mondeo 3.0 ST220 00-07
• Ford Transit 2.0i 95-00
