Sytec Motorsport 340 L/h E85 Fuel Pump Kit - Citroen DS3 (1.6 VTI & DS3R)

Sytec Motorsport 340 L/h E85 Fuel Pump Kit - Citroen DS3 (1.6 VTI & DS3R)

When tuning an engine, the original fuel pump is often unsuitable and no longer able to provide enough fuel. The consequences can be disastrous, with the worst case being engine failure from running lean.

Fuel pump kits are the first step towards increasing fuel system function and reliability. Note that by itself, a high flow fuel pump does not increase the power of your vehicle. They are used to replace a tired OE pump or when there’s a need for increased fuel flow, such as applications with increased boost pressure, larger injectors, or other changes.

Technical specifications

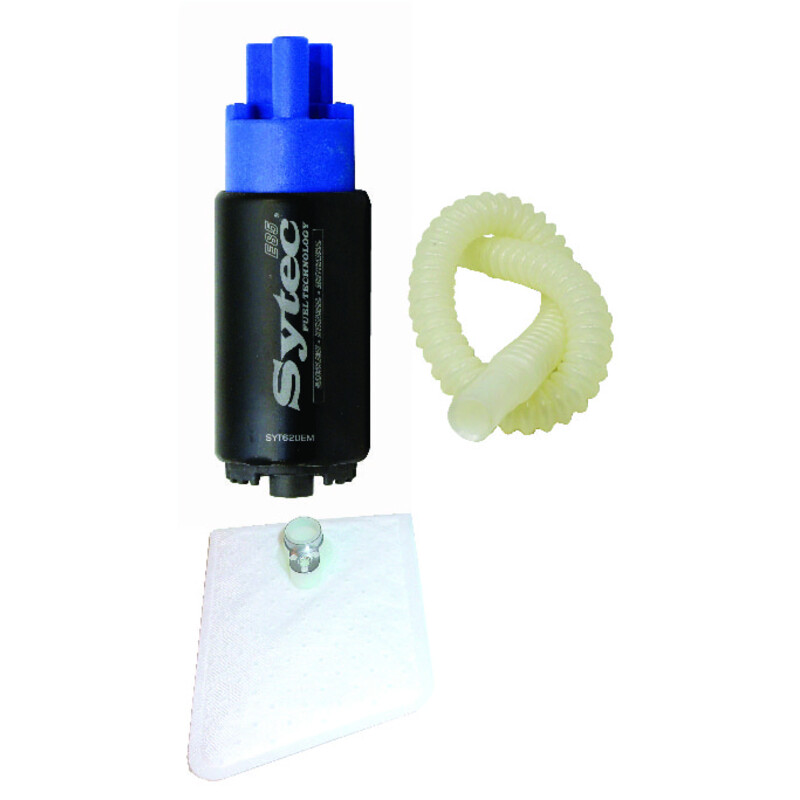

• Sytec Motorsport 340 L/h E85 fuel pump
• Inlet diameter : 11 mm
• Outlet diameter : 8 mm
• Pump reference : Sytec SYT620EM
• Voltage : 12 V
• Maximum pressure : 10.5 bar
• Maximum flow : 390 liters per hour
• Flow at 3 bar : 339 liters per hour
• Flow at 5 bar : 240 litres par heure
• Length : 113 mm
• Diameter : 38 mm
• Weight : 287g

Fitments

• Citroen DS3 1.6 VTI 120 Motorsport Upgrade, 04/10> (OEM pump part no. : TTP53603)
• Citroen DS3 1.6 Racing Motorsport Upgrade, 2009-2013 (OEM pump part no. : TTP53603)
