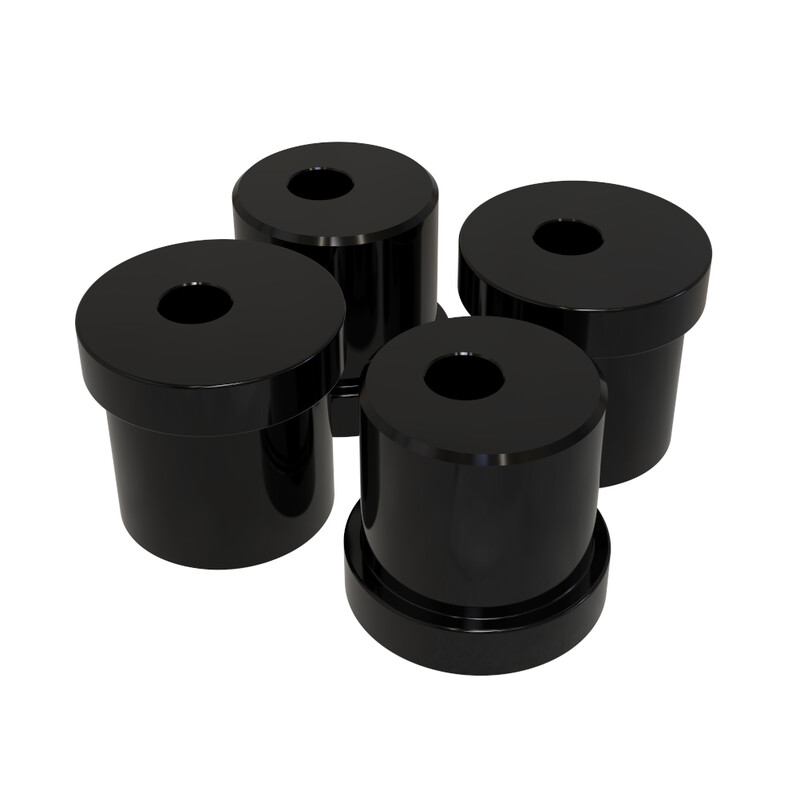

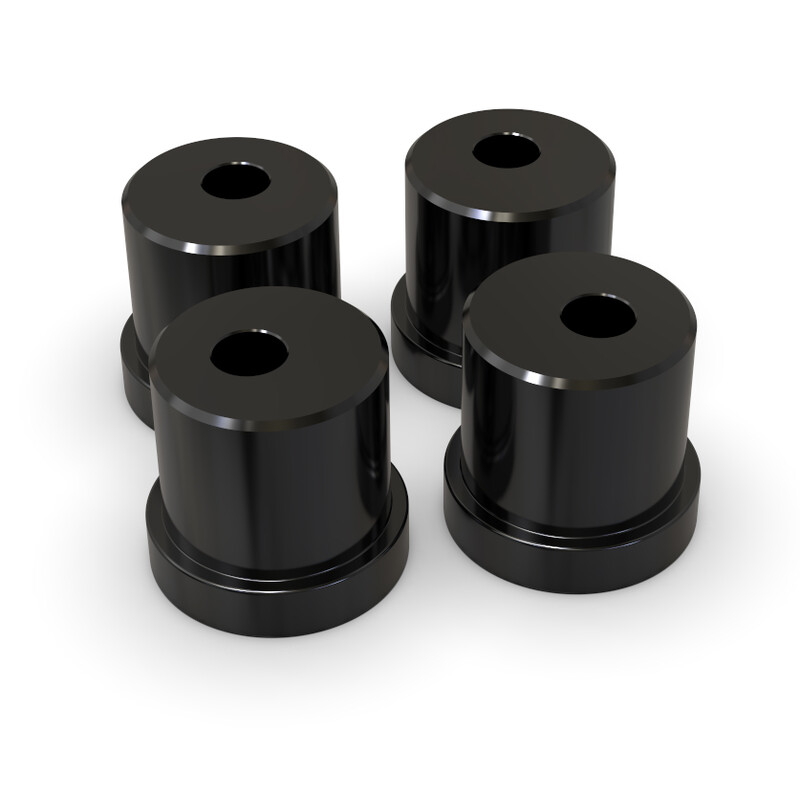

Solid Subframe Conversion Bushes for S13, R32 to S14, S15, R33, R34

Offset Solid Subframe Conversion Bushes Specification

These bushes enable installation of an S14, S15, R33 or R34 rear subframe, on to an S13 or R32. They also lift the subframe by 15 mm, ensuring better geometry with a lowered vehicle.

Why change the S13 subframe?

Later Nissan subframes, found on the S14, S15, R33 and R34, have several advantages:

• Wider track by around 20mm
• Improved anti-squat alignment, for better traction
• Deletion of HICAS where applicable

Solid rear subframe bushes replace the OEM rubber items, eliminating any movement and allowing the suspension to work optimally. Drifting/track use puts huge strain on OEM bushes, causing failure quite quickly, especially when used with an uprated/welded differential.
