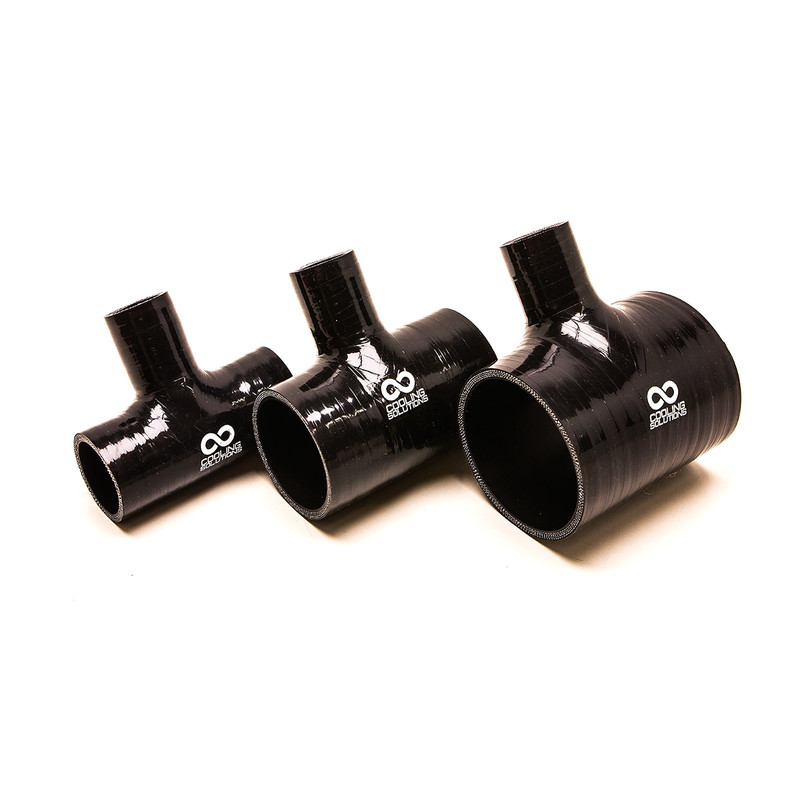

Silicone T-Piece Ø38 to Ø76 mm, Black
Silicone T-Piece
- Inner diameter from Ø38 to Ø76 mm, choose below
- Smaller diameter : 25 mm
- Length : 102 mm
- Color : black (also available in blue and red)
- Ideal for a dump valve (BOV) installation !
- High resistance to temperature, pressure and fatigue
- Manufacturer : Cooling Solutions
Ask a question about this productTechnical Specifications
Our hoses and joinders have undergone pressure resistance tests to certify their quality. Made from high-end silicone, Cooling Solutions hoses are 5 mm thick and reinforced with 4 layers of finely woven polyester. This is the highest specification on the consumer market. The table below lists the burst pressures of our hoses, according to their inner diameter (the overall outer diameter is 10 mm larger).
These values were obtained by pressure testing with ambient air, at 20°C. This burst resistance varies very little over a range of -40°C to +200°C, making Cooling Solutions hoses suitable for all uses in a highly stressed engine bay, or facing bad weather in the open air all year round.
Burst Resistance
| Inner Ø | Burst Pressure |
| 6,5 mm | 27,4 bar (392 psi) |
| 11 mm | 24,3 bar (348 psi) |
| 16 mm | 24,3 bar (348 psi) |
| 25 mm | 24,3 bar (348 psi) |
| 32 mm | 21,3 bar (305 psi) |
| 38 mm | 21,3 bar (305 psi) |
| 45 mm | 18,2 bar (261 psi) |
| 51 mm | 15,2 bar (218 psi) |
| 57 mm | 12,2 bar (174 psi) |
| 63 mm | 12,2 bar (174 psi) |
| 70 mm | 12,2 bar (174 psi) |
| 76 mm | 12,2 bar (174 psi) |
| 83 mm | 10,1 bar (145 psi) |
| 102 mm | 10,1 bar (145 psi) |
Customer Reviews 4 customer reviews
star star star star star_half
-
star star star star star75% (3)
-
star star star star star_border25% (1)
-
star star star star starProduct ordered on 01/03/2022 by Axel S.Nickel
-
star star star star starProduct ordered on 04/07/2020 by thierry l.very good quality. impressive choice
-
star star star star starProduct ordered on 08/04/2014 by guillaume p.Impec
-
star star star star star_borderProduct ordered on 14/12/2013 by Steve G.good quality but it should make several choices of the diameter of the branch because 25mm is really small with the rest of the pipe in 51 or 54 or 70 etc..
