Silicone 90° Elbow Ø6.5 to Ø152 mm, Blue

Cooling Solutions
Silicone 90° Elbow Ø6.5 to Ø152 mm, Blue
Some options are available below Please check them before adding to the cart

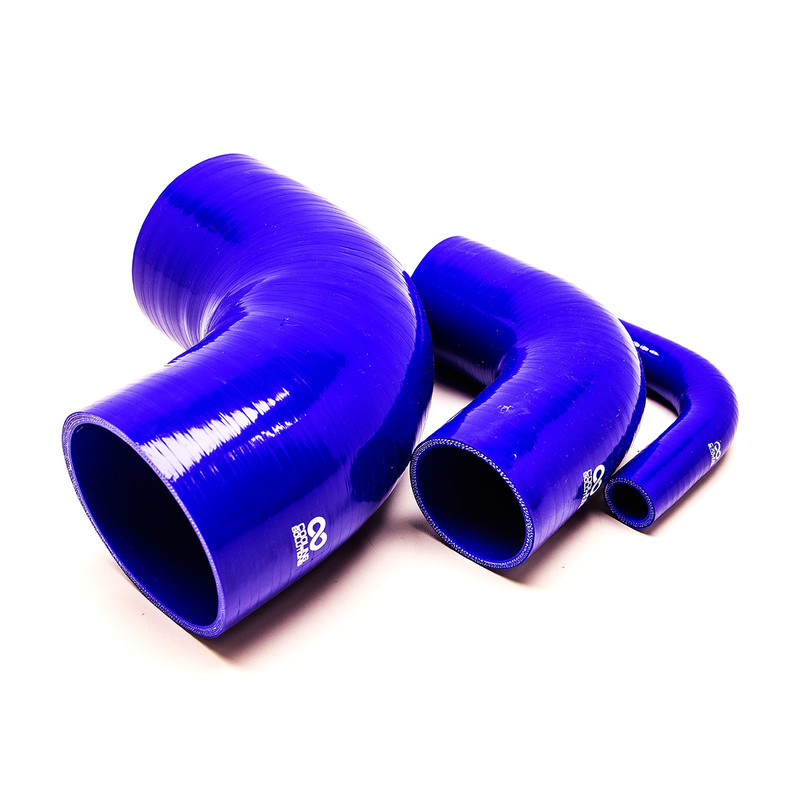

90° Silicone Elbow

  • Silicone elbow, 90° angle
  • Inner diameter from Ø6.5 to Ø152 mm, choose below
  • Length : from 102x102 to 178x178 mm
  • Color : blue (also available in black and red)
  • High resistance to temperature, pressure and fatigue
  • Manufacturer : Cooling Solutions
Ask a question about this product
  • Your choice *Please fill in this field.
€0.00

Technical Specifications

Our hoses and joinders have undergone pressure resistance tests to certify their quality. Made from high-end silicone, Cooling Solutions hoses are 5 mm thick and reinforced with 4 layers of finely woven polyester. This is the highest specification on the consumer market. The table below lists the burst pressures of our hoses, according to their inner diameter (the overall outer diameter is 10 mm larger).

These values ​​were obtained by pressure testing with ambient air, at 20°C. This burst resistance varies very little over a range of -40°C to +200°C, making Cooling Solutions hoses suitable for all uses in a highly stressed engine bay, or facing bad weather in the open air all year round.

Burst Resistance

Inner Ø Burst Pressure
6,5 mm 27,4 bar (392 psi)
11 mm 24,3 bar (348 psi)
16 mm 24,3 bar (348 psi)
25 mm 24,3 bar (348 psi)
32 mm 21,3 bar (305 psi)
38 mm 21,3 bar (305 psi)
45 mm 18,2 bar (261 psi)
51 mm 15,2 bar (218 psi)
57 mm 12,2 bar (174 psi)
63 mm 12,2 bar (174 psi)
70 mm 12,2 bar (174 psi)
76 mm 12,2 bar (174 psi)
83 mm 10,1 bar (145 psi)
102 mm 10,1 bar (145 psi)
