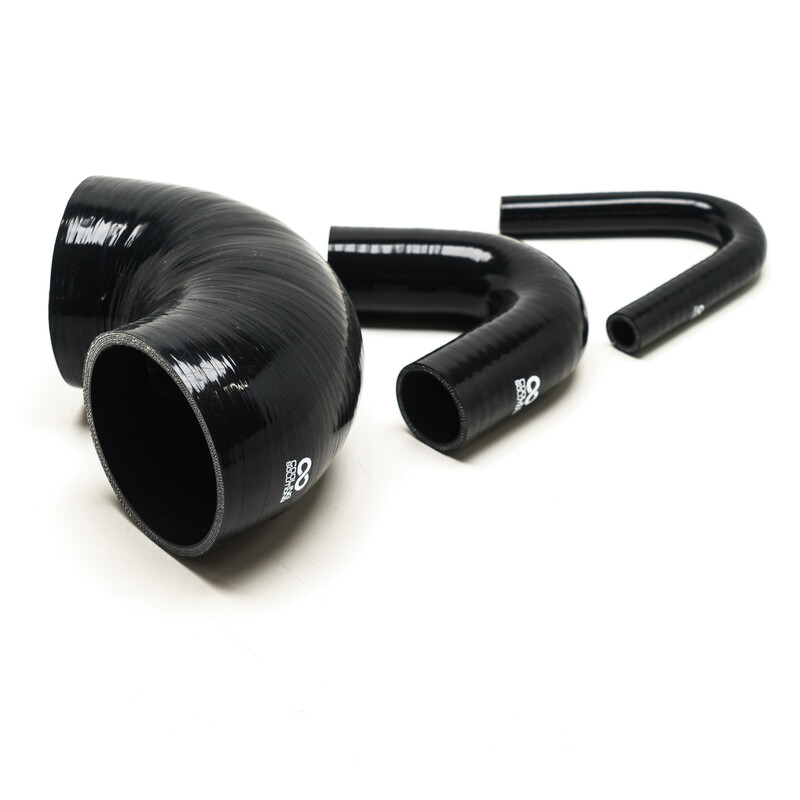

Silicone 135° Elbow Ø16 to Ø102 mm, Black
135° Silicone Elbow
- Silicone elbow, 135° angle
- Inner diameter from Ø16 to Ø102 mm, choose below
- Length : 187x187 mm overall
- Color : black (also available in red and blue)
- High resistance to temperature, pressure and fatigue
- Manufacturer : Cooling Solutions
Ask a question about this productTechnical Specifications
Our hoses and joinders have undergone pressure resistance tests to certify their quality. Made from high-end silicone, Cooling Solutions hoses are 5 mm thick and reinforced with 4 layers of finely woven polyester. This is the highest specification on the consumer market. The table below lists the burst pressures of our hoses, according to their inner diameter (the overall outer diameter is 10 mm larger).
These values were obtained by pressure testing with ambient air, at 20°C. This burst resistance varies very little over a range of -40°C to +200°C, making Cooling Solutions hoses suitable for all uses in a highly stressed engine bay, or facing bad weather in the open air all year round.
Burst Resistance
| Inner Ø | Burst Pressure |
| 6,5 mm | 27,4 bar (392 psi) |
| 11 mm | 24,3 bar (348 psi) |
| 16 mm | 24,3 bar (348 psi) |
| 25 mm | 24,3 bar (348 psi) |
| 32 mm | 21,3 bar (305 psi) |
| 38 mm | 21,3 bar (305 psi) |
| 45 mm | 18,2 bar (261 psi) |
| 51 mm | 15,2 bar (218 psi) |
| 57 mm | 12,2 bar (174 psi) |
| 63 mm | 12,2 bar (174 psi) |
| 70 mm | 12,2 bar (174 psi) |
| 76 mm | 12,2 bar (174 psi) |
| 83 mm | 10,1 bar (145 psi) |
| 102 mm | 10,1 bar (145 psi) |
