Setrab 9-Series Oil Coolers
Setrab 9-Series Oil Cooler
- For competitive use
- Long length range
- Made from aluminium
- Operating pressure: from 0 to 12 bar
- Operating temperature: -40 to 150°C
- Available in 10 to 34 row models
- Optional adapters for mounting
- Original Setrab quality
Ask a question about this productSetrab 9-Series Oil Cooler Specifications

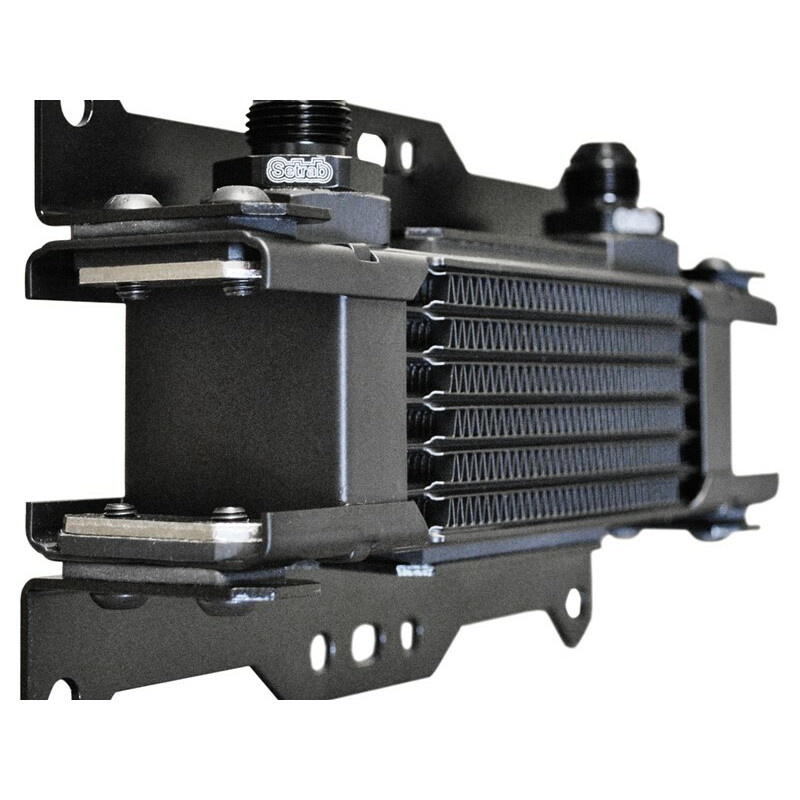

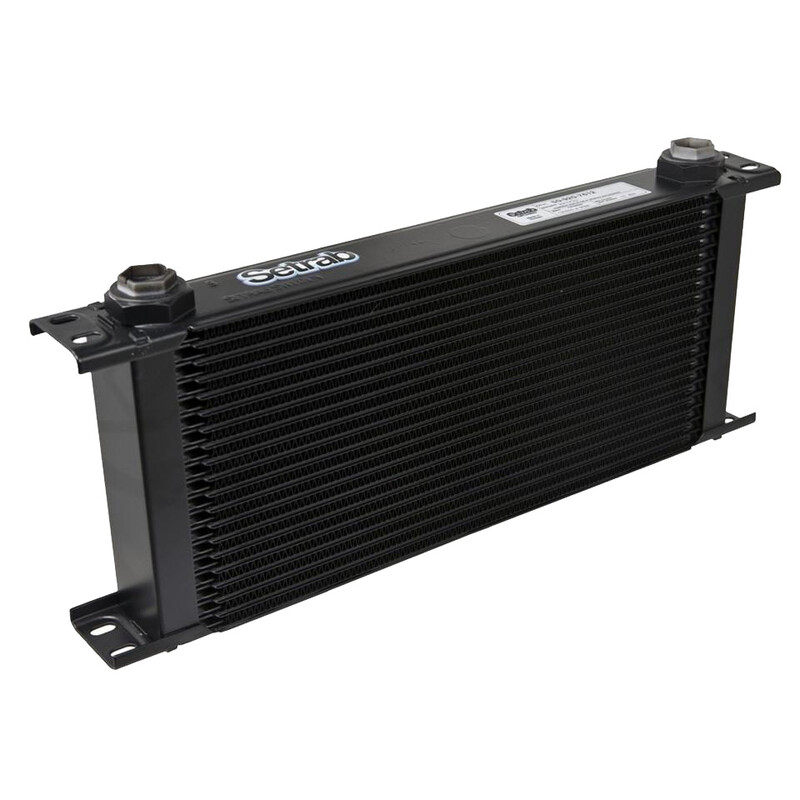

Setrab, the world's leading manufacturer of oil coolers for motorsport, offers these Series 9 models ideal for custom configurations and suitable for cooling any type of automotive fluid: engine oil, gearbox oil, clutch fluid, brake fluid, power steering oil ...
Made from aluminum alloy and assembled by brazing, these products have a proven robustness in motorsport guaranteeing the mechanic as well as the driver, first-rate performance and reliability. These Series 9 oil coolers are characterized by their long length (405 mm), are developed to operate at dynamic pressures between 0 and 12 bar, and withstand temperatures ranging from -40°C to 150°C.
Models available
- STD 910 (10 row) : 50 x 405 x 76 mm (depth x length x height)
- STD 913 (13 row) : 50 x 405 x 99 mm (depth x length x height)
- STD 915 (15 row) : 50 x 405 x 115 mm (depth x length x height)
- STD 919 (19 row) : 50 x 405 x 146 mm (depth x length x height)
- STD 925 (25 row) : 50 x 405 x 193 mm (depth x length x height)
- STD 934 (34 row) : 50 x 405 x 264 mm (depth x length x height)
The Series 9 coolers have an M22 female thread on the top that can accommodate optional adapters for quick assembly whatever your configuration: Dash 6, Dash 8, Dash 10, Dash 12, Dash 16, 3/8" BSP, 1/2" BSP, 5/8" BSP, 3/4" BSP, M14 female, M16 female, M18 female.
Characteristics
