Setrab 1-Series Oil Coolers

Setrab 1-Series Oil Cooler Specifications

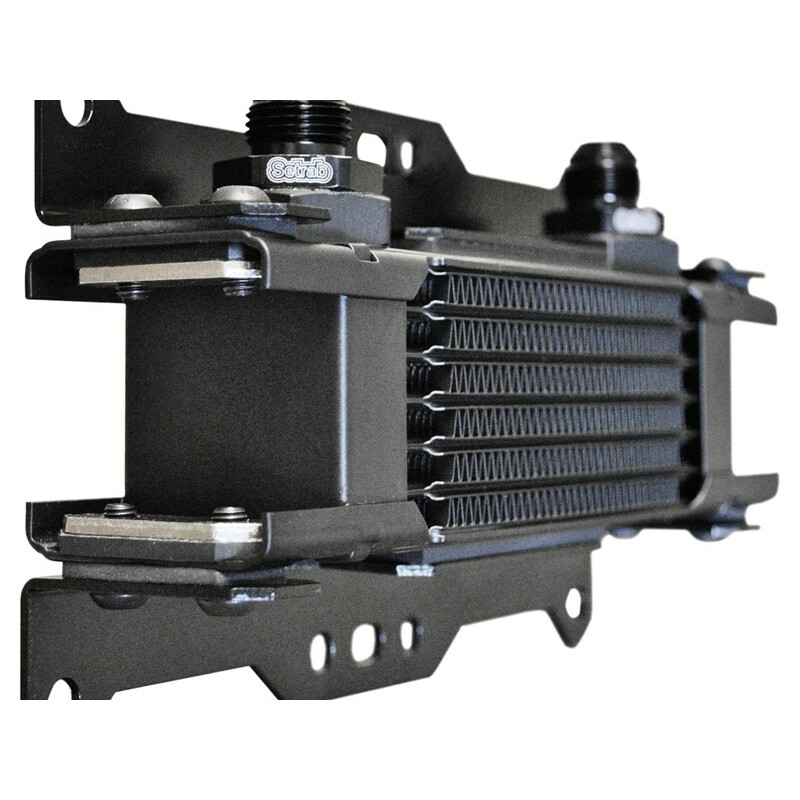

Setrab, the world's leading manufacturer of oil coolers for motorsport, offers these Series 1 models ideal for custom configurations and suitable for cooling any type of automotive fluid: engine oil, gearbox oil, clutch fluid, brake fluid, power steering oil ...

Made from aluminum alloy and assembled by brazing, these products have a proven robustness in motorsport guaranteeing the mechanic as well as the driver, first-rate performance and reliability. These Series 1 oil coolers are characterized by their short length (210 mm), are developed to operate at dynamic pressures between 0 and 12 bar, and withstand temperatures ranging from -40°C to 150°C.

Models available

• STD 107 (7 row) : 50 x 210 x 52 mm (depth x length x height)
• STD 110 (10 row) : 50 x 210 x 76 mm (depth x length x height)
• STD 113 (13 row) : 50 x 210 x 99 mm (depth x length x height)
• STD 116 (16 row) : 50 x 210 x 122 mm (depth x length x height)
• STD 119 (19 row) : 50 x 210 x 146 mm (depth x length x height)
• STD 125 (25 row) : 50 x 210 x 193 mm (depth x length x height)
• STD 150 (50 row) : 50 x 210 x 389 mm (depth x length x height)

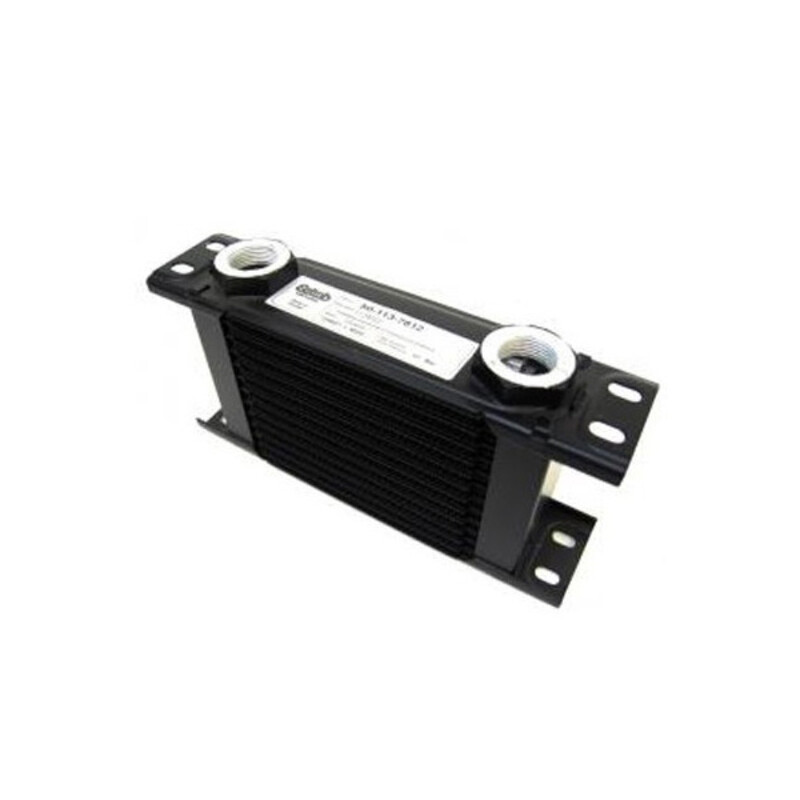

The Series 1 coolers have an M22 female thread on the top that can accommodate optional adapters for quick assembly whatever your configuration: Dash 6, Dash 8, Dash 10, Dash 12, Dash 16, 3/8" BSP, 1/2" BSP, 5/8" BSP, 3/4" BSP, M14 female, M16 female, M18 female.
