RSeat G1-3000 D-Box Haptic Simulator

RSeat G1 3000 D-BOX 4250i G3 Haptic Simulator Specifications

RSeat, the European specialist in high-end simracing equipment, has teamed up with D-BOX, the haptic feedback leader in the entertainment industry, to bring you this state-of-the-art G1 3000 simulator. This system allows you to experience the sensations as they would be felt by your body in the real world, thanks to a unique presence effect.

Plug and play, simple to set up and use, the D-BOX 4250i Gen3 package and its 4 actuators provide unparalleled haptic feedback with a huge amount of detail and information. It is extremely versatile and can be adapted to a multitude of motorsport disciplines: GT, rally, F1...

Providing maximum realism and responsiveness, D-BOX's haptic solutions are currently the only ones to be FIA licensed. They provide a highly accurate feel for movement, tilt, oscillation, vibration, texture, and many other complex phenomena.

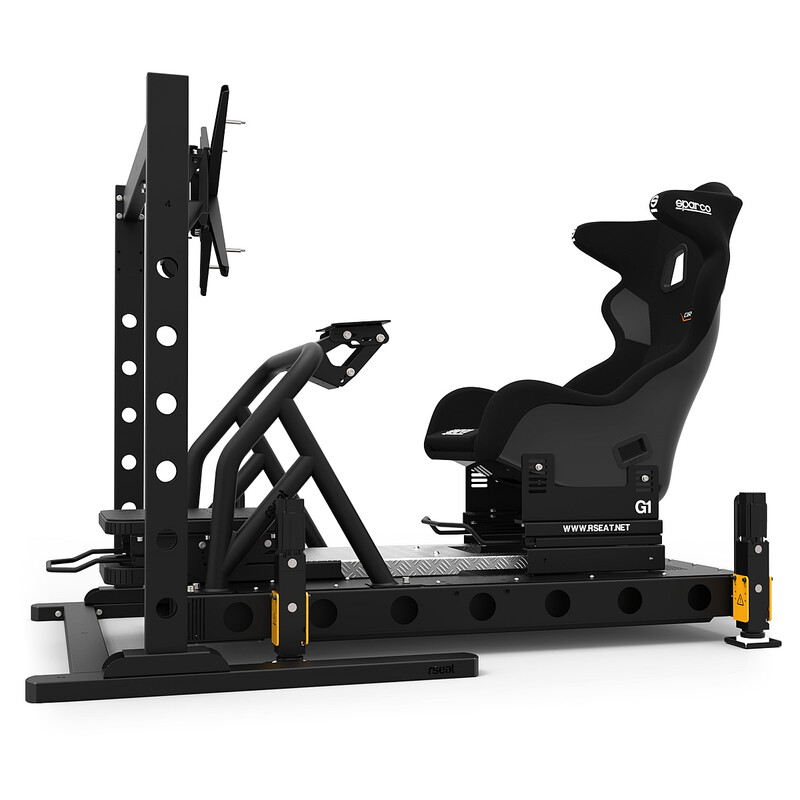

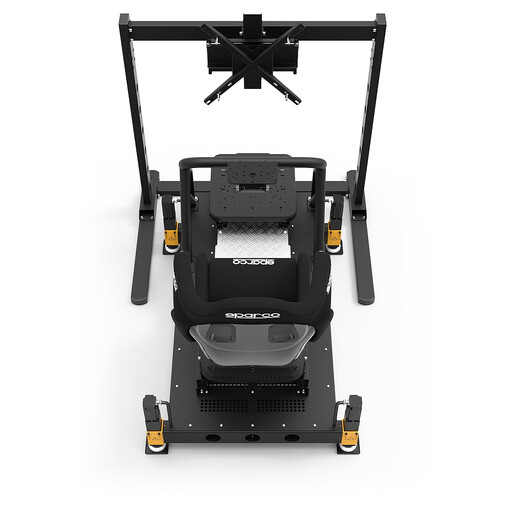

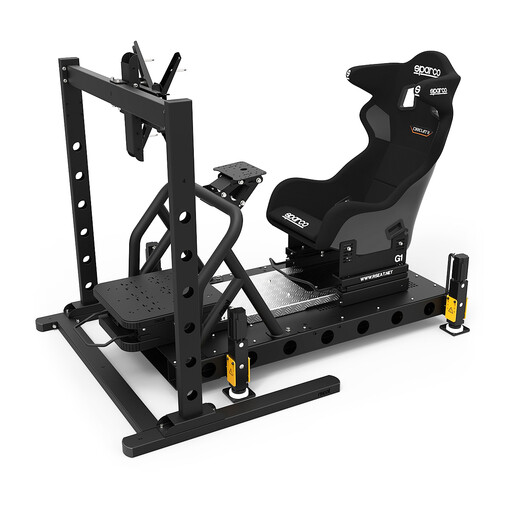

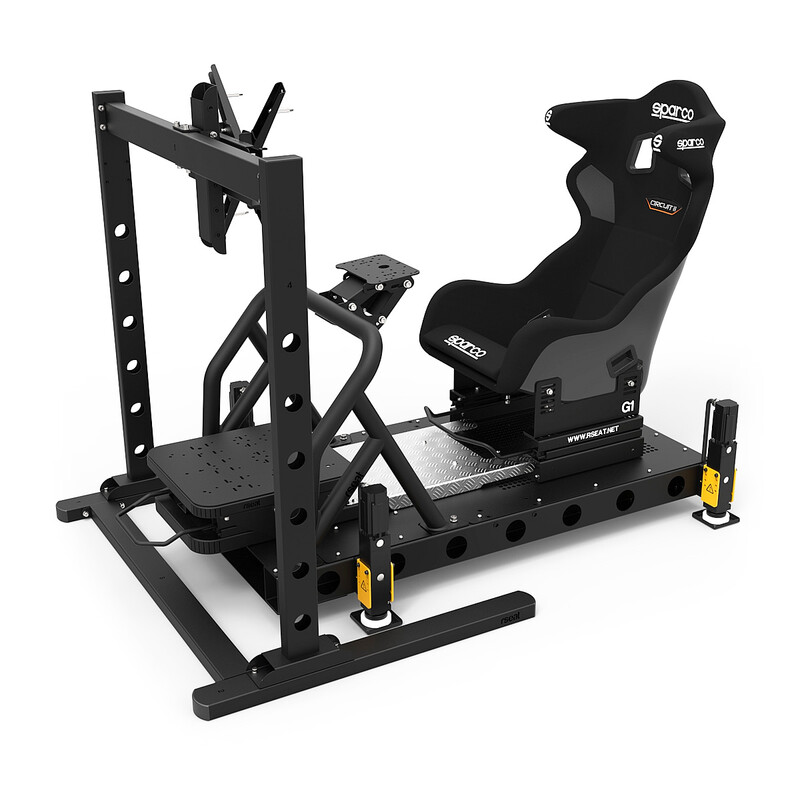

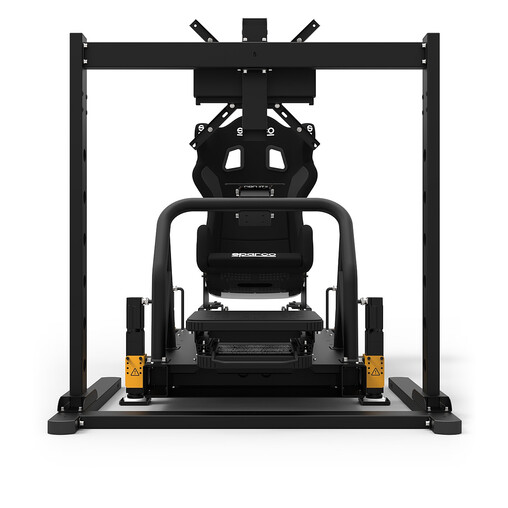

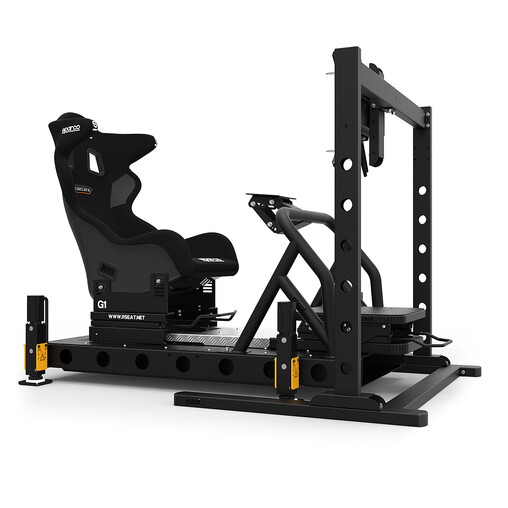

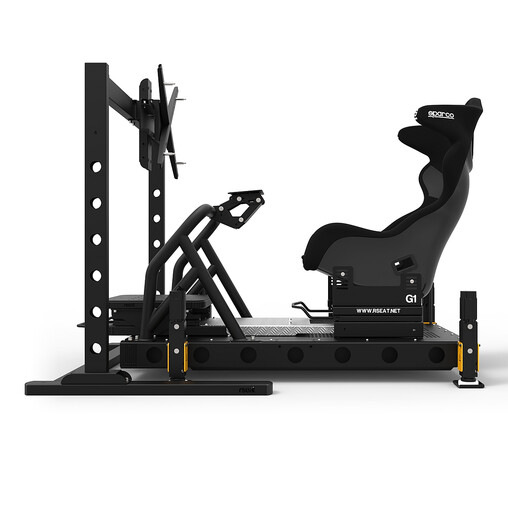

This technology is integrated into an extremely rigid RSeat G1 cockpit offering a GT and rally style driving position. It comes with an RSeat bucket seat in black eco-leather (Alcantara version available as an option), and is suitable for users from 1.27m to over 2m.

The cockpit is very sturdy and can withstand the torque of a Direct Drive wheel and maximum braking forces from hydraulic or load cell pedals. In addition, it has a wide range of adjustments including sliders to adjust the seat and pedals.

Everything needed to install the cockpit is included. All tools and hardware to attach your steering wheel and pedals are also provided.

Please note: This simulator is sold without monitor stand (products only available as options).

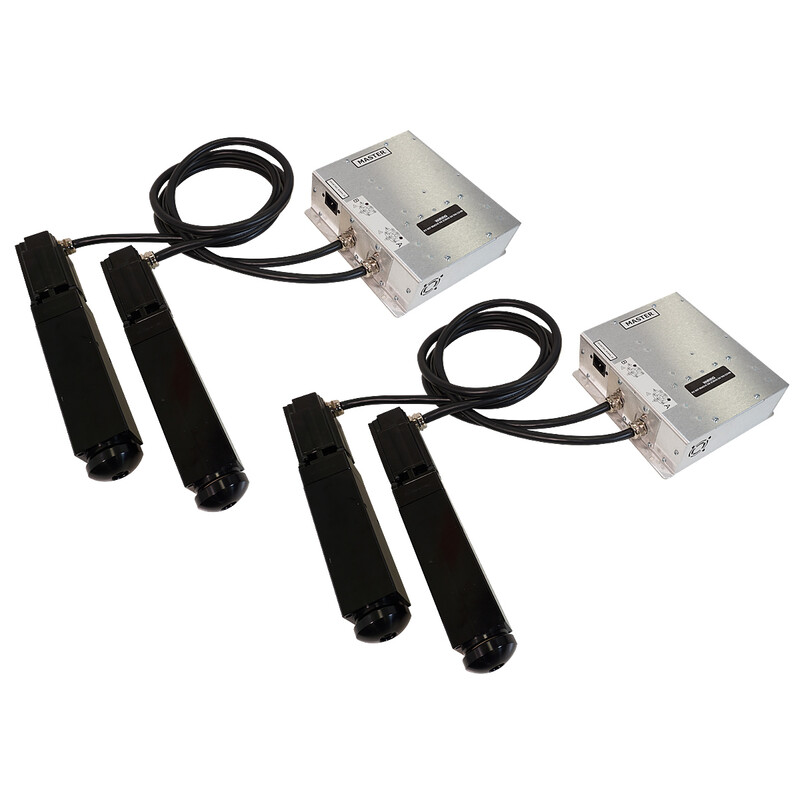

Features of the D-BOX 4250i Gen3 Haptic System 3-inch

• ACM control boxes 110V / 230V
• KCU controller
• 4 actuators with 3" (76.2mm) stroke
• Load: 114kg (250lbs) per actuator
• Maximum velocity: ± 100mm/second
• D-BOX software for Windows PC

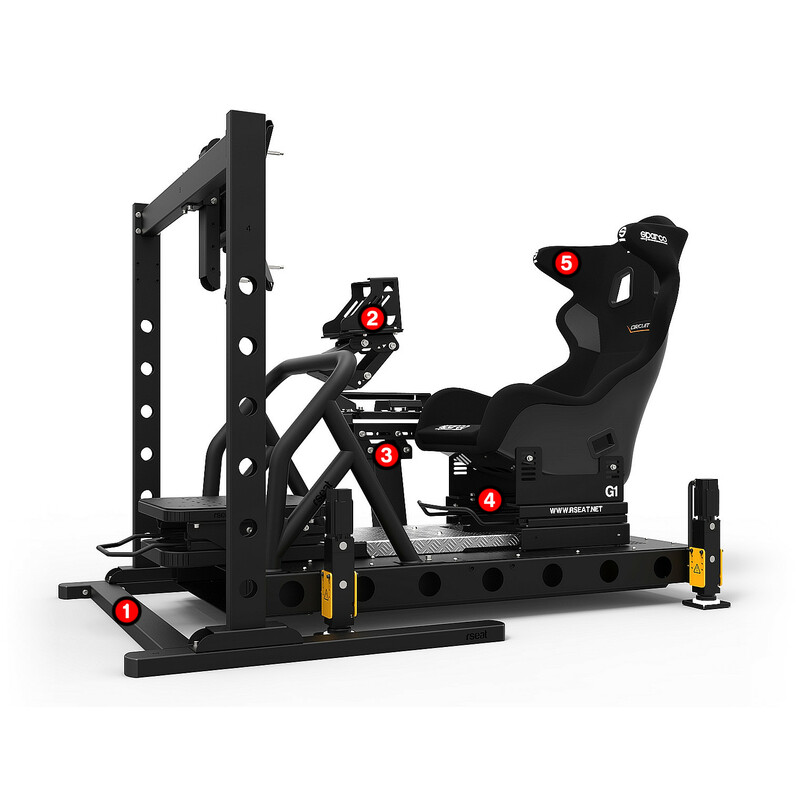

Details of optional equipment and accessories

• TV stand SX90 (1) | Single screen stand | For ultra-wide monitors from 27 to 90 inches | VESA compatible 100x100, 100x200, 200x100, 200x200, 300x200, 300x300, 400x300, 400x400 | Height adjustable | Dimensions: 110 x 65 x 35cm | Weight : 29kg
• TV stand TX40 (1) | Triple screen stand | For ultra-wide monitors from 27 to 40 inches | VESA compatible 100x100, 100x200, 200x100, 200x200 | Height adjustable | Dimensions: 110 x 65 x 35cm | Weight: 49kg
• TV stand TX60 (1) | Triple screen stand | For ultra-wide monitors from 43 to 60 inches | VESA compatible 100x100, 100x200, 200x100, 200x200, 300x200, 300x300, 400x300, 400x400 | Height adjustable | Dimensions: 110 x 65 x 35cm | Weight: 70kg
• TV stand TX90 (1) | Triple screen stand | For ultra-wide monitors from 65 to 90 inches | VESA compatible 200x200, 300x200, 300x300, 400x300, 400x400 | Height adjustable | Dimensions: 110 x 65 x 35cm | Weight: 92kg
• Simucube stand (2) | Compatible with Simucube1, Simucube2 Sport / Pro / Ultimate, VRS DirectForce Pro, Mige motor and more | Weight: 3.5kg
• Handbrake and shifter mount (3) | Handbrake angle and position adjustable | Tilt and height adjustment | Install on the left or right side of the frame | Weight: 12kg
• ButtKicker support (4) | Slides with seat | Compatible with all ButtKicker models | Weight: 3kg
• Alcantara RSeat or Sparco bucket seat (5)
