NP Parts Racing 3 Pedal Box (Floor Mount)
NP Parts Racing Pedal Box
- High quality floot mount racing 3-pedal box
- Universal fitment
- Extremely strong, rigid and lightweight
- Made from forged aluminium
- Compact size
- Pedals mounted on bearings and ball joints
- Double adjustable rudder
- Black anodized finish
- Supplied without master cylinders
- Supplied without sensor, Bosch reference 0280122001
Ask a question about this productNP Parts Floor Mount Racing 3-Pedal Box

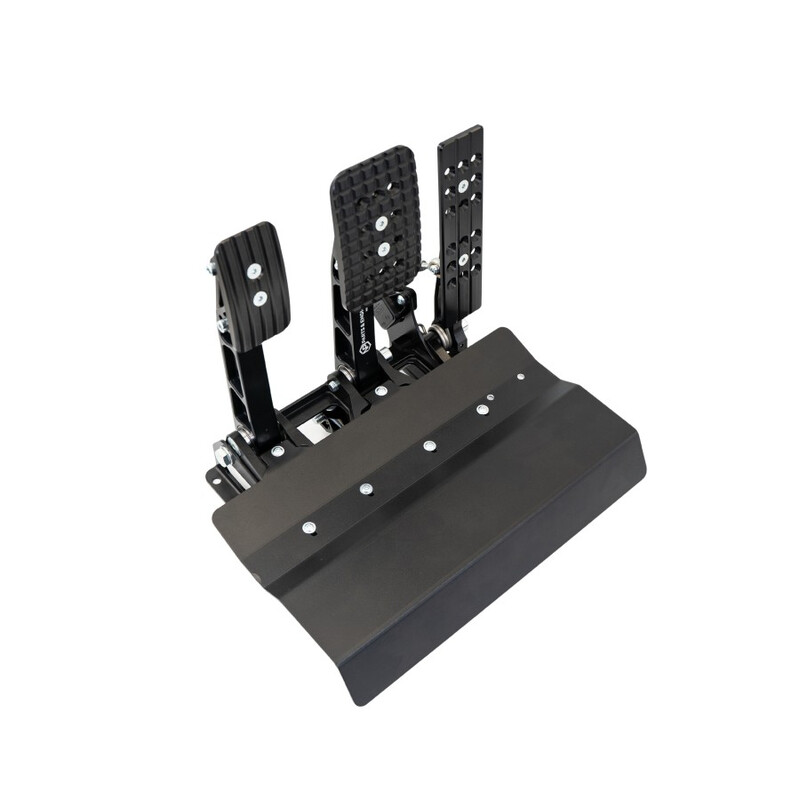

Fully CNC machined and manufactured in Europe by NP Parts, this racing pedalbox is made of aviation grade forged aluminum. Extremely strong, rigid and lightweight, it will be perfect for intensive use (endurance racing, drifting, rally, hillclimb, etc.) and will find its place in all cockpits thanks to its compact design.

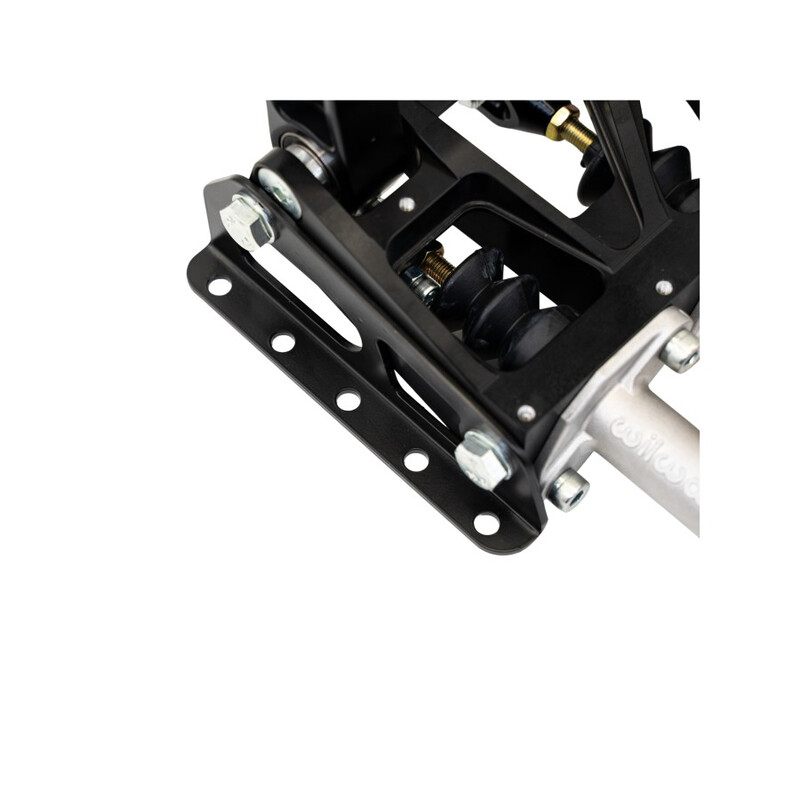

This 3-pedal box is delivered with its aluminum protection plate, under which the master cylinders will be installed in inverted position. The driver's feet thus rest only 54 mm from the floor. Each pedal has an adjustable stopper and is mounted on bearings. The yokes accommodating the rods of the master cylinders have a 5/16" UNF thread, and are mounted on high quality ball joints. The brake pedal has a double adjustable rudder bar.
Warning: compatible with 5/16" UNF stem master cylinders, not supplied. We offer a whole range of Wilwood, AP Racing and other brands master cylinders : check out the Master Cylinders section.
Characteristics
| Manufacturer | NP Parts |
|---|
