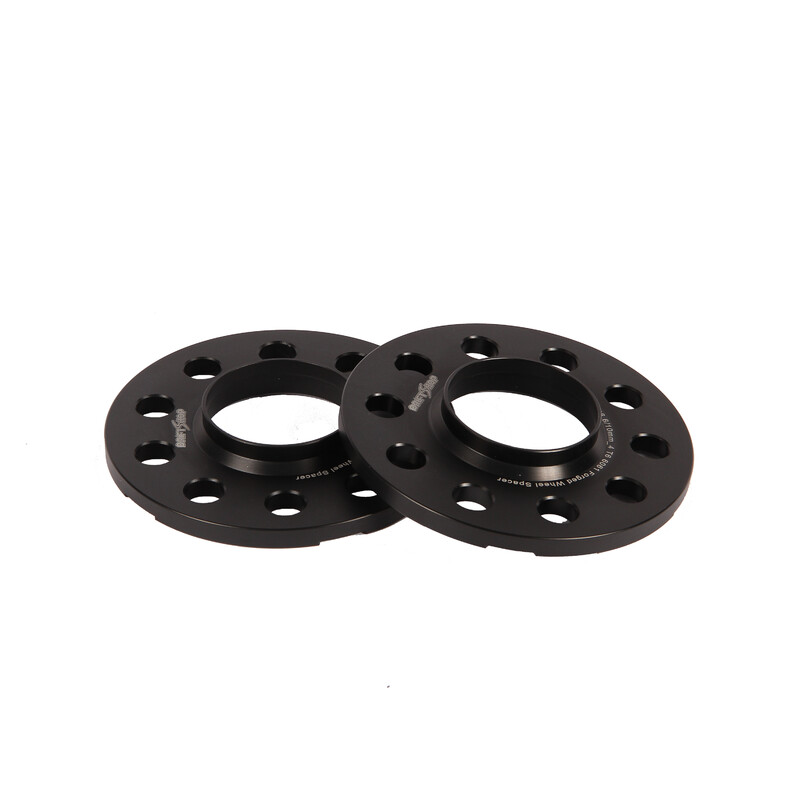

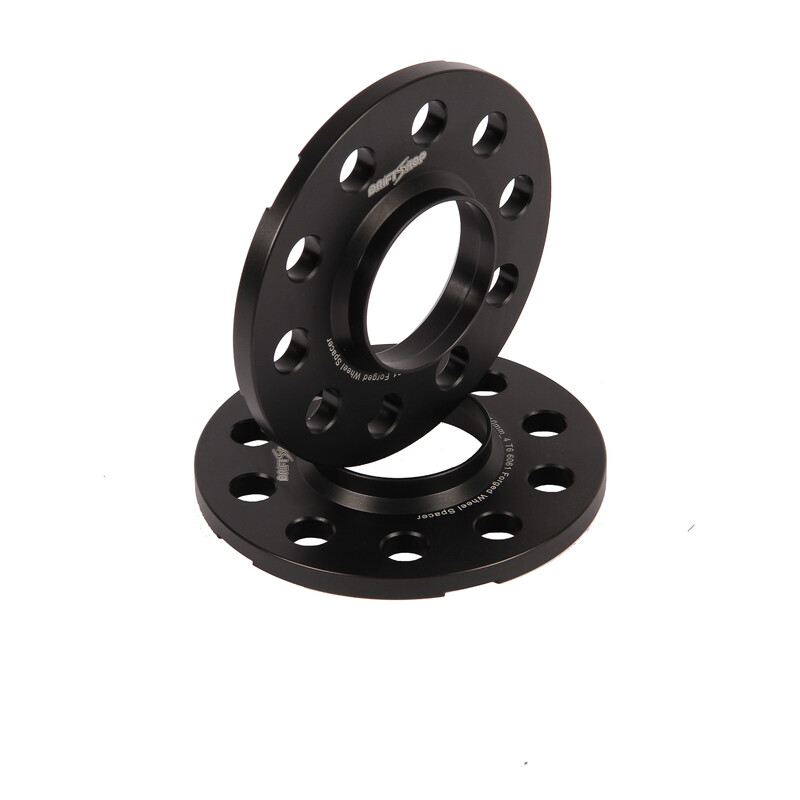

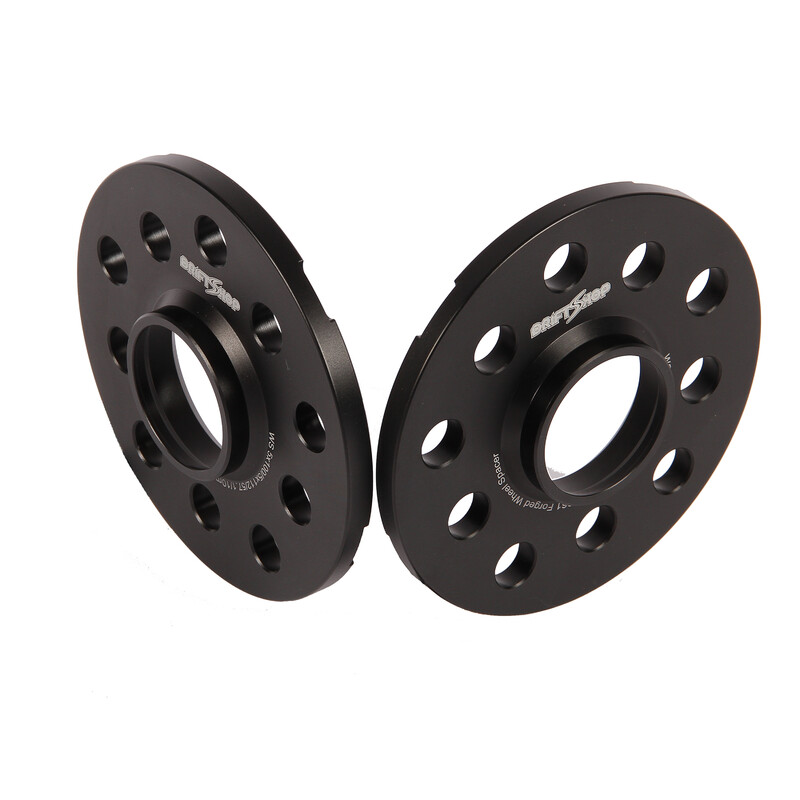

Mercedes 5x112 Hubcentric "Slip On" Wheel Spacers - 12.5 mm (CB 66.6)

Technical Note

These 12.5 mm thick wheel spacers require special attention to guarantee their installation. For technical reasons, they cannot be installed on vehicles where the hub height exceeds 10 mm. If in doubt, take the time to double check on your vehicle (see example diagram on the left) !

How to choose the correct bolts for my car ?

Attention : when using these spacers, longer bolts are required (see options above). For your safety, do not use original wheel bolts ! To choose the right bolts for your application, three parameters must be considered:

• Thread: this refers to the diameter (M12, M14) and the pitch of the bolt (1.25, 1.50). Find your vehicle in the list of applications below to check the thread size you need. Some Mercedes models even have M15 threads.
• Length: the length of the new bolts must be at least equal to the length of the old bolts + the thickness of the wheel spacer. Caution: bolts that are too short may loosen, while bolts that are too long may not fit or damage hub components. Given the wide range of models and any modifications already made to your vehicle, we recommend removing an original bolt to calculate the new length you need. The length is always measured under the head (see photo above).

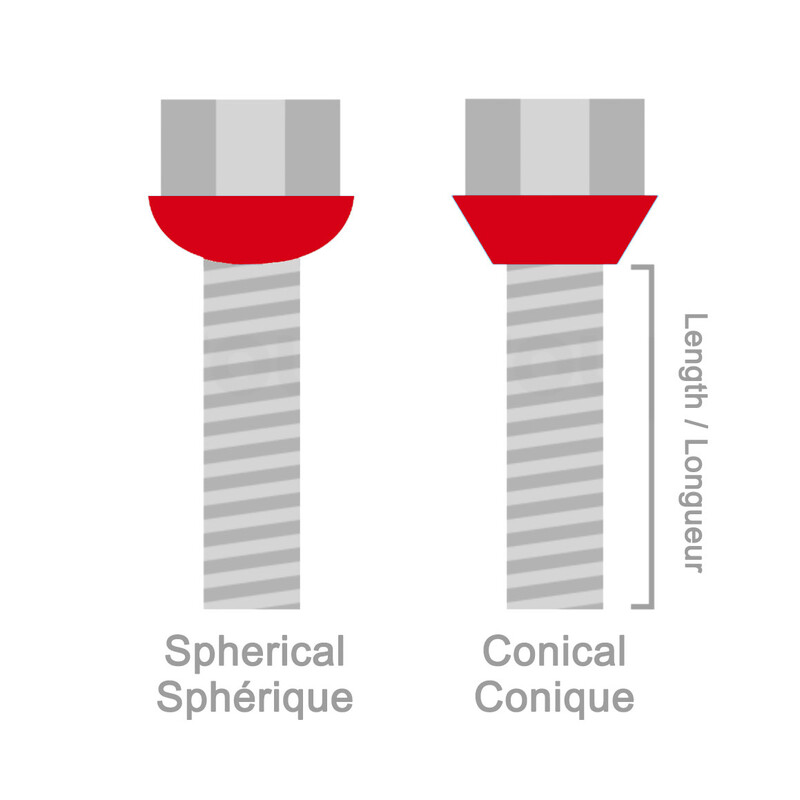

• Seat: the bolt seat can be conical or spherical (see photo above). This is the part of the bolt that is in contact with the wheel. Mercedes often have a spherical seat as standard, but if you've had your wheels replaced, you'll likely need a conical seat. Again, remove a bolt from the vehicle to make sure.

List of Compatible Vehicles (non-exhaustive)

• Maybach 57 / 57S (2002-2013) - M14x1.50 bolts
• Maybach 62 / 62S (2002-2013) - M14x1.50 bolts
• Mercedes 190 W201 (1985-1993) - M12x1.50 bolts
• Mercedes CL W215 (1999-2005) - M14x1.50 bolts
• Mercedes CL W216 (06-14) - M14x1.50 bolts
• Mercedes CL W216 C63 AMG (06-14) - M14x1.50 bolts
• Mercedes CLA (2013+) - M14x1.50 bolts
• Mercedes CLA 45 AMG (2013+) - M14x1.50 bolts
• Mercedes A Class W168 (1998-2004) - M12x1.50 bolts
• Mercedes A Class W169 (2004-2012) - M14x1.50 bolts
• Mercedes A Class W176 (2012-2018) - M14x1.50 bolts
• Mercedes A Class W176 AMG (2013-2018) - M14x1.50 bolts
• Mercedes A Class W177 (2018+) - M14x1.50 bolts
• Mercedes B Class W245 (2005-2011) - M14x1.50 bolts
• Mercedes B Class W246 (2011+) - M14x1.50 bolts
• Mercedes C Class 450 AMG (2015+) - M14x1.50 bolts
• Mercedes C Class C205 (2015-2021) - M12x1.50 bolts
• Mercedes C Class W202 (1993-2000) - M12x1.50 bolts
• Mercedes C Class W202 C36 AMG (1995-1998) - M12x1.50 bolts
• Mercedes C Class W202 C43 AMG (1998-2000) - M12x1.50 bolts
• Mercedes C Class W203 (00-07) - M12x1.50 bolts
• Mercedes C Class W204 (2007-2013) - M14x1.50 bolts
• Mercedes C Class W204 C63 AMG (2008-2013) - M14x1.50 bolts
• Mercedes C Class W205 (2013-2021) - M14x1.50 bolts
• Mercedes C Class W206 (2021+) - M14x1.50 bolts
• Mercedes E Class C207 (09-16) - M14x1.50 bolts
• Mercedes E Class R207 (10-16) - M14x1.50 bolts
• Mercedes E Class W123 (1976-1985) - M12x1.50 bolts
• Mercedes E Class W124 (1985-1995) - M12x1.50 bolts
• Mercedes E Class W210 (1995-2002) - M12x1.50 bolts
• Mercedes E Class W210 E50 AMG (1996-2003) - M12x1.50 bolts
• Mercedes E Class W211 (02-09) - M14x1.50 bolts
• Mercedes E Class W211 E55 AMG (02-09) - M14x1.50 bolts
• Mercedes E Class W211 E63 AMG (02-09) - M14x1.50 bolts
• Mercedes E Class W212 (2009-2016) - M14x1.50 bolts
• Mercedes E Class W212 E63 AMG (2009-2016) - M14x1.50 bolts
• Mercedes E Class W213 (2017+) - M14x1.50 bolts
• Mercedes E Class W214 (2023+) - M14x1.50 bolts
• Mercedes M Class W163 (1997-2001) - M14x1.50 bolts
• Mercedes M Class W163 (2002-2005) - M14x1.50 bolts
• Mercedes M Class W164 (2005 -2011) - M14x1.50 bolts
• Mercedes M Class W164 ML63 AMG (2006 -2011) - M14x1.50 bolts
• Mercedes M Class W166 (2012-2015) - M14x1.50 bolts
• Mercedes M Class W166 ML63 AMG (2012-2015) - M14x1.50 bolts
• Mercedes R Class W251 (2006-2013) - M14x1.50 bolts
• Mercedes S Class W126 (1979-1991) - M12x1.50 bolts
• Mercedes S Class W140 (1991-1998) - M14x1.50 bolts
• Mercedes S Class W220 (1998-2005) - M14x1.50 bolts
• Mercedes S Class W220 S55 AMG (1999-2002) - M14x1.50 bolts
• Mercedes S Class W221 (2005-2013) - M14x1.50 bolts
• Mercedes S Class W221 S63 AMG (2005-2013) - M14x1.50 bolts
• Mercedes S Class W222 (2013+) - M14x1.50 bolts
• Mercedes CLC CL203 (2008-2012) - M14x1.50 bolts
• Mercedes CLK W208 (1996-2002) - M12x1.50 bolts
• Mercedes CLK W209 (02-09) - M12x1.50 bolts
• Mercedes CLK63 AMG W209 (02-09) - M12x1.50 bolts
• Mercedes CLS W218 (2010+) - M14x1.50 bolts
• Mercedes CLS63 AMG W218 (2010+) - M14x1.50 bolts
• Mercedes CLS W219 (04-10) - M14x1.50 bolts
• Mercedes CLS63 AMG W219 (04-10) - M14x1.50 bolts
• Mercedes EQA (2021+) - M14x1.50 bolts
• Mercedes EQB (2021+) - M14x1.50 bolts
• Mercedes EQC (2019+) - M14x1.50 bolts
• Mercedes EQE (2022+) - M14x1.50 bolts
• Mercedes EQS (2021+) - M14x1.50 bolts
• Mercedes EQV (2021+) - M14x1.50 bolts
• Mercedes GL X164 (2006-2016) - M14x1.50 bolts
• Mercedes GLA (2013+) - M14x1.50 bolts
• Mercedes GLB (2019+) - M14x1.50 bolts
• Mercedes GLC (2015+) - M14x1.50 bolts
• Mercedes GLE & GLE Coupe (2015+) - M14x1.50 bolts
• Mercedes GLK X204 (2008-2016) - M14x1.50 bolts
• Mercedes GLS (15-19) - M14x1.50 bolts
• Mercedes GLS (2019+) - M15x1.25 bolts
• Mercedes Metris (16-25) - M14x1.50 bolts
• Mercedes SL W107 (1971-1989) - M12x1.50 bolts
• Mercedes SL R129 (1989-2001) - M12x1.50 bolts
• Mercedes SL R230 (01-08) - M14x1.50 bolts
• Mercedes SL R230 (08-11) - M14x1.50 bolts
• Mercedes SL R231 (2012+) - M14x1.50 bolts
• Mercedes SLC (16-20) - M14x1.50 bolts
• Mercedes SLK R170 (1996-2004) - M12x1.50 bolts
• Mercedes SLK R170 SLK32 AMG (1996-2004) - M12x1.50 bolts
• Mercedes SLK R171 (2004-2011) - M12x1.50 bolts
• Mercedes SLK R172 (2011+) - M14x1.50 bolts
• Mercedes SLK R172 SLK55 AMG (2012+) - M14x1.50 bolts
• Mercedes Vaneo W414 (2002-2006) - M12x1.50 bolts
• Mercedes Viano W638 (96-03) - M14x1.50 bolts
• Mercedes Viano W639 (2004+) - M14x1.50 bolts
• Mercedes Vito W638 (1996-2003) - M14x1.50 bolts
• Mercedes Vito W639 (2003-2014) - M14x1.50 bolts
• Mercedes Vito W640 (2014+) - M14x1.50 bolts

Important Notice

We also offer a range of specific wheel spacers designed for Mercedes cars fitted with long hubcentric flanges on the hubs. If you are looking for such application, please check this link instead : 5x112 Mercedes Hubcentric Wheel Spacers - 15 mm (Thin Lip CB 66.6).
