MaxxECU Universal Cable Harnesses
Some options are available below
Please check them before adding to the cart
MaxxECU Universal Harnesses
- Easy installation of your MaxxECU system
- Harnesses available for MaxxECU Mini, Street, Sport, Race, Pro and PDM20
- MaxxECU top quality
Ask a question about this productMaxxECU Universal Cable Harnesses Specifications

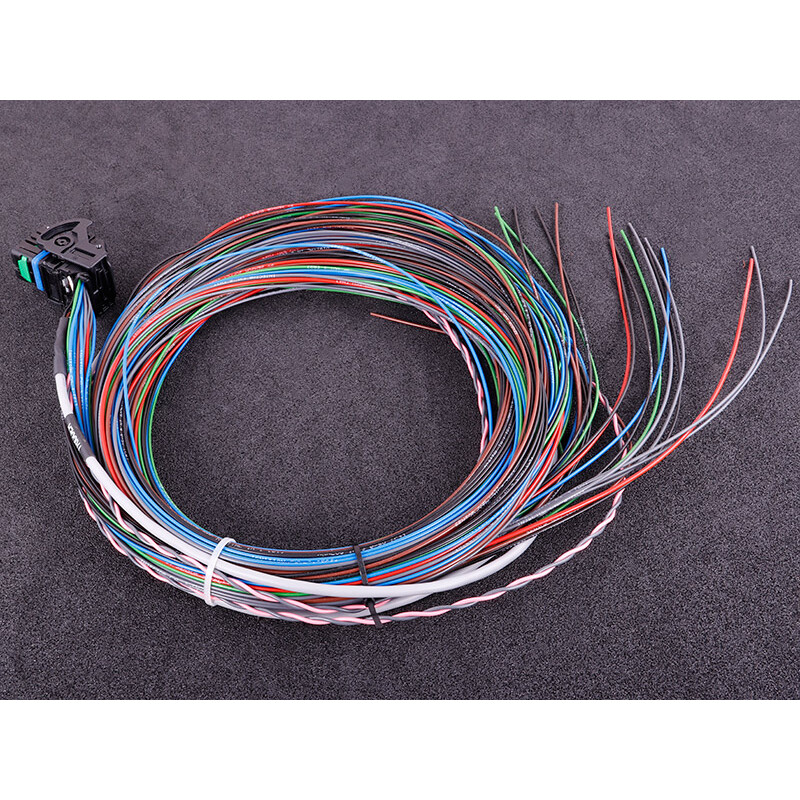

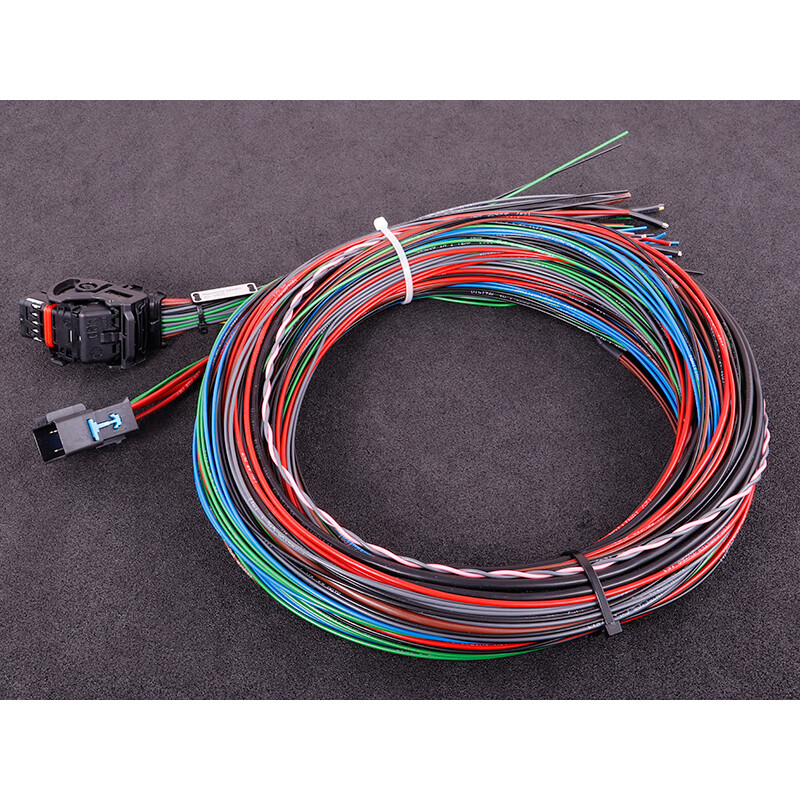

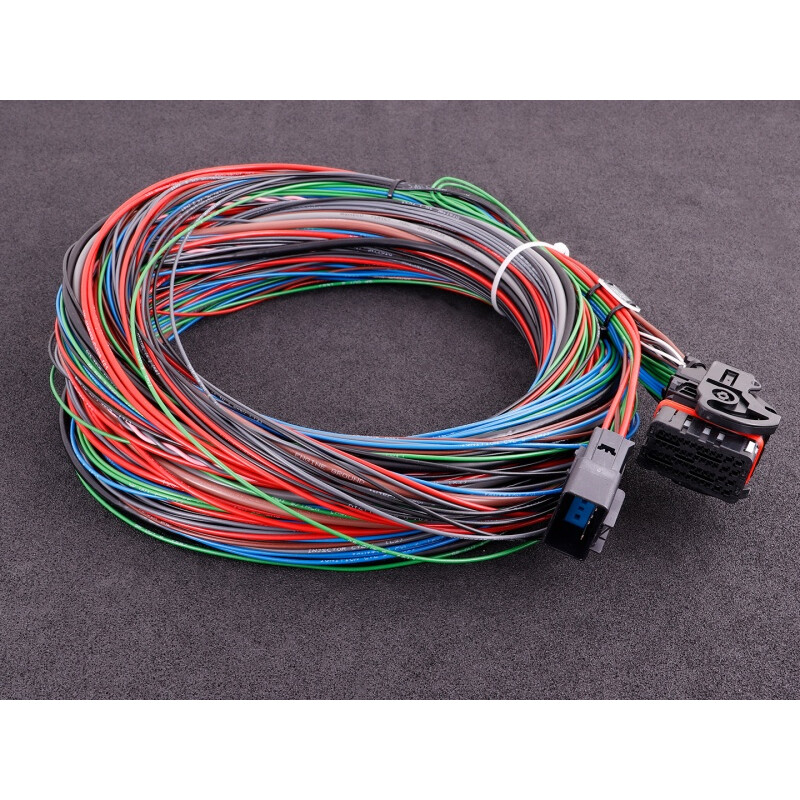

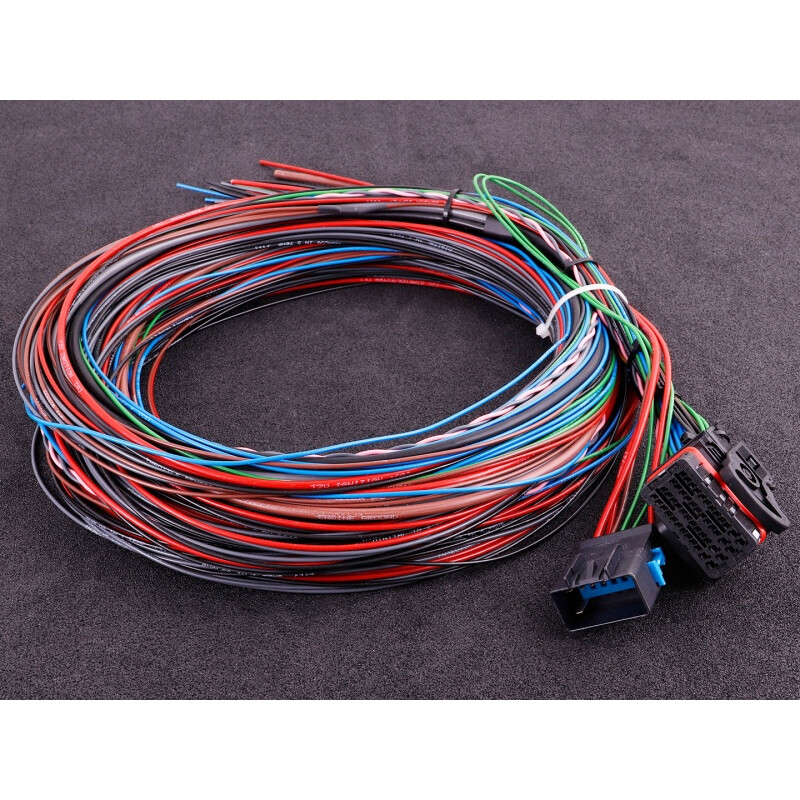

Make installation of your ECU or PDM easier with these universal harnesses from MaxxECU. Below you will find information on each harness available on this page:
- MaxxECU Mini : 2.5m long
- MaxxECU Street : 3m long
- MaxxECU Sport : 3m long
- MaxxECU Sport : 3m long
- MaxxECU V1/Race/Pro : 3m long
- MaxxECU Race #2 : 3m long, extends ECU with EGT 1-8, knock sensor 2, analog in (AIN) 5-8, digital in (DIN) 4-5, GPO (+12V) 15-16, GPO/motor output 11-14
- MaxxECU Pro #2 : 3m long, extends ECU with EGT 1-12, engine GND 3 (3x)
- MaxxECU Pro #3 : 3m long, extends ECU with DIN (VR) 4-5, DIN 6-7, WBO 2 + GPO 10 (WBO 2 heater), analog in 0-5V 5-12, GPO (+12V) 15-22, e-throttle motor 1+2, INJ 9-16, IGN 9-12, KEY_IN (+12V) + 12V ECU 2 + engine GND 2, sensor GND + 5V power supply 2
- MaxxECU Pro #4 : 3m long, extends ECU with knock 1, knock 2, CAN 2, analog out 0-5V 1-2, analog in 0-5V 13-18, analog in temp 19-22, DIN (switch) 8-11, +5V sensor supply 3, +5-10V sensor supply, sensor GND (2x), GPO 23-30

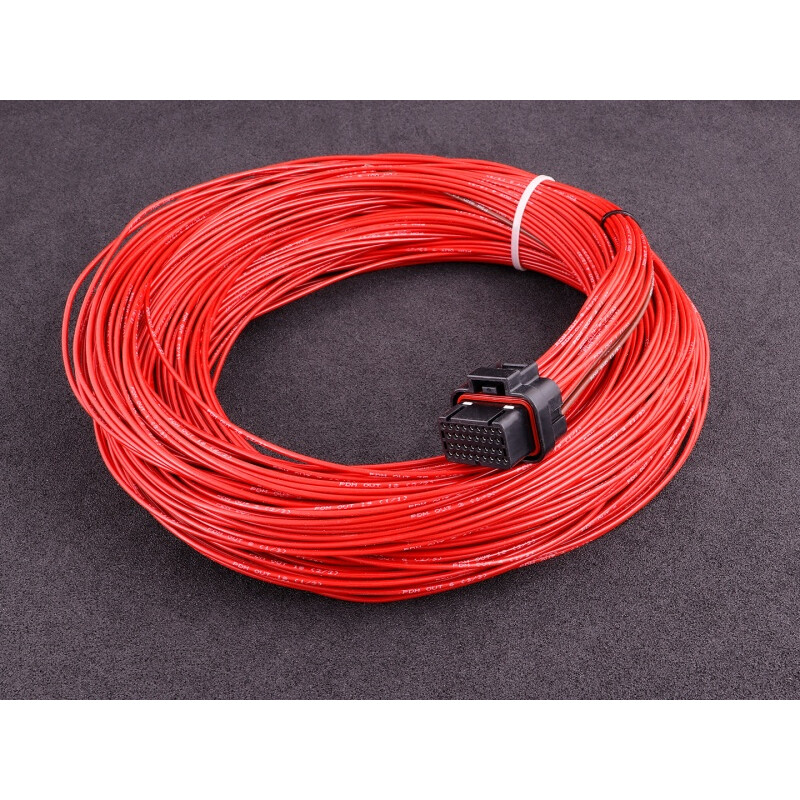

- MaxxECU PDM20 (34 pin Superseal) : PDM out 1/2, 3x3m red 1.5mm2 R2 cable, PDM out 3/4/5/6/7/8, 3x5m red 1.5mm2 R2 cable, PDM out 18/20, 2x5m red 1.5mm2 R2 cable, PDM out 19, 1x5m red 1.5mm2 R2 cable, PDM GND, 5x1m brown 1.5mm2 R2 cable

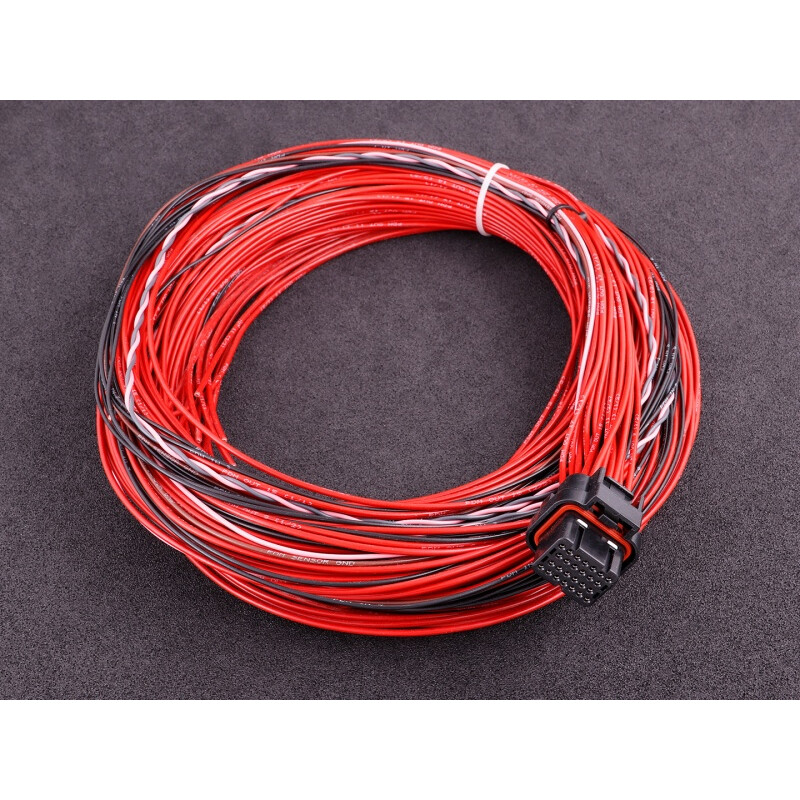

- MaxxECU PDM20 (26 pin Superseal) : PDM out 9/10, 3x3m red 1.5mm2 R2 cable, PDM out 11/12/13/14, 2x5m red 1.5mm R2 cable, PDM out 15/16/17, 1x5m red 1.5mm2 R2 cable, PDM in 1/2/3/4/5/6/7, 1x3m black 0.5mm2 R2 cable, PDM CAN H/L, 0.35mm2 pink/grey R2 cable, PDM 5V, 1x3m 0.5 pink R2 cable, PDM Sensor GND, 1x3m brown 0.5mm2 R2 cable
The MaxxECU engine management systems were born in Sweden, from a simple observation: in the early 2000s, there was no simple and powerful ECU to meet the needs of tuners. Today, MaxxECU responds to an ever increasing demand, offering easy-to-use EMS with revolutionary features. Proof of their quality, MaxxECU units are now widely used for the circuit racing, drifting, dragster and even on the road.
