Link WireIn G4X StormX ECU

€1,794.99
1 in stock

Dispatched today !

Order within 3 h and 40 min.

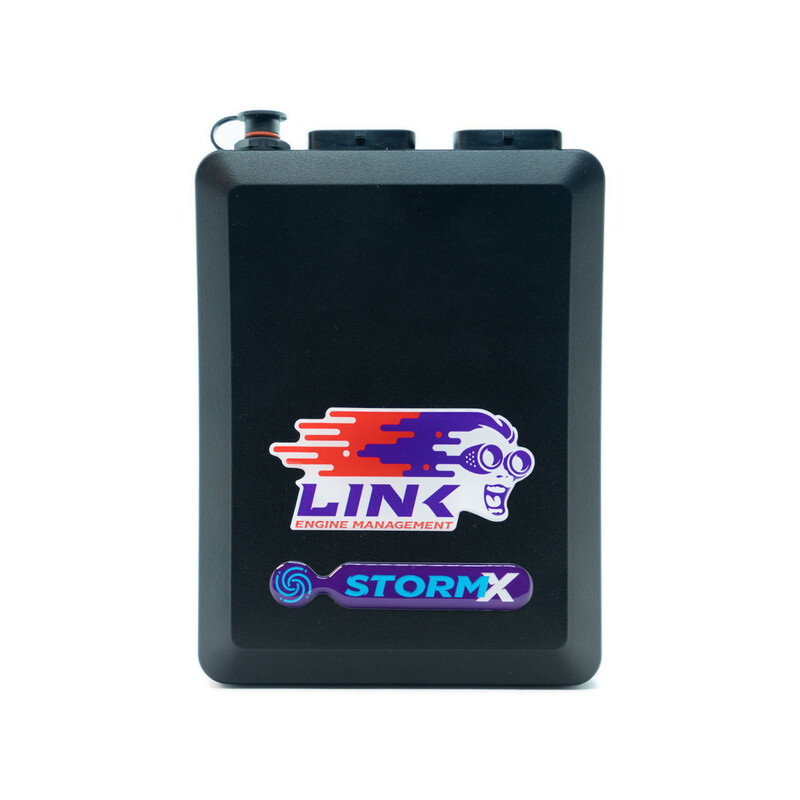

Link G4X WireIn StormX ECU

  • Mid-range programmable ECU
  • For engines up to 8 cylinders or 4 rotors with sequential injection and direct spark
  • 8 injector drives, 8 ignition drives
  • 8 digital inputs, 8 analog inputs
  • 8 auxiliary outputs
  • 45 general purpose tables
  • Knock control: 2 channels
  • Additional functions: VVT control, launch/anti-lag...
  • CAN bus support
  • USB connectivity
  • 512 Mb of memory for data logging
  • 250 logging parameters
  • Made in New Zealand

Link WireIn G4X StormX ECU Specifications

The Link WireIn StormX ECU is a mid-range G4X model, ideal for 6 to 8 cylinders or 4 rotors engines with sequential injection and direct spark (or up to 12 cylinders with wasted spark). It is ideal for an engine retune requiring additional functions and inputs/outputs compared to the AtomX and MonsoonX, but without justifying the switch to a more advanced ECU of the brand.

Like all G4X ECUs, the StormX is equipped with a powerful 150 MHz processor, a high-performance chip for fast communications and 512 Mb of memory for data logging. Each G4X model supports Flex Fuel and knock control. The StormX is distinguished by its extensive functions (launch control, anti-lag, VVT control, open and closed loop boost control, shift control, trigger oscilloscope, on-board knock control, stepper motor control...).

The StormX has 8 injector and 8 ignition drives, 8 digital and 8 analog inputs, 3 temperature inputs and 8 auxiliary outputs. The unused injector and ignition drives can be used as additional auxiliary outputs.

This ECU supports the CAN bus protocol (1 channel) and has a USB connectivity (cable supplied). The configuration requires a PC and is done with the PCLink software (downloadable from the manufacturer's website). Mapping must be done by a professional.

Compact, the StormX measures 170 x 130 x 44 mm and weighs only 680 grams. Feel free to consult all the technical information on the official manufacturer's website.

Further information: "A" and "B" looms or "A" and "B" connector kits (sold separately) needed to install the ECU.

G4X StormX video overview:

Comparison of the main features of the Link G4X and G4+ ECUs

Characteristics

Manufacturer Link ECU
Link Engine Management (also known as LinkECU) is one of the market leaders in specialized motorsports electronics. Headquartered in New Zealand, the company develops, manufactures and markets engine control units that are known worldwide for their high performance, reliability and value for money.
