Link G4X WireIn AtomX ECU
- Entry-level programmable ECU
- For engines up to 4 cylinders or 2 rotors with sequential injection and direct spark
- 4 injector drives, 4 ignition drives
- 2 digital inputs, 3 analog inputs
- 4 auxiliary outputs
- 45 general purpose tables
- Knock control: 1 channel
- CAN bus support
- USB connectivity
- 512 Mb of memory for data logging
- 250 logging parameters
- Made in New Zealand
Ask a question about this productLink WireIn G4X AtomX ECU Specifications

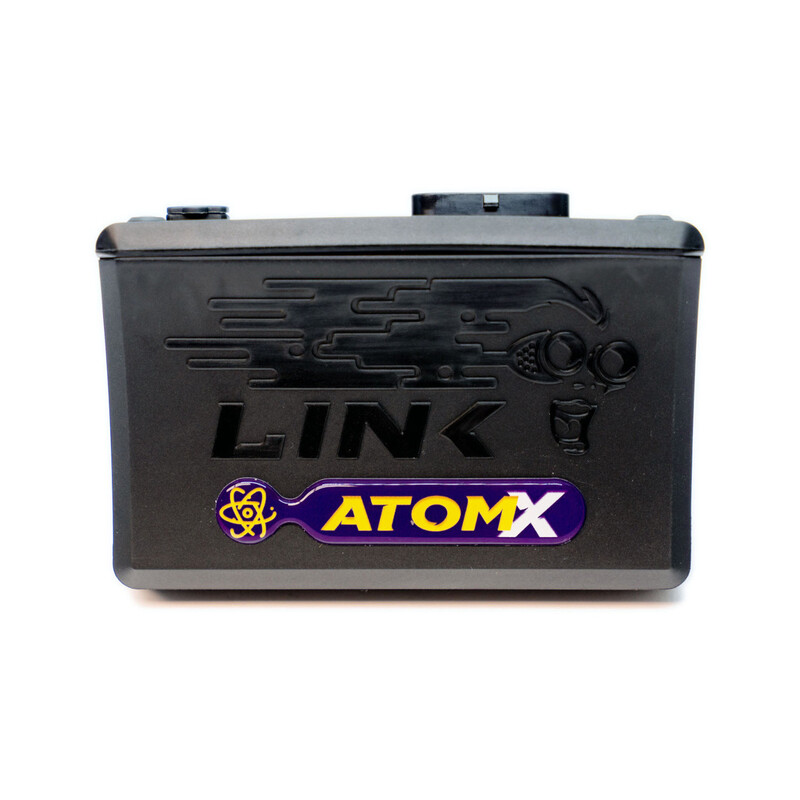

The Link WireIn AtomX ECU is an entry-level G4X model, ideal for naturally aspirated 4 cylinders or 2 rotors engines with sequential injection and direct spark (or up to 8 cylinders with wasted spark). It is ideal for an engine retune that does not require the additional sensors and functions provided with the brand's more advanced ECUs.
Like all G4X ECUs, the AtomX is equipped with a powerful 150 MHz processor, a high-performance chip for fast communications and 512 Mb of memory for data logging. Each G4X model supports Flex Fuel and knock control.
The AtomX has 4 injector and 4 ignition drives, 2 digital and 3 analog inputs, 2 temperature inputs and 4 auxiliary outputs. The unused ignition drives can be used as additional auxiliary outputs.
This ECU supports the CAN bus protocol (1 channel) and has a USB connectivity (cable supplied). The configuration requires a PC and is done with the PCLink software (downloadable from the manufacturer's website). Mapping must be done by a professional.
Very compact, the AtomX measures 90 x 130 x 45 mm and weighs only 180 grams. Feel free to consult all the technical information on the official manufacturer's website.
Further information: "A" loom (sold separately) needed to install the ECU.
G4X AtomX video overview:
Comparison of the main features of the Link G4X and G4+ ECUs
Characteristics
| Manufacturer | Link ECU |
|---|
