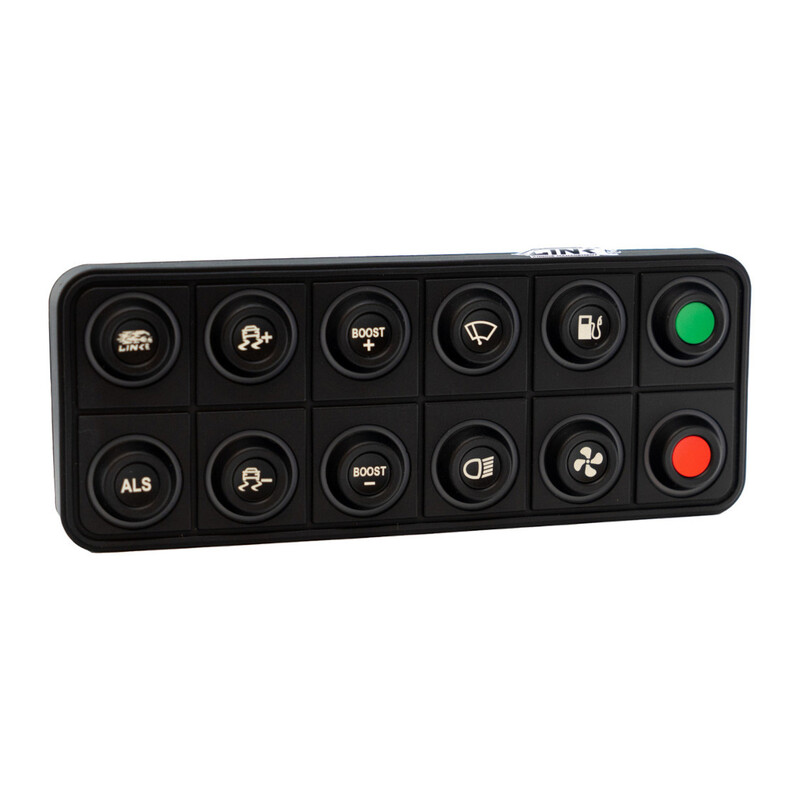

Link CAN Keypad

Link CAN Keypad Specifications

CAN keypads make it easy to use your Link ECU by keeping your vehicle's most important controls at your fingertips. Available in 8 or 12-key versions, they are fully customizable with interchangeable 15 mm button inserts (sold separately) featuring clear, highly legible icons. RGB indicator ring on the buttons allow you to set specific colors for particular functions. Each button can be pressed in a variety of ways (press, hold, release...) to provide a wide range of actions.

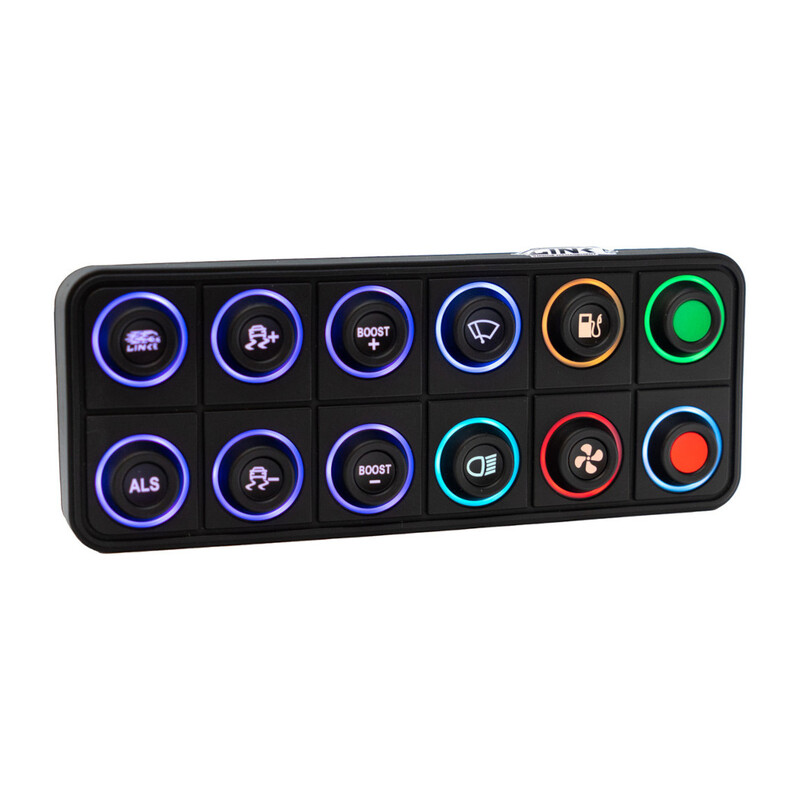

The backlighting of the keypad is adjustable with 9 preset colors, as well as its brightness. It is also possible to change the color of the buttons (7 preset colors) to indicate different functions and to make them flash according to the conditions. The backlight and button colors can be set to dim automatically after the headlights are turned on.

The CAN keypads can be configured directly via the G4X PC Link software (integrated support from version 6.22 onwards) and do not require a third-party application. They are compatible with all G4X ECUs from the manufacturer, which can support up to two keypads.

These keypads are especially rugged: with an IP67/IP69K rating, they are resistant to water, mud, soil, sand, oil, and chemicals. They can be installed inside or outside and are suitable for all types of use, from street to track, to off-road.

Note: Each keypad comes without button inserts (except for one with Link logo), these must be purchased separately from the list of options above.

Box contents:

• 1 x 8-/12-key CAN keypad
• 1 x DTM4 mating connector kit
• 1 x Link sticker
• 1 x keypad button insert with Link logo
