Koyorad 15 Row Universal Oil Cooler
Dispatched Tuesday, April 23, 2024
Order within 7 h and 39 min.

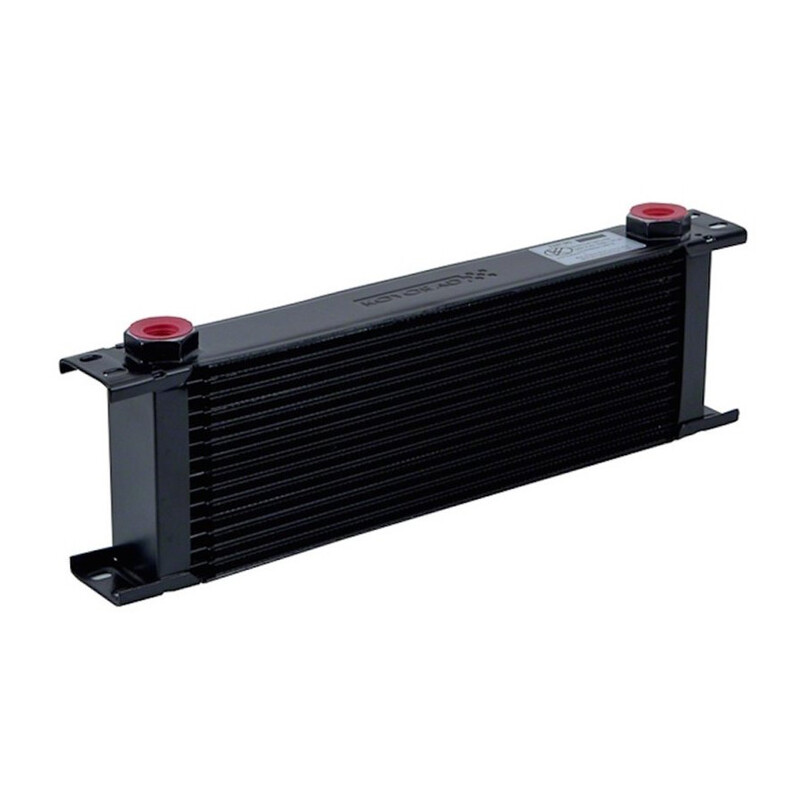

Koyorad Universal Oil Cooler
- For various automotive grade fluids : transmission, power steering, engine, differential
- Number of rows : 15
- Provisions (inlet/outlet) : 10 AN ORB
- Core size : 358 x 113 x 50 mm
- Aluminium construction with black finish
- Pressure tested : 10 bar
- Deformation tested : 35 bar
- Made in Japan by Koyo
- Koyo part no. : XC151405W
Ask a question about this productKoyorad 15-Row Universal Oil Cooler Specifications
Manufactured by Koyorad in Japan, this universal oil cooler is designed to cool various automotive grade fluids such as: transmission, power steering, engine oil, and differential fluids. Lightweight, efficient and robust, it benefits from an aluminium construction that optimises internal flow for first class cooling, whatever the conditions.
This cooler features versatile -10 AN ORB (O-Ring Boss / O Ring Port) provisions which allow users to reduce AN to AN fittings, or convert from AN to push-lock style barb fittings for any needs, and has been pressure tested to 10 bar and deformation tested to 35 bar. Please note that this item is supplied without hoses, adapter fittings or sandwich adapters.

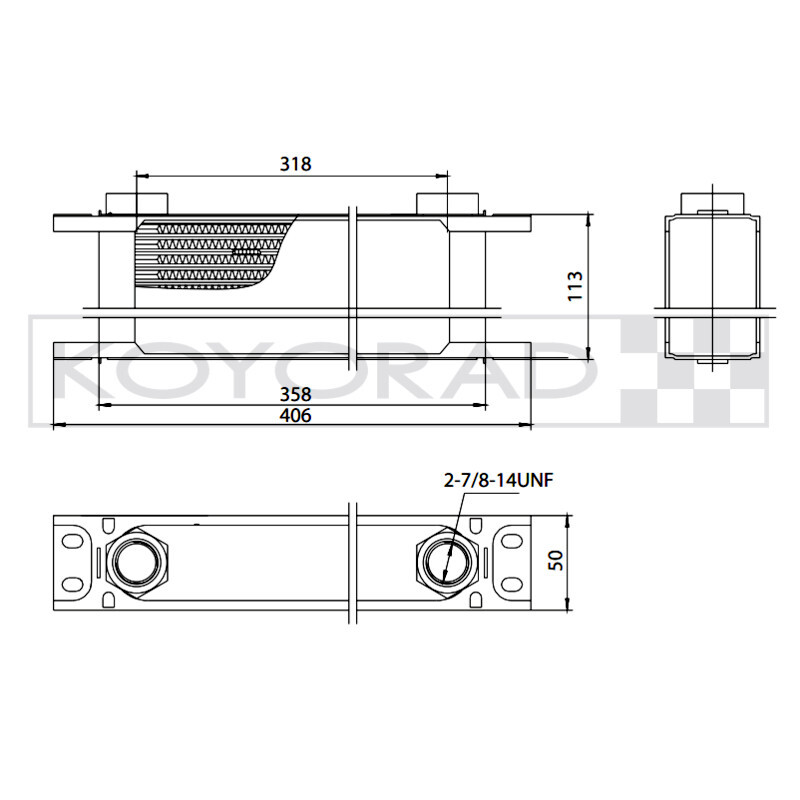

Technical Data
- 15-row core
- Provisions : -10 AN ORB (7/8"-14 UNF)
- Core width : 358 mm
- Core height : 113 mm
- Core thickness : 50 mm
- Volume : approx. 0,4 L
- Pressure tested : 10 bar
- Deformation tested : 35 bar
- Mounting type : universal
Characteristics
| Manufacturer | Koyorad |
|---|
