GReddy Intake Plenum for Toyota 2JZ-GTE (Surge Tank)

GReddy Surge Tank Pro Kit for Toyota 2JZ-GTE Specifications

Designed specifically for custom builds powered by the Toyota 2JZ-GTE engine, this GReddy Pro kit offers the versatility to perfectly match the throttle body inlet angle and the air/vacuum ports of your engine bay. It features a 4-litre tank with a large 90mm throttle body, a top feed fuel rail and the necessary weld-on flanges.

Precision-welded and machined, the highly rigid plenum uses 3mm-thick aluminium to withstand high boost pressures and features six individual, internal velocity stacks. Carefully designed primary runners also help increase airflow to maximise engine intake efficiency.

Key Features

• 4-litre capacity collector tank (normal ratio 200%)
• Tuned internal velocity stacks on each runner
• Primary runner length 130mm, OD 14.0mm, ID 13.0mm
• Specific O-rings for maximum manifold/head sealing
• Throttle-body hose diameter 100mm, internal butterfly diameter 90mm with low-profile throttle shaft
• Fuel rail for 14mm top feed injectors (e.g. compatible with Nissan R35 VR38DETT factory injectors)
• Compatible with OEM factory ICV (Idler Control Valve) and TPS (Throttle Position Sensor)

Please note : Welding required to attach throttle body flange, throttle cable mount and air port flanges.

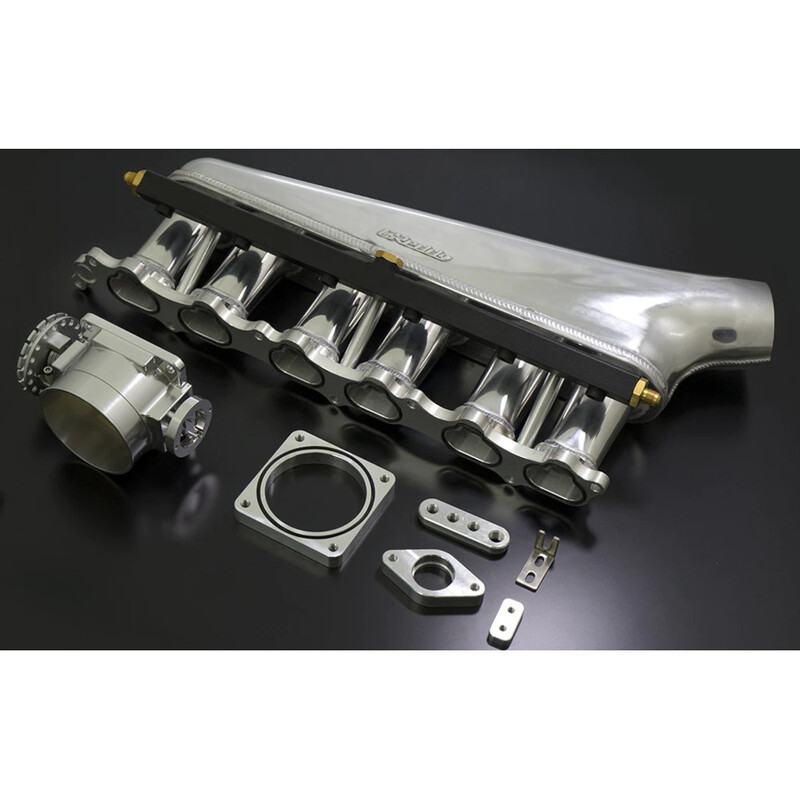

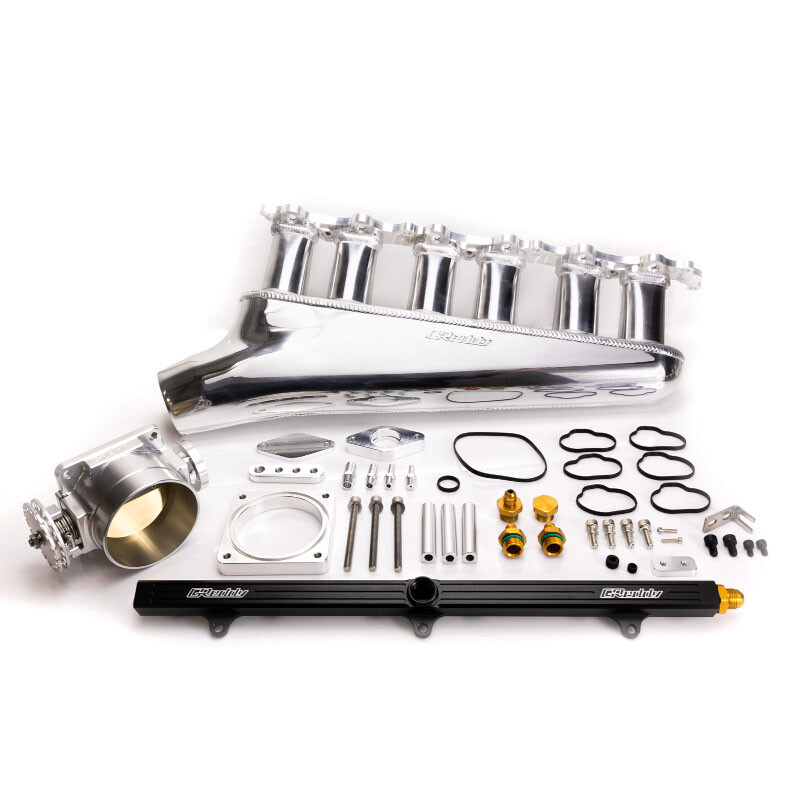

Kit Contents

• Surge tank

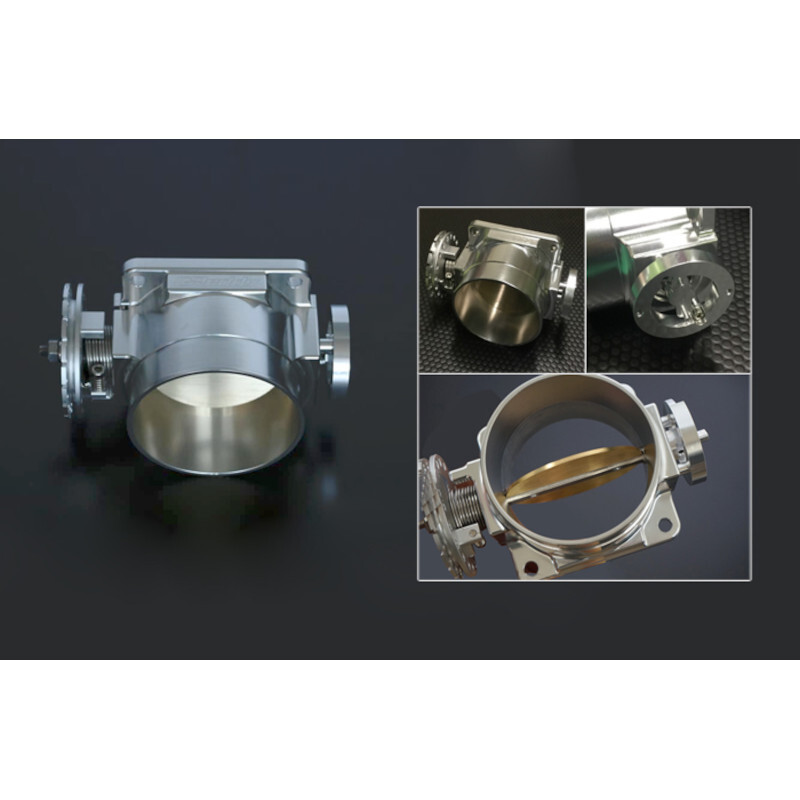

• Throttle body
• Throttle flange
• Fuel delivery tube and mounts
