GReddy Injector Kit for Nissan SR20DET (S14/S15)

GReddy Injector Kit for Nissan SR20DET (S14/S15) Specifications

This GReddy kit, specially designed for the Nissan S14 and S15 SR20DET engine, includes a fuel rail and a set of 695 cc, 834 cc or 931 cc injectors (as required) with connectors, terminals and sleeves to significantly improve the fuel supply to the turbocharged Nissan 4-cylinder. Developed to be 100% "plug and play", this kit combines top quality and reliability and can be installed in place of the OEM components, with no modifications required.

Please note that this kit is available in two variants: compatible with the stock intake manifold (surge tank) or compatible with the GReddy intake manifold (surge tank).

Technical Data

P/N 13923310 / 13923313

• Flow rate (cc/min) : 695 (3 bar)
• System : top feed
• Spray pattern : conical (9 holes)
• Connector : Jetronic (square)
• Resistance : 12 Ω

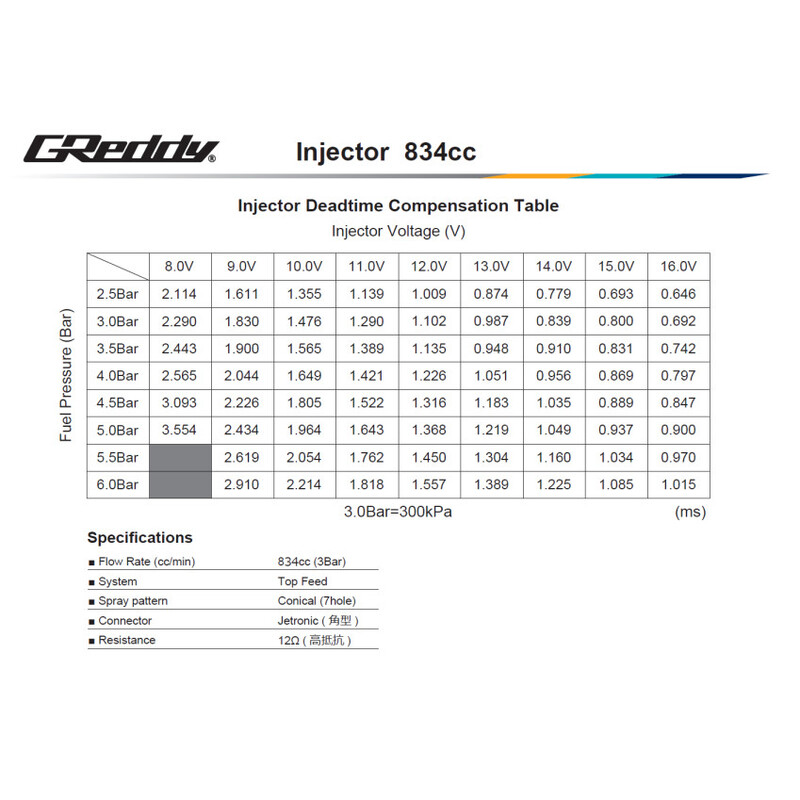

P/N 13923311 / 13923314

• Flow rate (cc/min) : 834 (3 bar)
• System : top feed
• Spray pattern : conical (7 holes)
• Connector : Jetronic (square)
• Resistance : 12 Ω

P/N 13923312 / 13923315

• Flow rate (cc/min) : 931 (3 bar)
• System : top feed
• Spray pattern : conical (7 holes)
• Connector : Jetronic (square)
• Resistance : 12 Ω

Kit Details for Stock Surge Tank (See Diagram)

• 1) Fuel delivery tube x1
• 2) AN6/M20 adapter union x3
• 3) M20 plug union x1
• 4) O-ring (P18) x4
• 5) Spacer (37 mm) x1
• 6) Spacer (20 mm) x2
• 7) Cap bolt M8 P1.25 (L=60) x1
• 8) Cap bolt M8 P1.25 (L=40) x2
• 9) M8 spring washer x3
• 10) M8 flat washer x3
• 11) O-ring (S11.2) x4
• 12) I/J conversion adapter (out side) x4
• 13) O-ring (P21) x4
• 14) IAA unit adapter x1
• 15) ⌀15-1/4PT hose union x1
• 16) Cap bolt M6 P1.0 (L=55) x3
• 17) M6 spring washer x3
• 18) M6 flat washer x3
• 19) IAA unit gasket x2
• 20) Hose joint ⌀15 x1
• 21) Hose band #8 x2
• 22) Acrylic hose ⌀15 500 mm x1
• 23) Injector assy x4
• 24) Connecter set x4
