GReddy Injector Kit for Nissan RB25DET
GReddy Injector Kit
- To suit Nissan RB25DET
- Flow rate(s) : 695 cc/min
- Type : top feed
- Direct OEM replacement
- Flawless quality and reliability
- GReddy part number(s) : 13923320
Ask a question about this productGReddy Injector Kit for Nissan RB25DET Specifications

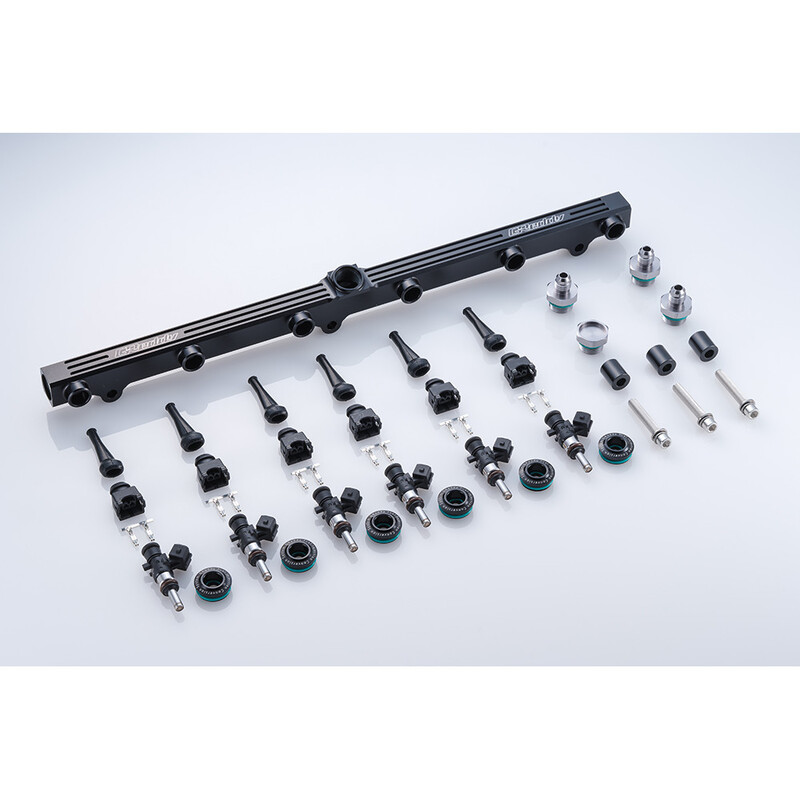

This GReddy kit, specially designed for the RB25DET engine, includes a fuel rail and a set of 695 cc injectors with connectors, terminals and sleeves to significantly improve the fuel supply to the turbocharged Nissan 6-cylinder. Developed to be 100% "plug and play", this kit combines top quality and reliability and can be installed in place of the OEM components, with no modifications required.
Note : can also be installed with the GReddy intake manifold (surge tank) for RB25DET.

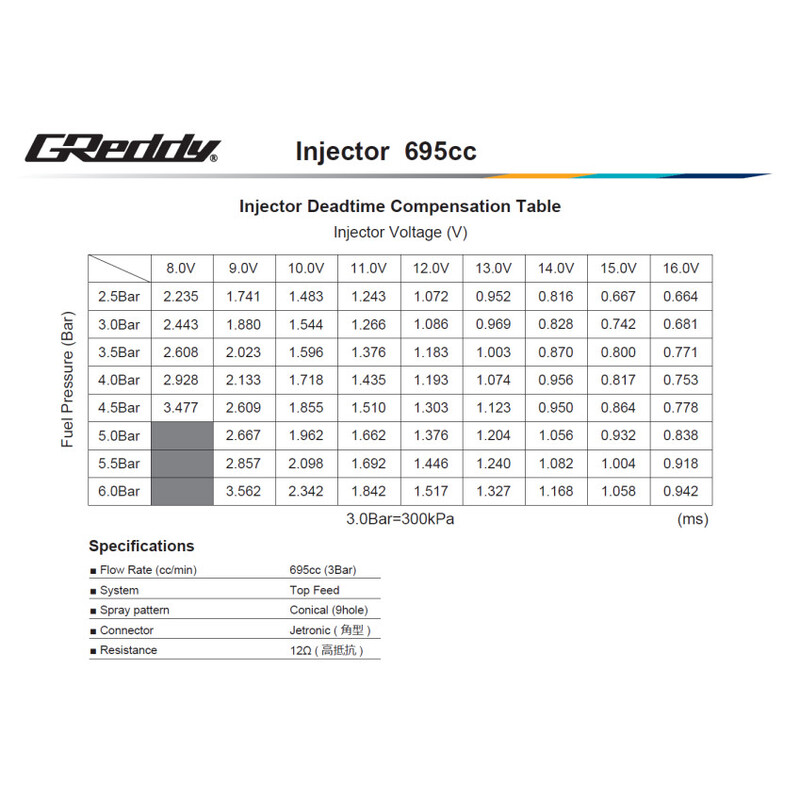

Technical Data
P/N 13923320
- Flow rate (cc/min) : 695 (3 bar)
- System : top feed
- Spray pattern : conical (9 holes)
- Connector : Jetronic (square)
- Resistance : 12 Ω

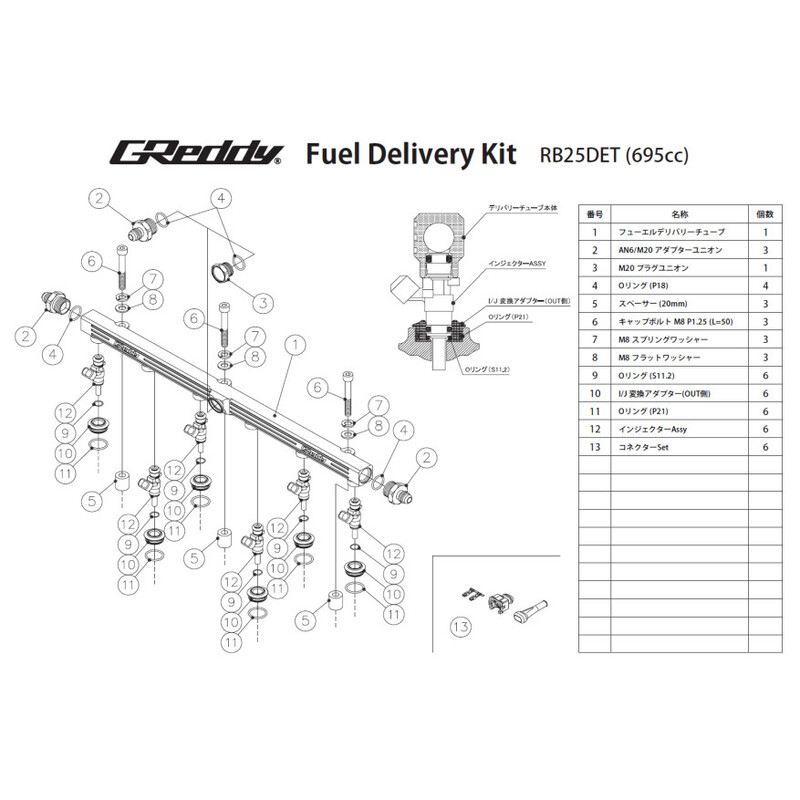

Kit Details (See Diagram)
- 1) Fuel delivery tube x1
- 2) AN6/M20 adapter union x3
- 3) M20 plug union x1
- 4) O-ring (P18) x4
- 5) Spacer (20 mm) x3
- 6) Cap bolt M8 P1.25 (L=50) x3
- 7) M8 spring washer x3
- 8) M8 flat washer x3
- 9) O-ring (S11.2) x6
- 10) I/J conversion adapter (out side) x6
- 11) O-ring (P21) x6
- 12) Injector assy x6
- 13) Connecter set x6
Characteristics
| Car Make | Nissan |
|---|---|
| Engine Code | RB25DET |
