Exedy Reinforced Hyper Single Clutch for Honda Civic Type R EK9 (96-00)

€999.99
Dispatched under 5 to 10 days, as of Tuesday, July 31, 2018

Hyper Single Clutch Honda Civic Type R EK9

  • For Honda Civic Type R EK9 (96-00)
  • Years : 1996-2000 (EK4, EK9)
  • Engine code : B16A2 B16B (1.6L)
  • Max torque capacity : 380 Nm (280 lb.ft)
  • Friction material : cerametallic
  • Exedy Reference: HH02SD

To suit

  • Car : Honda Civic Type R EK9 (96-00)
  • Years : 1996-2000 (EK4, EK9)
  • Engine code : B16A2 B16B (1.6L)

Technical information

  • Range : Hyper Single
  • Max torque capacity : 380 Nm (280 lb.ft)
  • Disc diameter : 200 mm
  • Friction material : cerametallic
  • Sprung disc : yes
  • Clutch type : push
  • Inertia reduction VS OEM : 20 to 30%
  • Bearing included : yes
  • Kit reference : HH02SD
  • Components reference : cover CH06S + disc DH04D

Exedy Reinforced Hyper Single Clutch for Honda Civic Type R EK9 (96-00) Specifications

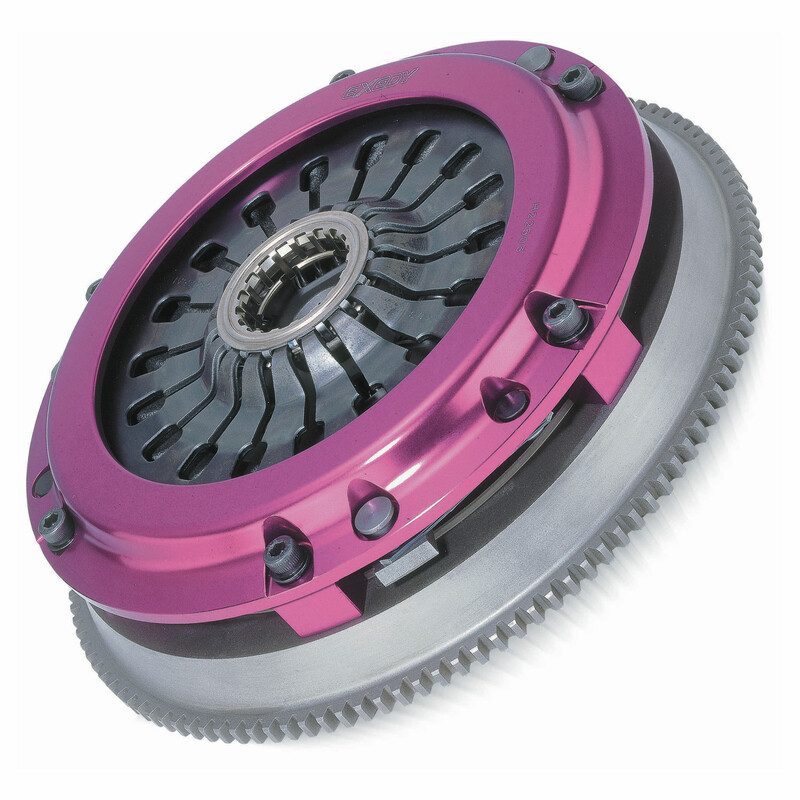

Exedy Hyper Single clutch kits offer great comfort and usability, whilst supporting high torque and power. These kits consist of a lightened flywheel, sprung cerametallic friction plate, pressure plate and all fixings/parts required for a full clutch kit assembly*.

The latest generation of materials used by Exedy offer an excellent resistance to overheating and a long life. The composition of this friction material offers a very high coefficient of friction and has enabled Exedy to reduce the diameter of the clutch, thereby reducing the diameter of the clutch disk, in turn reducing inertia. Throttle response is much better than original, with rapid gear changes and a fantastic pedal feel.

This clutch is the best compromise between ease of use, durability, performance and price - up to 400-500 HP. It offers a level of quality that few competitors can offer, and is especially recommended for performance use.

It is possible to order spare parts and disc mechanisms only, please contact us for more details!

Exedy clutches are made in Japan. They benefit from Japanese build quality and guarantee extreme robustness and outstanding performance and reliability. The "Hyper" and "Carbon" (stages 3,4 and 5, single and multi-disc) have been specifically designed to be mechanically considerate. Their design insulates noise and absorbs shock, helping protect your transmission. They fit directly, with no modifications needed.

*A release bearing may not be included.

Characteristics

Car Make Honda
Engine Code B16
Manufacturer Exedy
Car Model Honda Civic Type R EK9

Short for Excellent Dynamics, Exedy is a Japanese company whose parts have been present in motorsport since the 60's. Specialising in reinforced clutches and transmission components, Exedy's clutches are made at their factory in Japan and have featured in many victories in F1, Moto GP and of course drifting.
