Deatschwerks X3 Triple Fuel Pump Module for Ford Mustang (11-24)
Deatschwerks X3-Series Module
- For Ford Mustang (2011-2024)
- The ultimate solution for high flow rates without hassle!
- Accommodates 3 fuel pumps for a flow rate up to 935 LPH!
- Compatible with Ø39 mm, Ø42 mm and Ø46 mm in-tank pumps
- Fits without modification in the OEM tank
- Optional return fuel system kit (lines, fittings, regulator, gauge, filter, etc.)
- Keeps all the features of the OEM module
Ask a question about this productDeatschwerks X3-Series Module
The Deatschwerks X3-Series fuel module for Ford Mustang (2011-2024) is the ideal solution to allow your engine to achieve high power outputs, up to 1700+ whp, with OEM fitment and reliability. With this product, no more hassle of having to build a custom multi-pump fuel system!
Compatible with unleaded gasoline or E85 ethanol, this module accommodates three in-tank fuel pumps and optimizes voltage for consistent pressure and flow. Tests of this module revealed a 230% increase in flow rate on a 2018 Mustang GT!

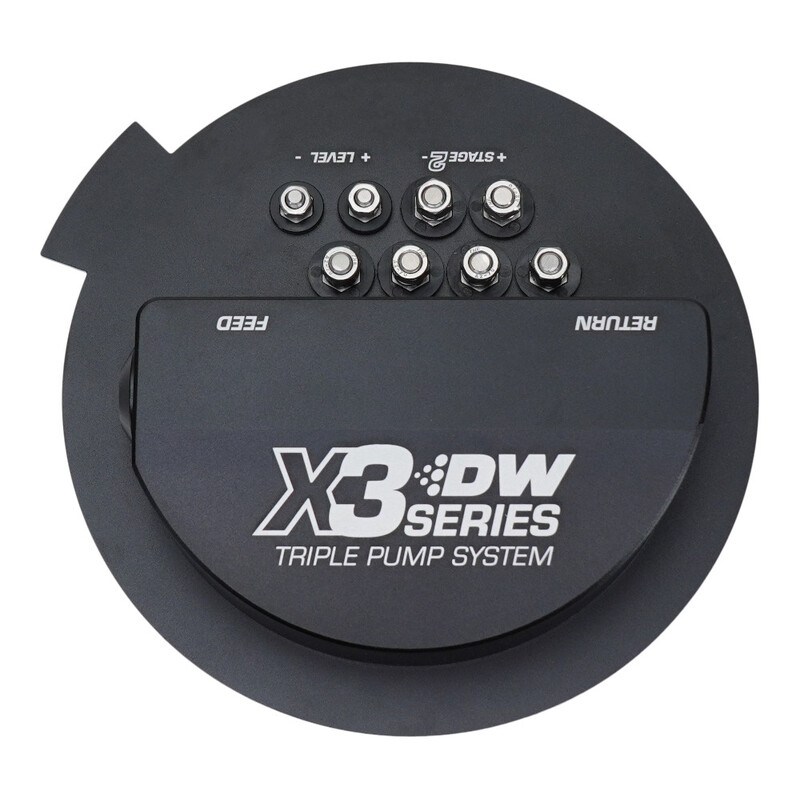

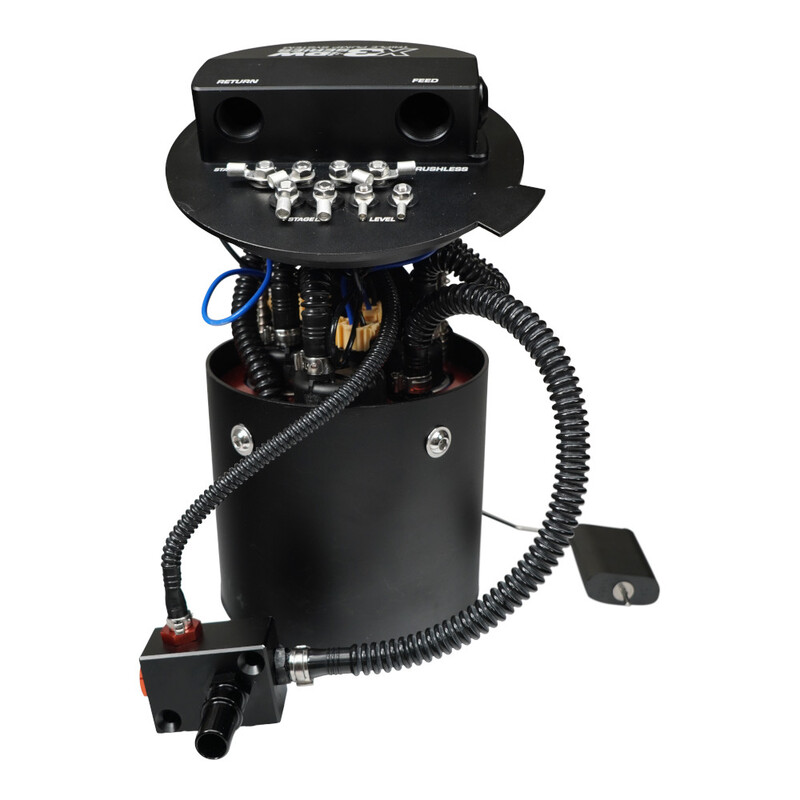

The Deatschwerks X3 module features a black anodized aluminum top hat with Dash 10 and Dash 8 fittings, stainless steel terminals and an aluminum center section that can support one DW440 or DW810 Brushless pump, or three DW100, DW200, DW300, DW400, or DW420 pumps. Particularly slim, it fits into the fuel tank as standard and retains all factory features (fuel level sensor, filtration, venturi and surge capabilities).

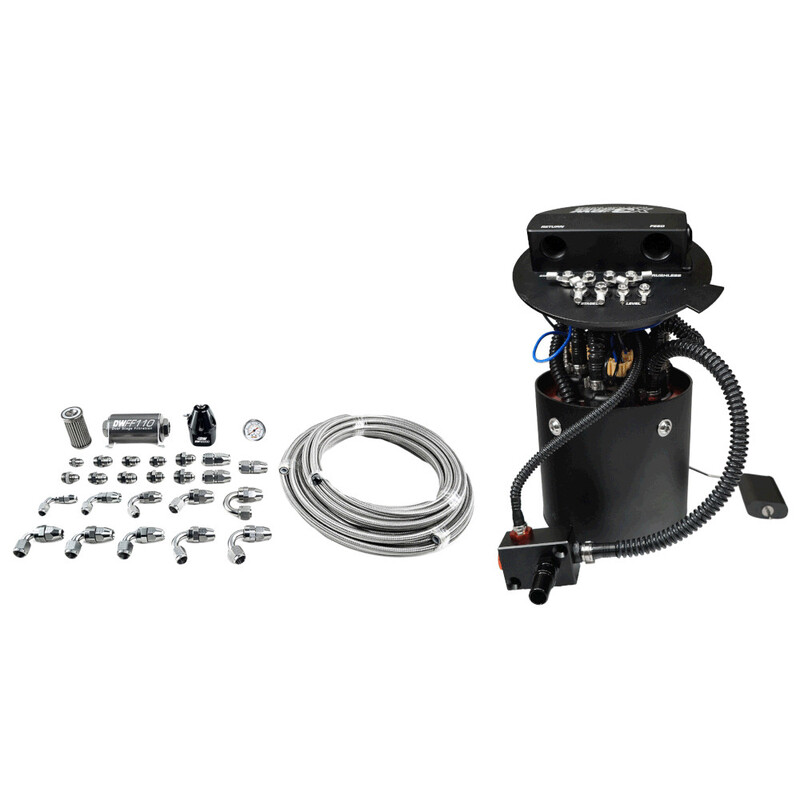

This module is sold alone or with three Deatschwerks DW400 fuel pumps. A return style plumbing system is required for the installation. A full fuel system kit is available that includes lines, fittings, pressure regulator with gauge, and fuel filter.
Technical Specifications
- Material: anodised aluminum
- Feed fitting: Dash 10 ORB
- Return fitting: Dash 8 ORB
- Pump size fitment: 39 mm, 42 mm ou 46 mm*
- Brushed pump PN# fitment: 9-101, 9-201, 9-301, 9-421, 9-401
- Brushless pump PN# fitment: 9-441, 9-811*
- Fuel pump wiring: M5 terminals x6
- Fuel level sensor: M4 terminals x2
- Flow at 58 psi / 4 bars: 935 LPH (60,5 Amp)
*Note: The Mustang X3 module is only provisioned for 1x Brushless pump, the other 2x pumps must be Brushed versions.
To fit
- Ford Mustang (2011-2024)
Characteristics
| Car Make | Ford |
|---|---|
| Car Model | Ford Mustang |
Since 2004, American company Deatschwerks have been specialising in fueling. Known for their injectors, fuel pumps and other accessories (filters, pressure regulators, hoses, fittings, injection rails, surge tanks...), Deatschwerks design and make all of their high quality products at their factory in Oklahoma.
