Deatschwerks X2 Dual Fuel Pump Surge Module for Nissan 200SX (94-02) & Skyline (93-07)
Deatschwerks X2-Series Module
- For Nissan 200SX/Silvia S14/S15 (1994-2002) & Skyline R33/R34 (1993-2004)
- The ultimate solution for high flow rates without hassle!
- Accommodates 2 fuel pumps for a flow rate up to 810 LPH!
- Compatible with Ø39 mm in-tank pumps (Deatschwerks DW300, etc.)
- Fits without modification in the OEM tank
- Optional return fuel system kit (lines, fittings, regulator, gauge, filter, etc.)
- Keeps all the features of the OEM module
Ask a question about this productDeatschwerks X2-Series Module
The Deatschwerks X2-Series fuel module for Nissan 200SX/Silvia (1994-2002) and Skyline (1993-2004) is the ideal solution to allow your engine to achieve high power outputs, up to 1500+ hp via forced induction, with OEM fitment and reliability. With this product, no more hassle of having to build a custom multi-pump fuel system!
Compatible with unleaded gasoline or E85 ethanol, this module accommodates two high pressure fuel pumps as well as a factory style lift pump, and optimizes voltage for consistent pressure and flow. Tests of this product revealed a 200% increase in flow rate compared to the Nismo module!

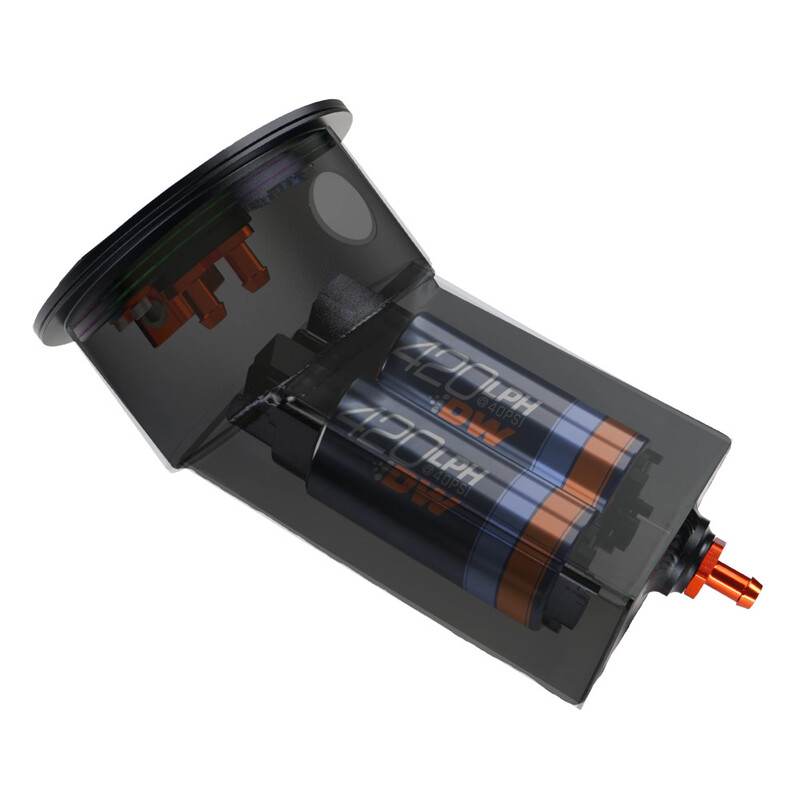

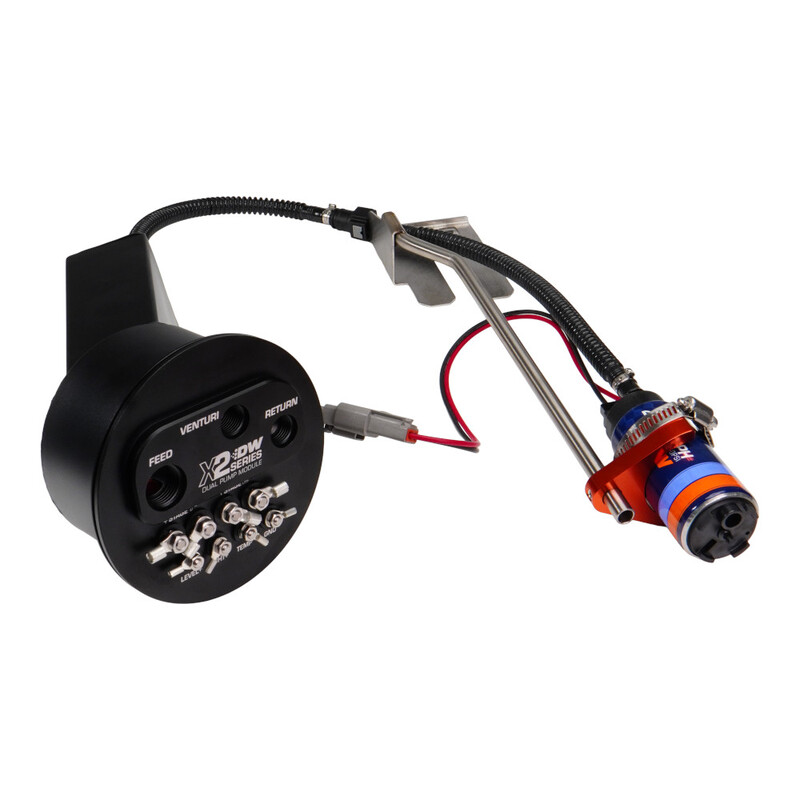

The Deatschwerks X2 module features a black anodized aluminum top hat with Dash 6 and Dash 8 fittings, stainless steel terminals, a surge tank middle section that can support two DW100, 200, 300 or 420 pumps (or any other Ø39 mm pump), as well as a stainless steel lift pump hanger. It fits without any modification in the OEM tank and retains all standard features (fuel level sensor, filtration capabilities and venturi).

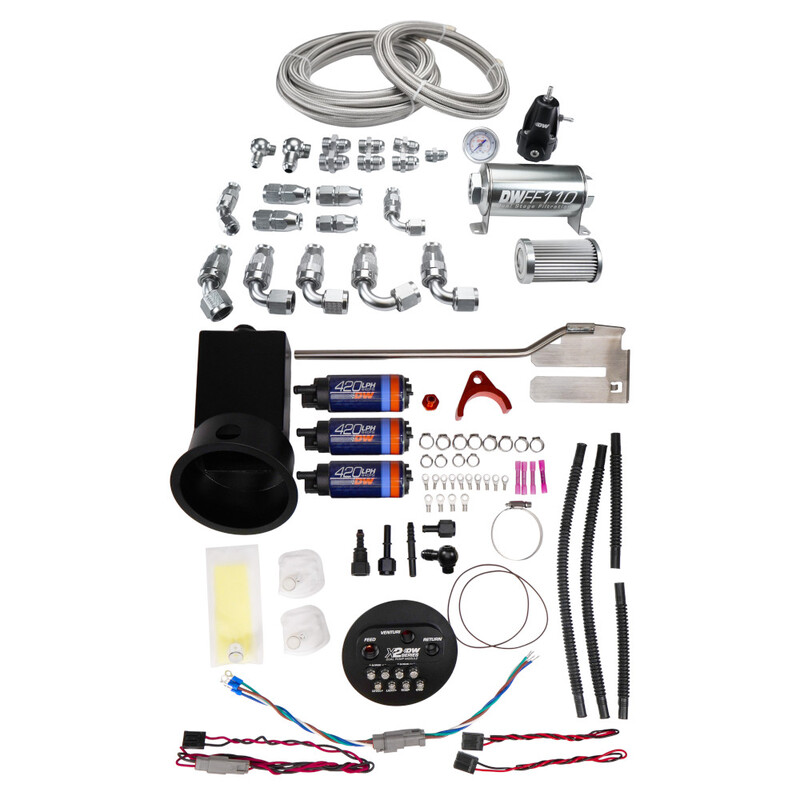

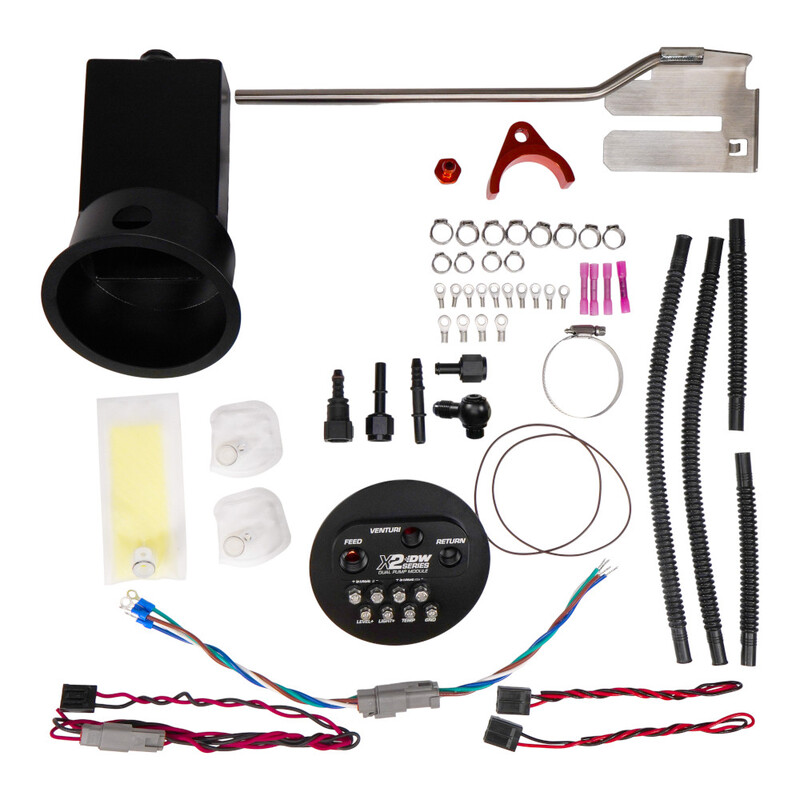

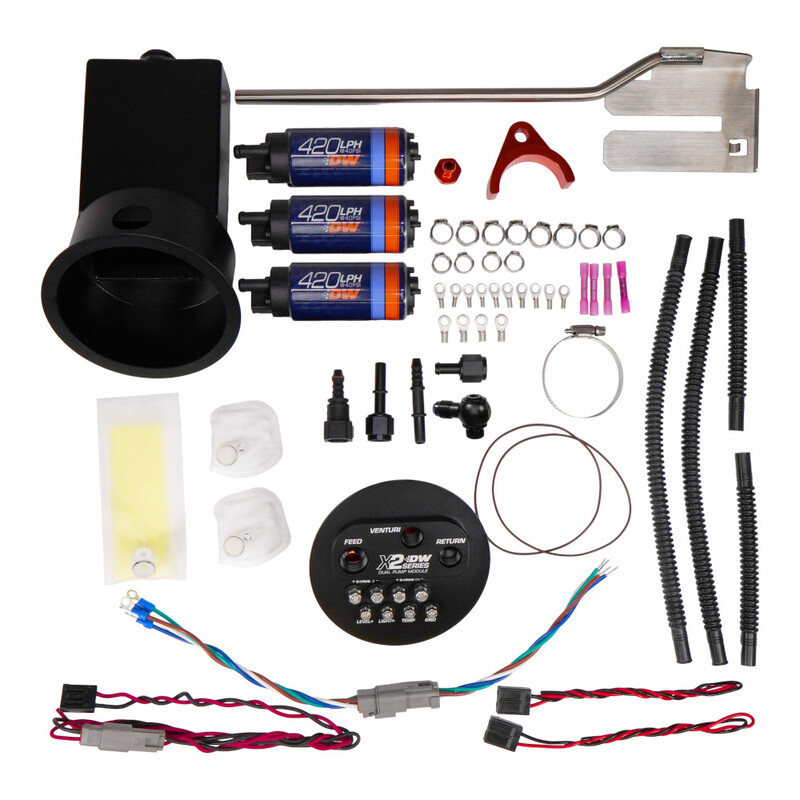

This module is sold alone or with two Deatschwerks DW420 fuel pumps. A return style plumbing system is required for the installation. A full fuel system kit is available that includes lines, fittings, pressure regulator with gauge, and fuel filter.

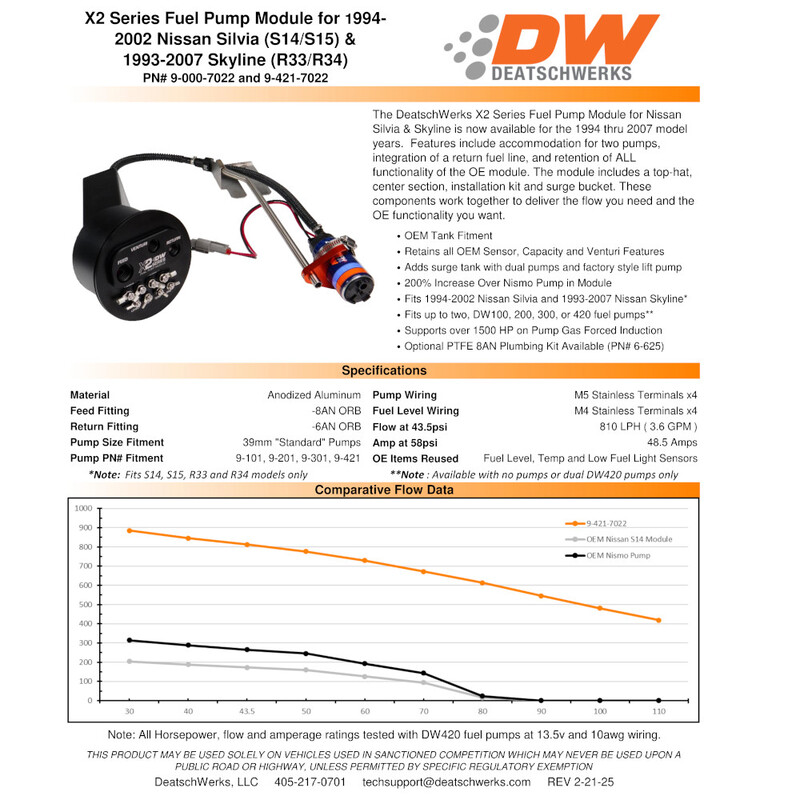

Technical Specifications
- Material: anodised aluminum
- Feed fitting: Dash 8 ORB
- Return fitting: Dash 6 ORB
- Pump fitment: Deatschwerks DW100, DW200, DW300, DW420 and other Ø39 mm pumps
- Pump wiring: M5 terminals x4
- Fuel level wiring: M4 terminals x4
- Flow at 43.5 psi / 3 bars: 810 LPH (48.5 Amp)
- OE items reused: fuel level, temp and low fuel light sensors
To fit
- Nissan 200SX/Silvia S14/S15 (1994-2002)
- Nissan Skyline R33/R34 (1993-2004)
Characteristics
| Car Make | Nissan |
|---|
Since 2004, American company Deatschwerks have been specialising in fueling. Known for their injectors, fuel pumps and other accessories (filters, pressure regulators, hoses, fittings, injection rails, surge tanks...), Deatschwerks design and make all of their high quality products at their factory in Oklahoma.
