Deatschwerks X2 Dual Fuel Pump Module for BMW 3 Series E36 & E46 (92-05)
Deatschwerks X2-Series Module
- For BMW 3 Series E36 & E46 (1992-2005)
- The ultimate solution for high flow rates without hassle!
- Accommodates 2 fuel pumps for a flow rate up to 825 LPH!
- Compatible with Ø39 mm in-tank pumps (Deatschwerks DW300, etc.)
- Fits without modification in the OEM tank
- Optional return fuel system kit (lines, fittings, regulator, gauge, filter, etc.)
- Keeps all the features of the OEM module
Ask a question about this productDeatschwerks X2-Series Module
The Deatschwerks X2-Series fuel module for BMW 3 Series E36 and E46 (not suitable for Z3, Z4, M-Roadster or M-Coupe) is the ideal solution to allow your engine to achieve high power outputs, up to 1500+ hp via forced induction, with OEM fitment and reliability. With this product, no more hassle of having to build a custom multi-pump fuel system!
Compatible with unleaded gasoline or E85 ethanol, this module accommodates two in-tank fuel pumps and optimizes voltage for consistent pressure and flow. Tests of this product revealed a 300% increase in flow rate compared to the M3 E46 module!
The Deatschwerks X2 module features a black anodized aluminum top hat with Dash 6 and Dash 8 fittings, stainless steel terminals and an orange anodized aluminum center section that can support two DW100, 200, 300 or 420 pumps (or any other Ø39 mm pump). It fits without any modification in the OEM tank and retains all standard features (fuel level sensor, filtration and surge capabilities). It also features an integrated siphon venturi and a modern surge bucket, ensuring superior fuel delivery and slosh protection.

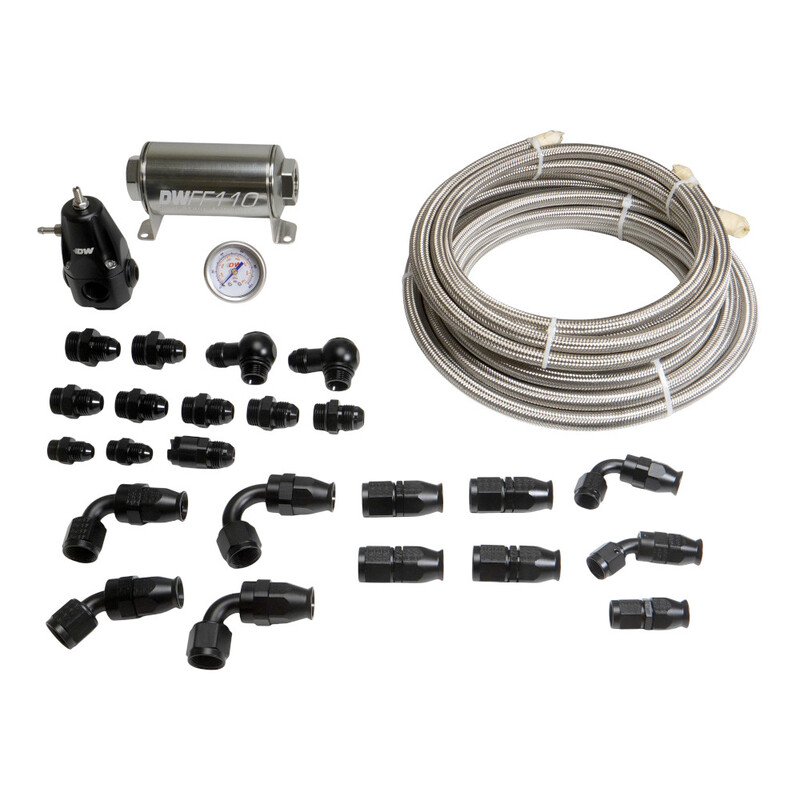

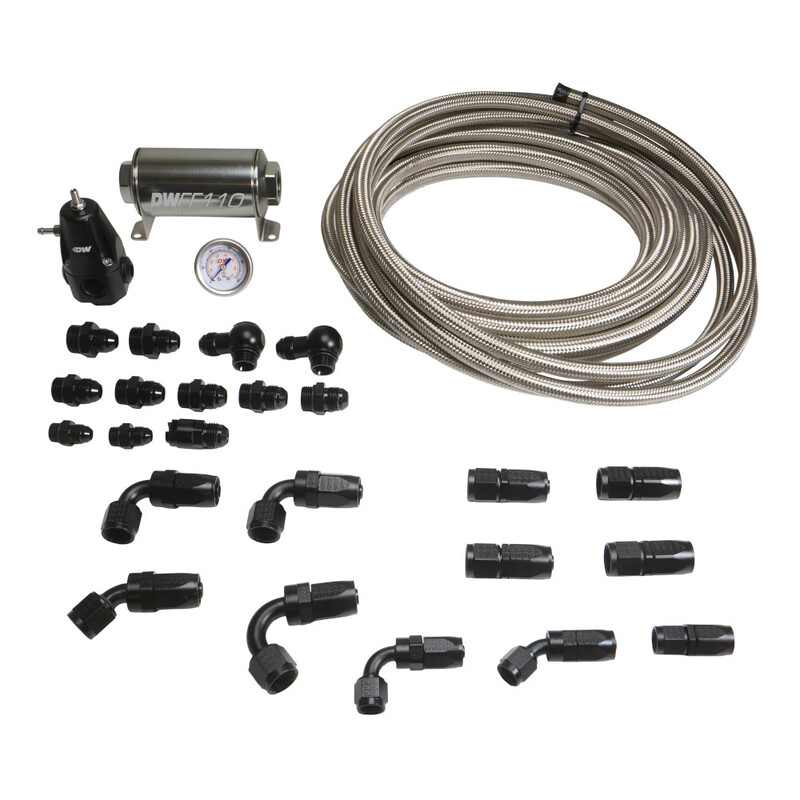

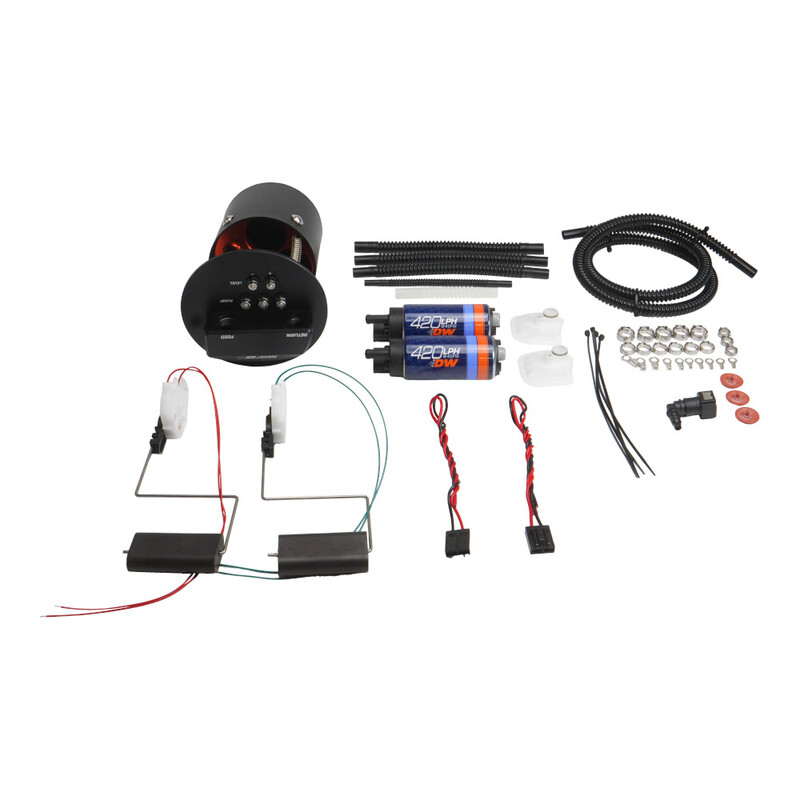

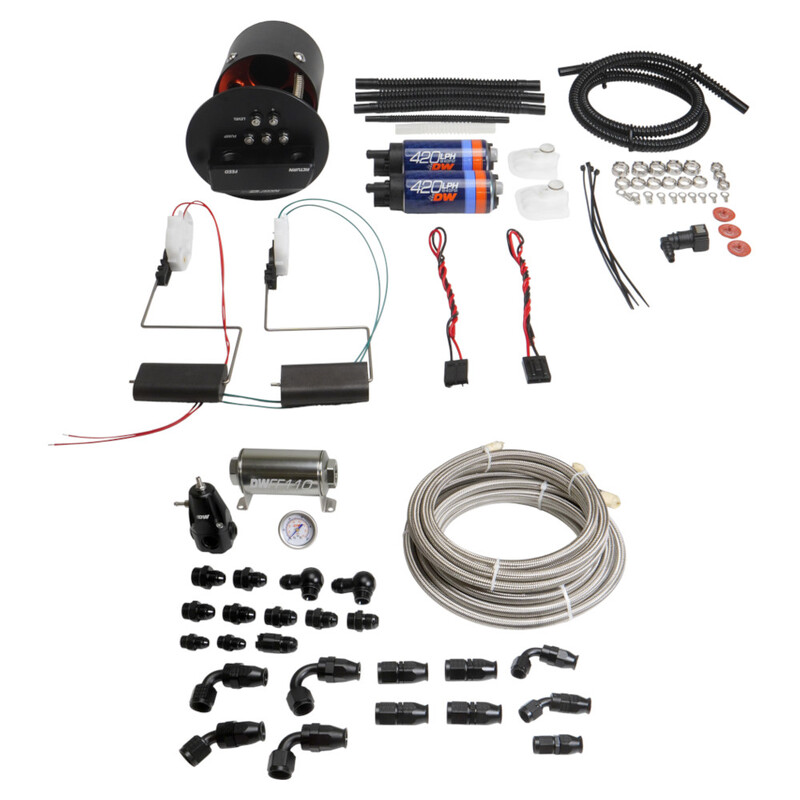

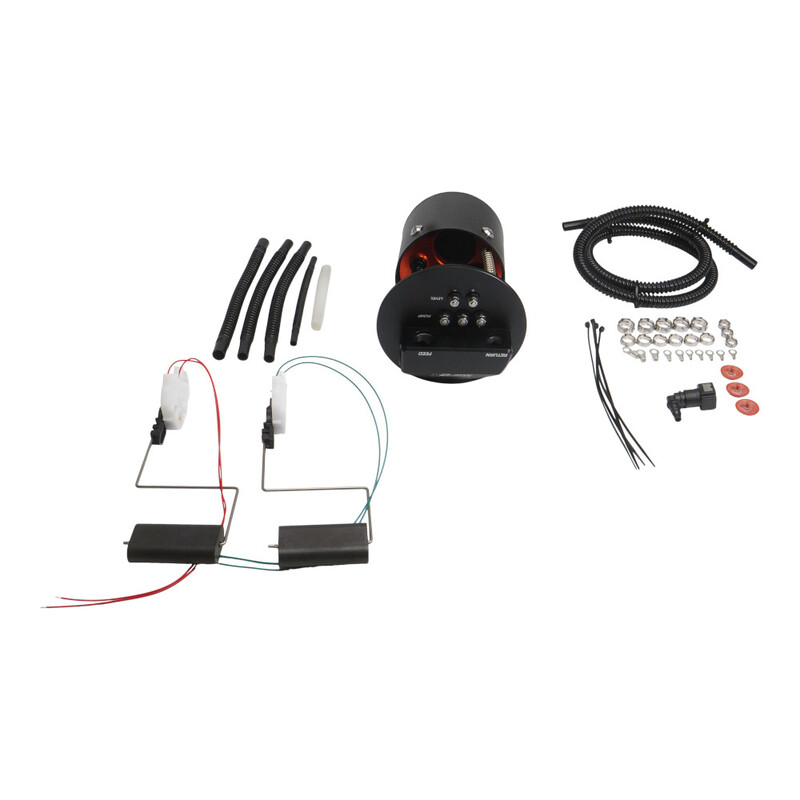

This module is sold alone or with two Deatschwerks DW420 fuel pumps. A return style plumbing system is required for the installation. A full fuel system kit is available that includes lines, fittings, pressure regulator with gauge, and fuel filter.

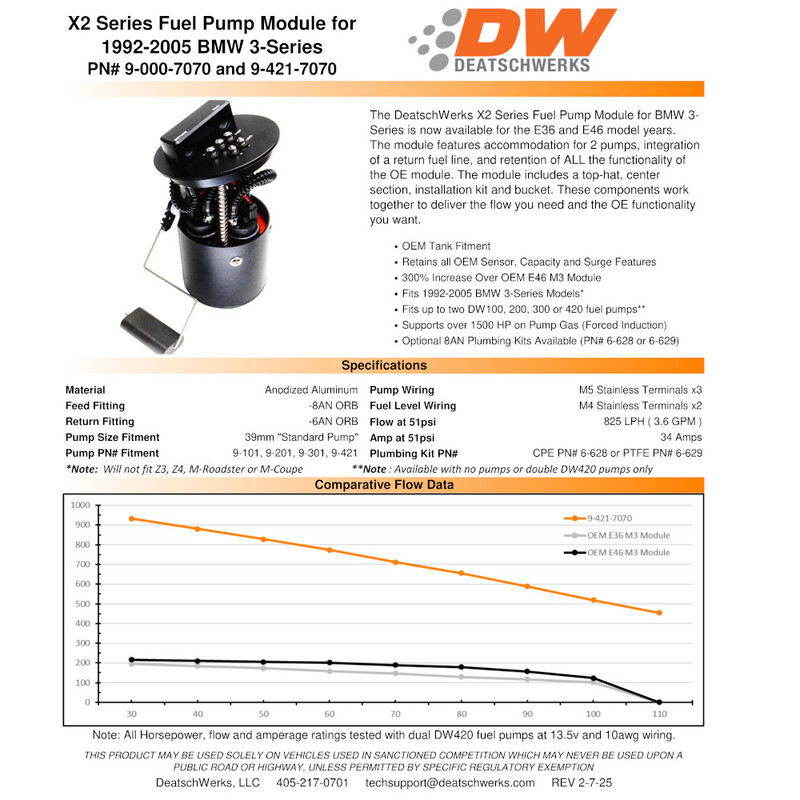

Technical Specifications
- Material: anodised aluminum
- Feed fitting: Dash 8 ORB
- Return fitting: Dash 6 ORB
- Pump fitment: Deatschwerks DW100, DW200, DW300, DW420 and other Ø39 mm pumps
- Pump wiring: M5 terminals x3
- Fuel pump wiring: M4 terminals x2
- Flow at 51 psi / 3.5 bars: 825 LPH (34 Amp)
To fit
- BMW 3 Series E36 (1992-2000)
- BMW 3 Series E46 (1998-2005)
Characteristics
| Car Make | BMW |
|---|
Since 2004, American company Deatschwerks have been specialising in fueling. Known for their injectors, fuel pumps and other accessories (filters, pressure regulators, hoses, fittings, injection rails, surge tanks...), Deatschwerks design and make all of their high quality products at their factory in Oklahoma.
