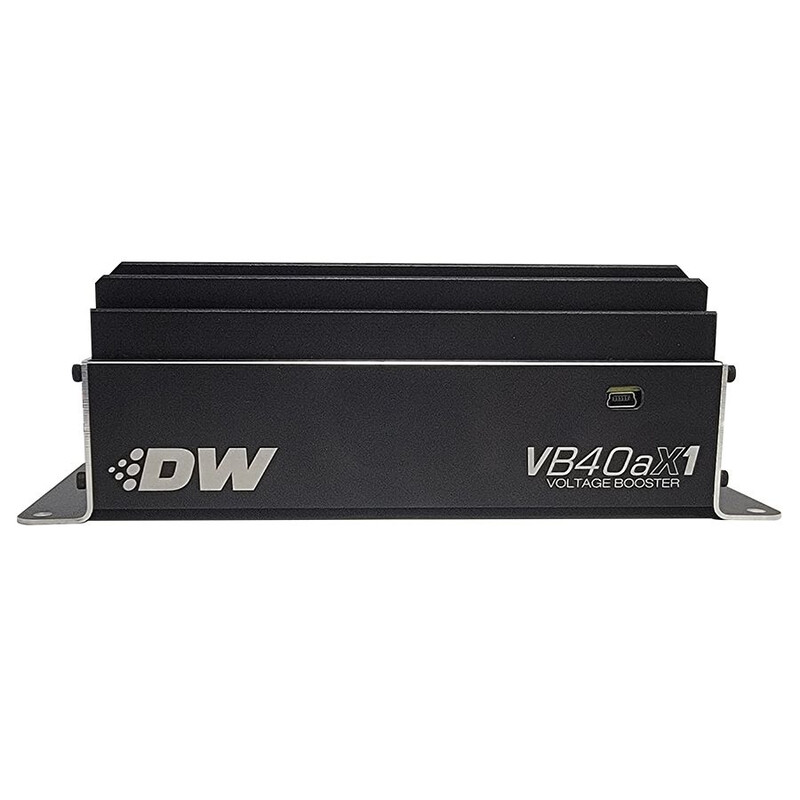

Deatschwerks VB40aX1 Single Pump Voltage Booster

Deatschwerks VB40aX1 Voltage Booster Specifications

This powerful Deatschwerks booster allows you to get more from your fuel pump by boosting from 12V up to 20V or 26V so that it delivers a higher volume of fuel. It is ideal, for example, if you do not have the possibility to install a pump with a higher output. This voltage booster is compatible with all types of in-tank, in-line, brushed or brushless pumps and can be installed in addition to a Deatschwerks brushless controller.

The booster has an aluminium case with integrated finned heat sinks and offers simple, accessible programming via roller wheel and OLED display. The ramp rate is adjustable to avoid fuel pressure spikes and user defined access code protection ensures maximum security.

This VB40aX1 model is designed to boost the voltage of a single fuel pump, unlike the VB40aX2 (also available) which is designed to support two pumps.

Technical Data

• Weight : 1120 g
• Housing materials : anodized aluminum
• Display materials : OLED screen
• Input voltage : 6.0 - 14.5 volts
• Output volt (Standard mode) : 14.5 - 20 volts
• Output volt (Brushless mode) : 14.5 - 26 volts
• Max current : 40 amps
• Voltage settings : 14.5, 18, 20, 22, 26 volts
• Ramp rates (sec) : auto, 1.5, 1.0, 0.5, instant
