Deatschwerks Universal X1 Single Fuel Pump Module
Deatschwerks UX1-Series Module
- Ideal for bringing an old fuel system up to current standards
- Adds a high-flow in-tank fuel pump solution
- Universal design compatible with tanks up to 50 cm deep
- Integrated surge bucket prevents fuel slosh and starvation
- Built-in venturi siphon system keeps the pump submerged in fuel
- Quiet, high-performance operation
- Dash 8 feed and Dash 6 return fittings
- Optional Dash 4 vent fitting
Ask a question about this productDeatschwerks Universal X1 Single Fuel Pump Module Specifications

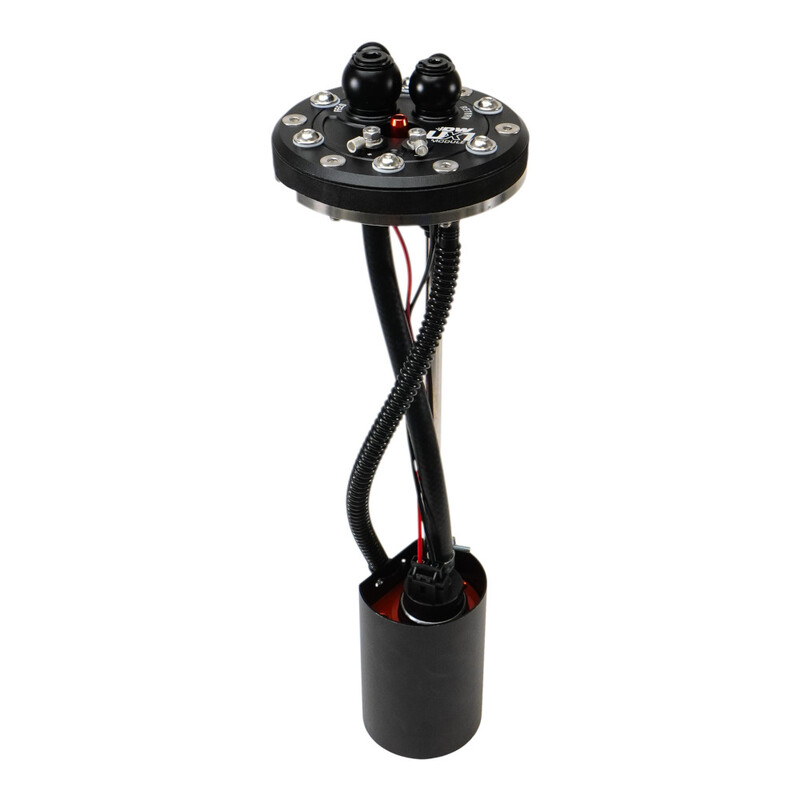

Manufactured by Deatschwerks, this Universal X1 module allows you to install a modern fuel system with a high-flow in-tank fuel pump in any type of vehicle originally equipped with another solution. Its cut-to-fit design is particularly suitable for custom-made or retrofitted fuel tanks (up to 50 cm deep).
This module features an integrated surge bucket that prevents fuel slosh and starvation, as well as a built-in venturi siphon system that keeps the pump submerged in fuel. Designed to accommodate a turbine-style fuel pump (DW200 255 lph, DW300 340 lph or DW400 415 lph pumps available as options), this module guarantees quiet and high performance operation, while one-way check valves maintain line pressure after engine shutoff.

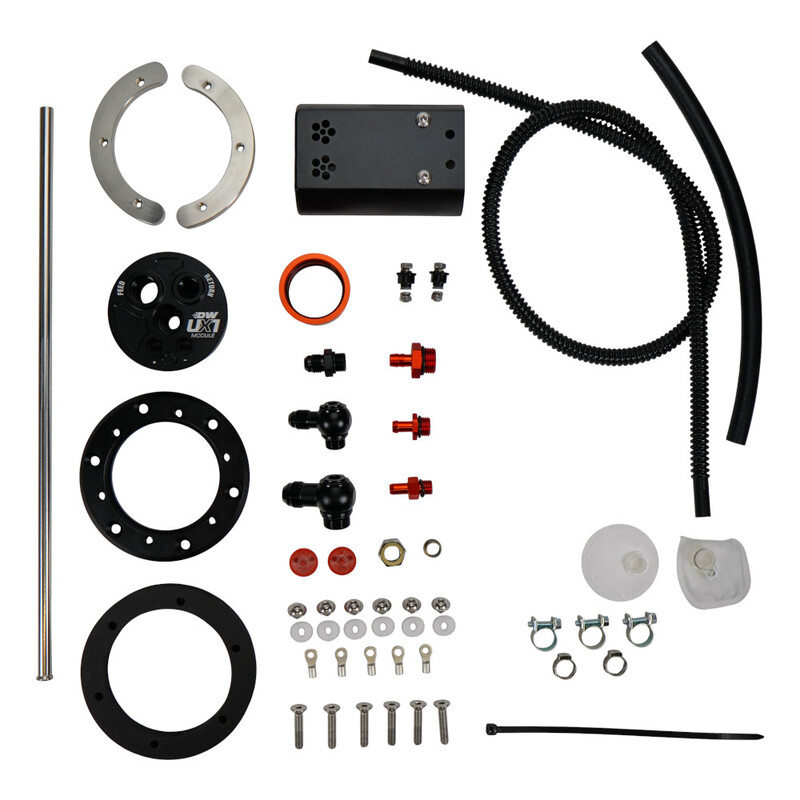

Flexible, this product includes low-profile swivel Dash 8 feed and Dash 6 return fittings, with an optional Dash 4 vent fitting. This universal module comes with everything you need for easy installation: gasket, support tube and hardware.
Since 2004, American company Deatschwerks have been specialising in fueling. Known for their injectors, fuel pumps and other accessories (filters, pressure regulators, hoses, fittings, injection rails, surge tanks...), Deatschwerks design and make all of their high quality products at their factory in Oklahoma.
