Deatschwerks DW340v 340 L/h E85 Fuel Pump for Volkswagen & Audi 1.8T 4WD

Deatschwerks DW340v 340 L/h E85 Fuel Pump

When modifying or rebuilding and engine, or for a simple FlexFuel conversion, the stock fuel pump is often insufficient and can't let fuel flow through quick enough. The consequences can be disastrous, in the worst case a broken engine (a lean air/fuel mix causing knocking).

The Deatschwerks DW340v fuel pump has been specially developed to fit OEM pump modules of Volkswagen and Audi vehicles powered by the highly popular 1.8T, 2.0 TSI and 2.0 TFSI. It flows 340 L/h at a pressure of 2.7 bar, 36% above the DW65v pump. Featuring a silent turbine impeller, carbon commutator and encapsulated armature, it is fully compatible with ethanol-based fuels.

Important : Due to the current draw of the pump's highperformance motor, it is not compatible with OEM fuel pump control modules. A hard-wire upgrade, return style fuel system or high-performance aftermarket control module is required for use.

Please note that a high flow fuel pump won't increase your vehicle's power. It allows you to replace your existing pump that may be worn or insufficient, and can withstand an increased fuel flow for engine upgrades with high boost pressure, bigger injectors, or other modifications.

Technical Specifications

• Components for a "plug & play" installation : see photo(s)
• Input diameter : 32 mm internal, 35.4 mm external
• Output diameter : 8 mm
• Voltage : 12 V
• Max pressure : 7 bars
• Max flow : 385 liters / hour
• Flow at 3 bars : 350 liters / hour
• Flow at 5 bars : 290 liters / hour

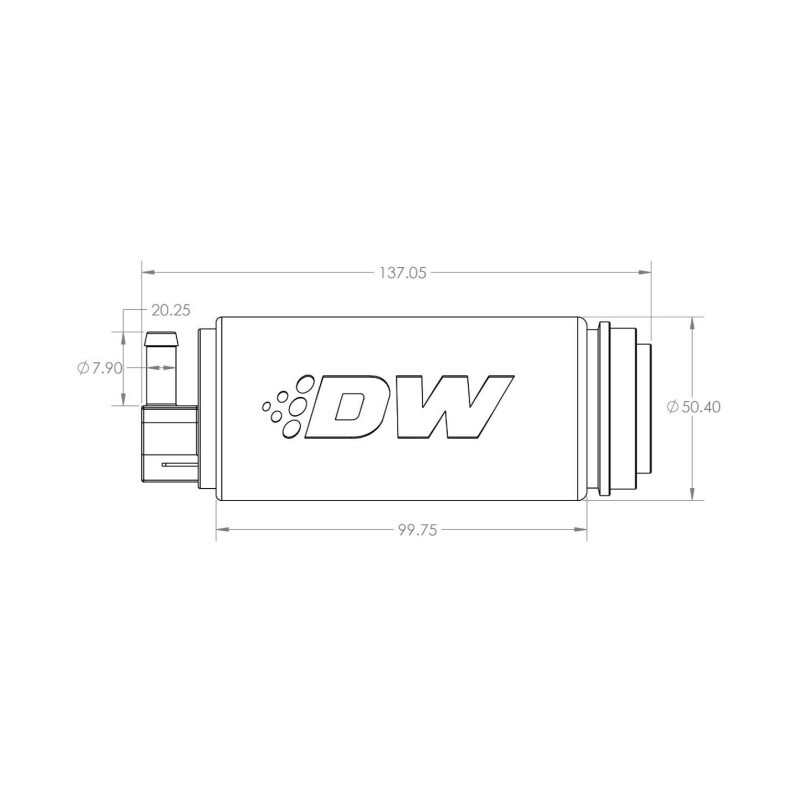

• Length : 137 mm
• Diameter : 50 mm
• Weight : 592 grams
• Need more technical data ? Check out the installation guides on Deatschwerks official website

DriftShop supplies these pumps straight from the manufacturer. These Deatschwerks pumps are 100% authentic with a 3 year manufacturer warrantee.
