D2 Circuit Coilovers for Toyota Corolla Altis E170 (13-18)

D2 Racing * generic picture
Some options are available below Please check them before adding to the cart

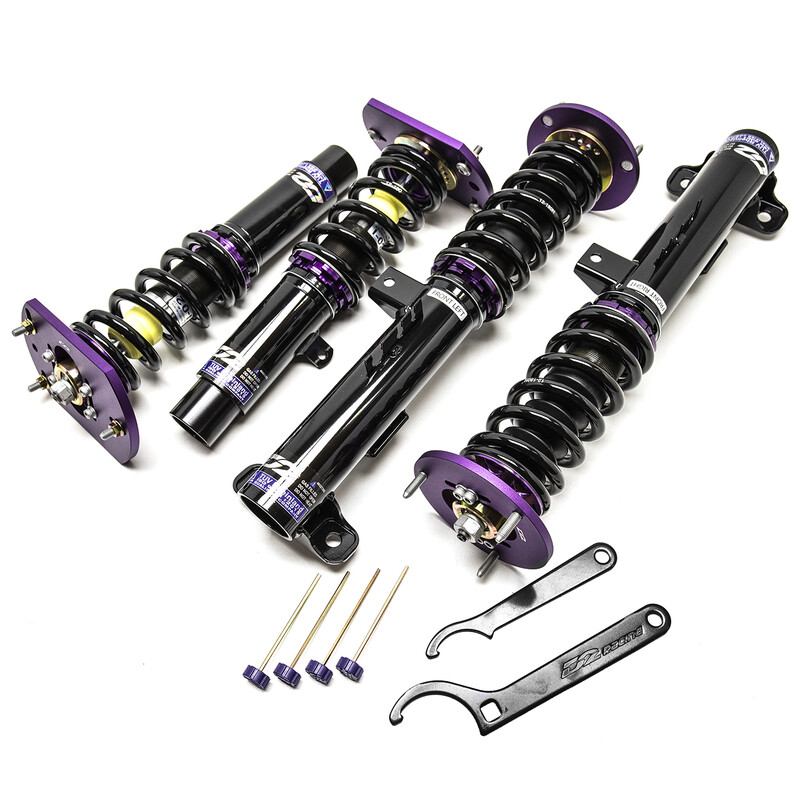

D2 Circuit Coilovers

  • Track specific coilovers, inherited from the competition
  • For Toyota Corolla Altis E170 (13-18)
  • 36-stage damping adjustable
  • Independent ride height and spring preload adjustment
  • Superior oil capacity, Ø44 mm pistons
  • OEM brake hoses brackets
  • Corrosion resistant aluminium construction
  • 1 year manufacturer warranty
  • TÜV and ISO-9001 approved
  • Your Coilovers

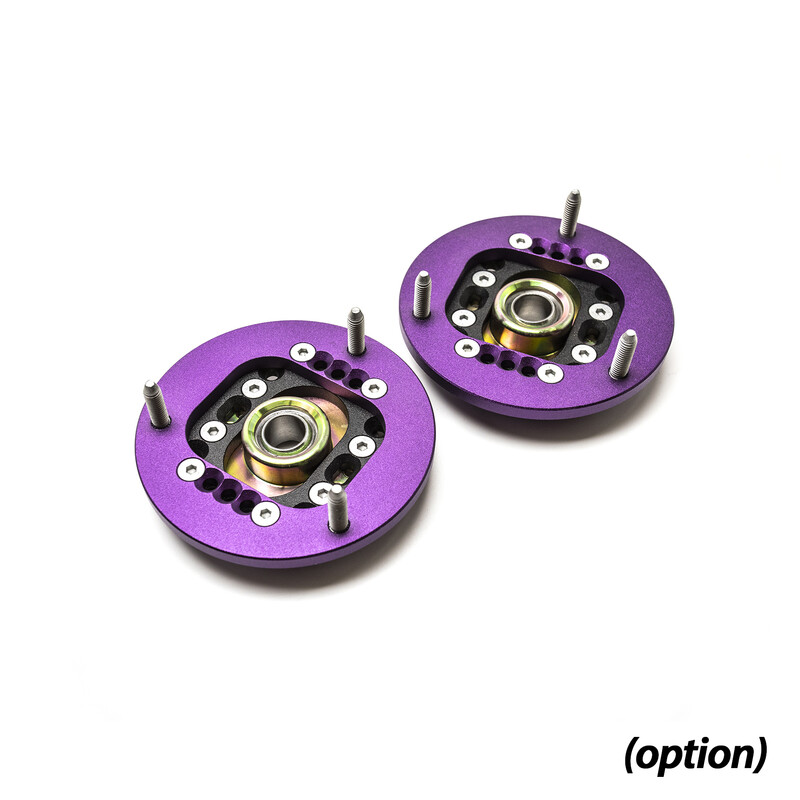

  • Optional 3D Top Mounts
€0.00

Coilover or Inboard Springs ?

This model of adjustable suspension offers you the choice between inboard springs (OEM style set-up), or coilover springs (spring around the shock absorber). Generally lighter and easier to adjust, coilover springs are recommended for tuned vehicles, equipped with a roll cage or used in motorsport. For a standard vehicle used on the open road, D2 recommends keeping the inboard springs setup. Note that between a coilover assembly or a separate assembly, the spring rates can be different : this is a difference in technical design due to the shape of the springs, the design of the vehicle's axles, or even the position of the original springs on the chassis. In feel and use, the separate and coilover models are identical, and show no significant difference in driving performance or comfort.

Coilovers : Rear Coilover or Separate Springs ?

D2 Circuit Coilovers Specifications

D2 has a 30-year experience in motorsport and shares this experience with you by offering coilover suspension kits specifically designed for the track. With their superior oil capacity thanks to a large diameter piston (44 mm), these dampers guarantee consistent performance, even over long track sessions or endurance races. With a wide range of adjustment and independent height and preload adjustment, they give full damper control regardless of ride height. Front camber can be adjusted via the top mounts (McPherson struts only).

Using monotube dampers, D2 Racing coilovers offer a lowering range of up to 10-12 cm (depending on the model), while being corrosion resistant thanks to their aluminium construction. Damping is 36-stage adjustable, providing a soft or firm ride, whichever is required. Often lighter than OEM units, D2 coilovers also help reduce weight.

All D2 products are TÜV and ISO-9001 approved and benefit from a one-year manufacturer warranty. For your specific needs, it is possible to modify spring rates; D2 France always keeps a large choice of spare parts in stock, to facilitate maintenance and repair of your suspensions, without delaying other projects. Please contact us for more information.

Characteristics

Car Make Toyota
Car Model Toyota Corolla
Car Version Toyota Corolla Altis E170 (13-18)
Chassis Code(s) / Type E170
Range D2 Circuit
Front Top Mounts P (pillowball, camber adjustable) or PP (3D pillowball, camber and caster adjustable)
Rear Top Mounts No top mounts (use OEM)
Front Springs 14 kgF/mm
Rear Springs 12 kgF/mm

With more than 5000 possible coilover and big brake kits, today D2 Racing are one of the leaders in performance parts for vehicles both used on the road and on the track.
