Cybul Mazda MX-5 NA & NB Angle Lock Kit

Cybul Angle Lock Kit for Mazda MX-5 NA & NB Specifications

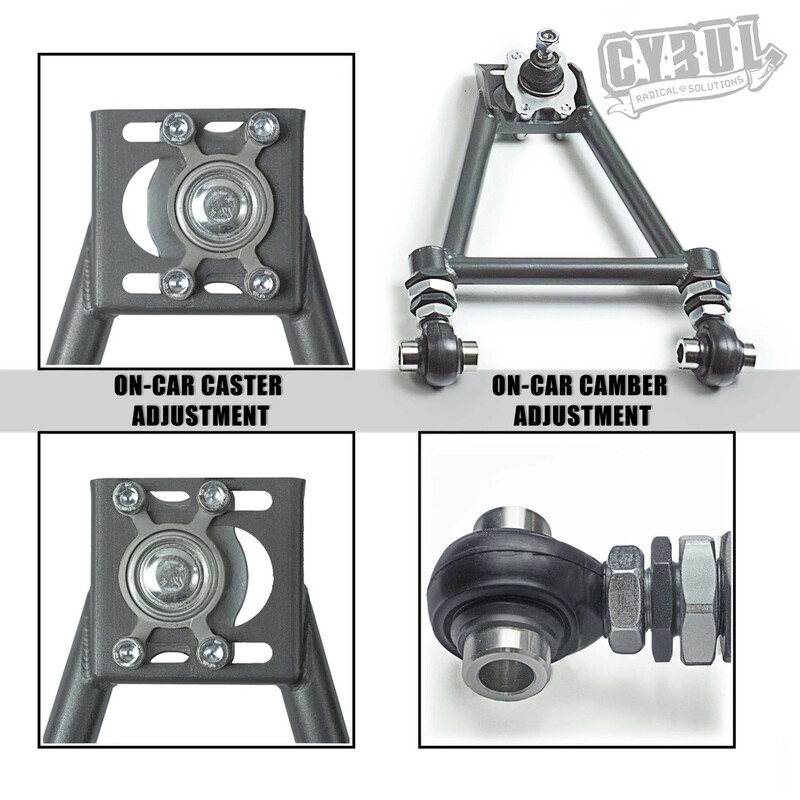

Ideal for drifting, this Cybul suspension kit for Mazda MX-5 NA and NB greatly increases steering angle, fine-tunes geometry and improves handling. Rigorously engineered, it offers up to 65° of max steering angle and the possibility of adjusting the caster and camber angle directly on the car, without having to remove the arms.

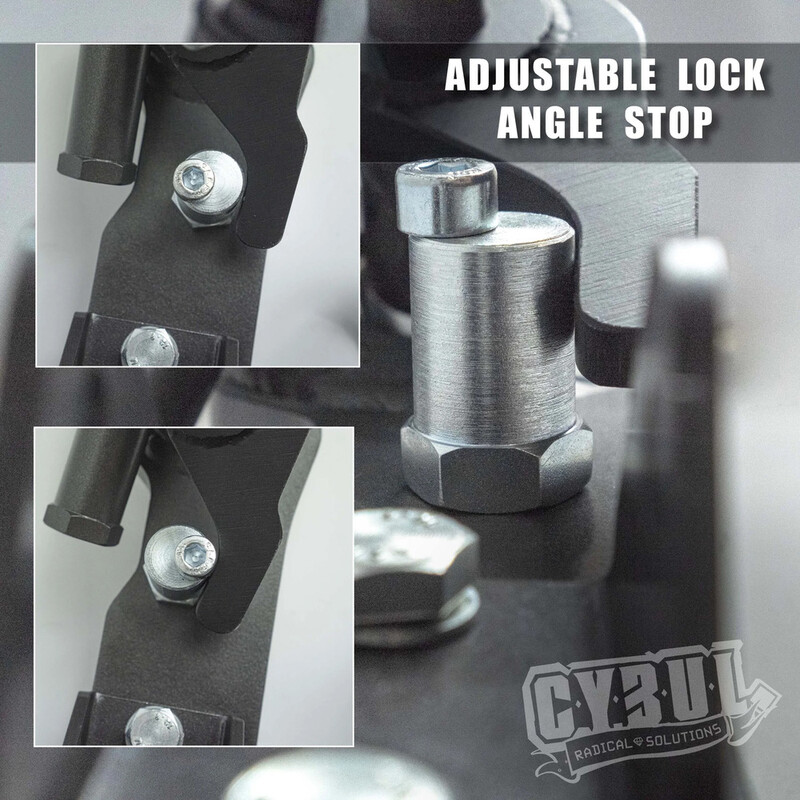

This kit also enables the vehicle's track width to be altered via the rod ends of the lower control arms and the alignment to be corrected using the upper control arms. Adjustable steering angle limiters are integrated into the upper arms, allowing fine adjustment to suit the characteristics of the wheels and tyres. In addition, steering tie rods and knuckle adapters completely eliminate the Ackermann effect and bump steer, for improved handling and stability.

The result of a highly sophisticated manufacturing process, the kit benefits from a development based on a 3D CAD software, and uses ultra-light 4130 chromium-molybdenum tubing for the upper control arms, with mounting brackets precision-cut from CNC-machined high-strength steel for added strength and durability. Proven on the racetrack, the kit is made entirely in Europe and has been designed to withstand the rigours of competition use.

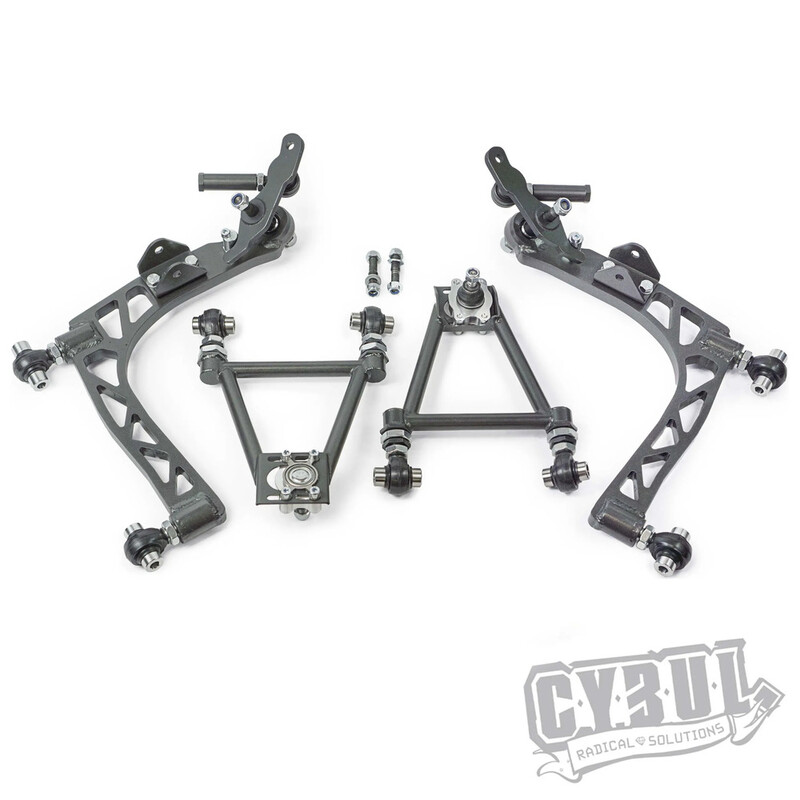

Kit Contents

• 2 upper control arms made of 4130 chromium-molybdenum tubes

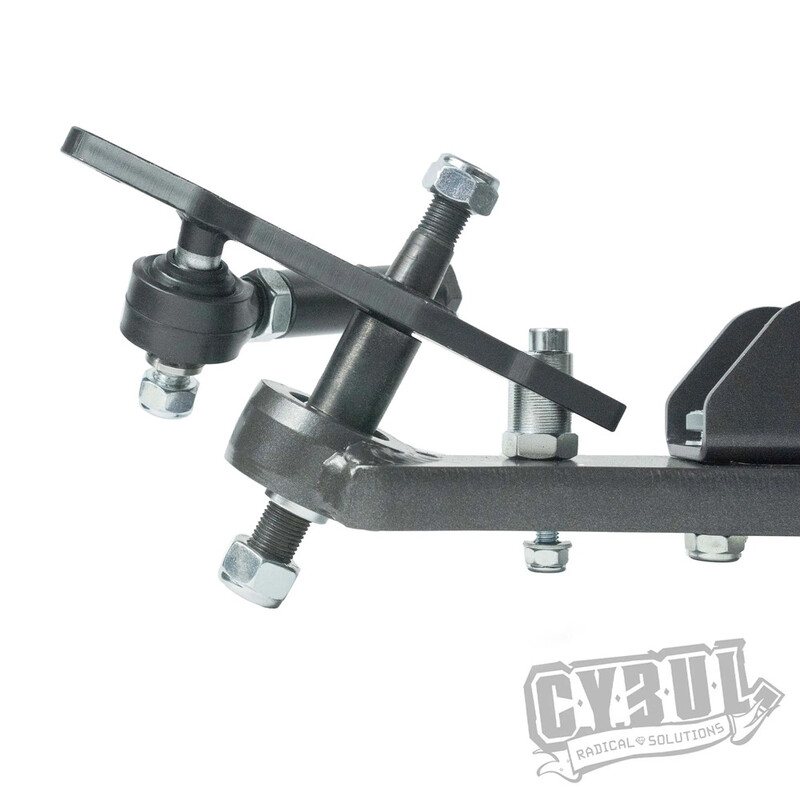

• 2 knuckle adapters with Ackermann angle and bump steer correction
• 2 lower control arms
• Steering tie rods with rod ends and rubber covers
• 2 pivots for upper control arms with aluminum housings
• 4 threaded sleeves for on-car camber adjustment for upper control arms
• 8 rod ends with rubber covers and reduction sleeves for control arms
• 2 spherical bearings for lower control arms
• 4 inserts for knuckles
• Adjustable steering angle limiters
• Bolts, nuts and washers for assembly
