Cybul Frame Rails + X-Brace Kit for Mazda MX-5 NA & NB

Cybul Frame Reinforcement Kit for Mazda MX-5 NA & NB

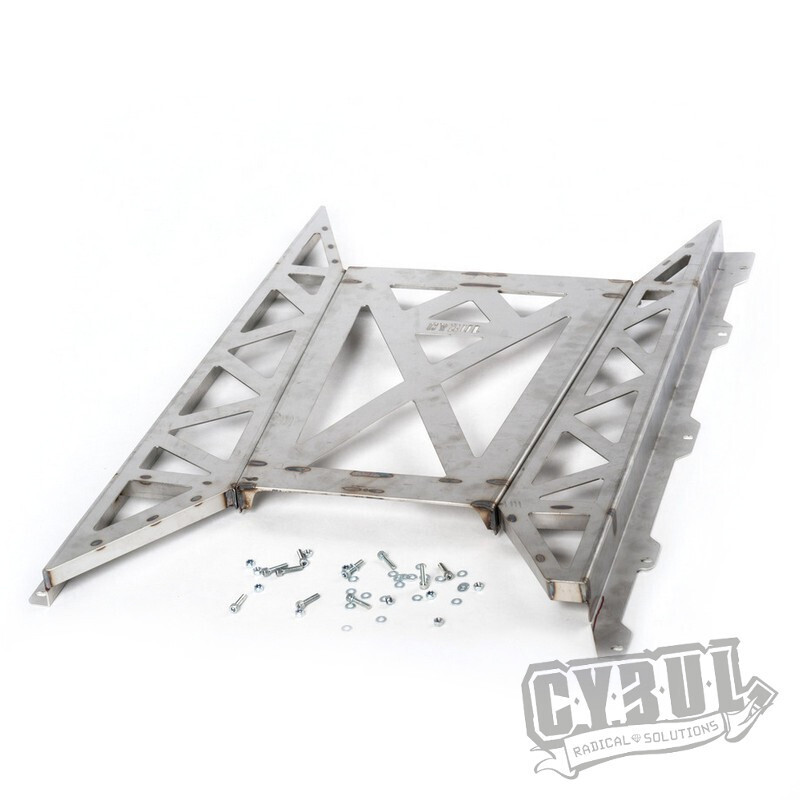

This Cybul chassis reinforcement kit includes a choice of X brace and/or two longitudinal rails specially designed for the Mazda MX-5 NA and NB.

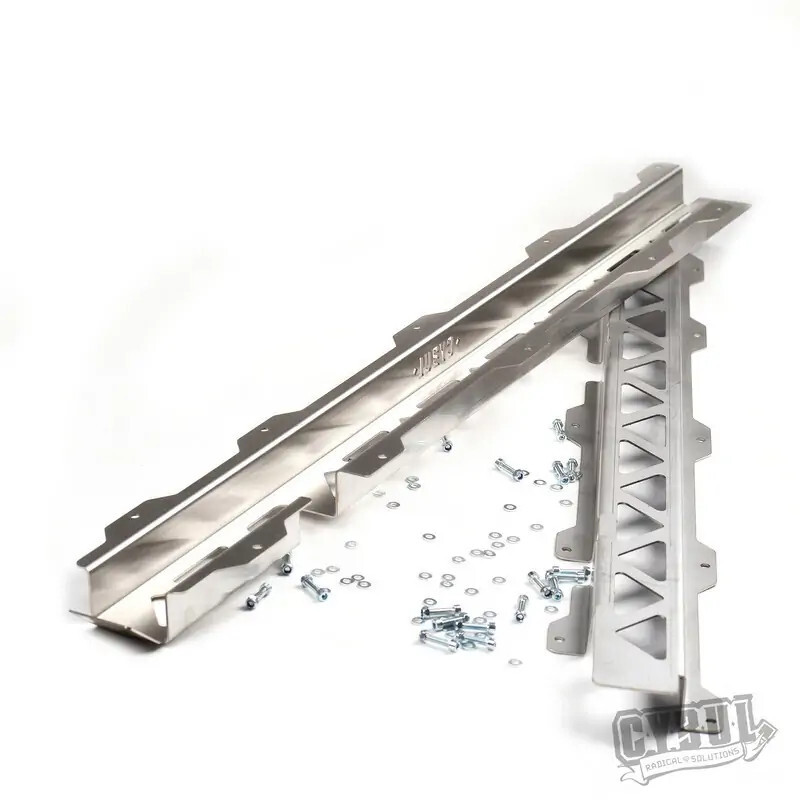

The rails can be fitted on their own under the car, but they are necessary/complementary to the installation of the transmission tunnel brace.

The two rails significantly increase the body stiffness and protect the longitudinal members from impacts (speed bumps, etc.), resulting in improved handling. To install them, holes need to be drilled and treated with anti-corrosion paint.

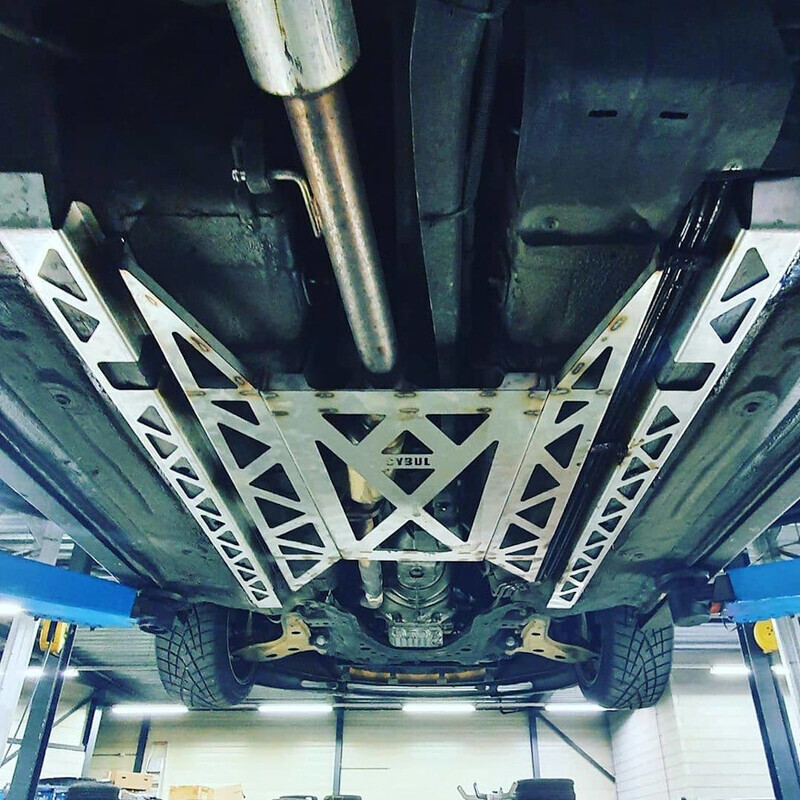

Combined with the two rails, the tunnel reinforcement part forms a butterfly brace that reduces chassis flex and protects the most fragile area of the roadster. As a result, the suspension can work more efficiently, the steering is much more responsive and feedback from the road is improved.

These parts are made from ultra-rigid stainless steel, laser cut and CNC bent. They are supplied with the necessary bolts and nuts.
