CNC71 Steering Lock Pro Kit for Nissan 350Z

€1,889.99
€2,099.99
Dispatched under 10 to 15 days, as of Monday, March 3, 2025

CNC71 Steering Lock Pro Kit Z33

  • To suit Nissan 350Z
  • Increases steering angle by up to 68°
  • Ackermann reduction and adjustment
  • Lifted roll centre
  • Quick and easy adjustments
  • Materials : high quality steel & aluminium
  • Complies with drifting series regulations
  • Made in Europe

CNC71 Steering Lock Pro Kit for Nissan 350Z Specifications

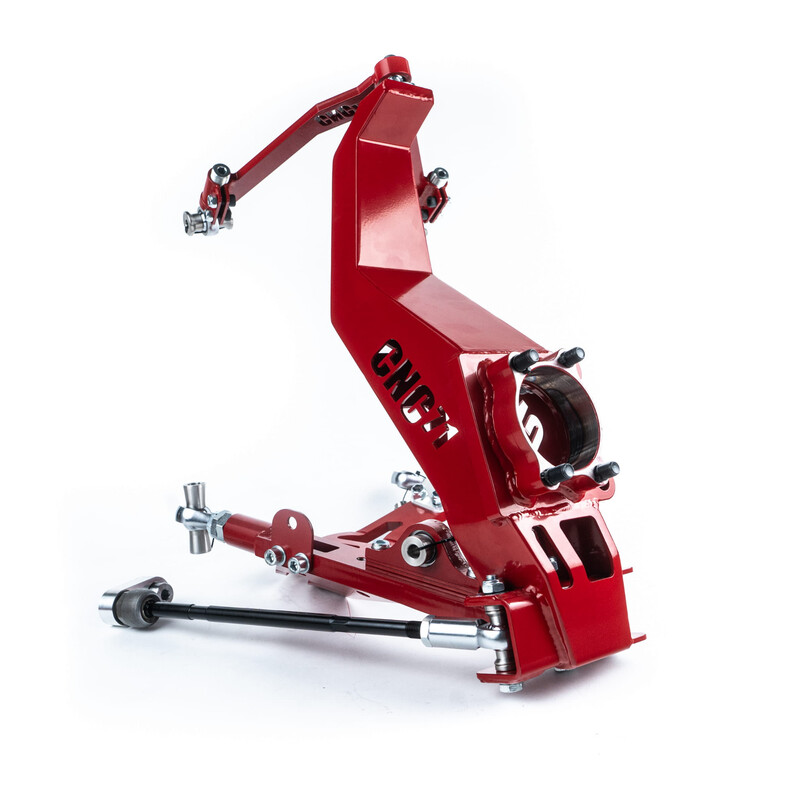

Offered by CNC71, this front suspension kit for the Nissan 350Z makes it possible to significantly increase the vehicle's steering angle, modify the characteristics of the Ackermann steering geometry and make adjustments quickly, without the need to remove previously installed parts. Developed to be "plug & play", it fits directly into the car's factory suspension mounting points, without any modifications.

Compliant with drifting series regulations, this kit is made from high-quality steel and aluminium, and machined on high-precision CNC machines. Each part is protected by powder coating or zinc galvanizing. The use of spherical bearings eliminates the need for rubber bushings, ensuring better steering feel and more precise response on the track.

The kit offers a 68-degree steering angle, with the ability to quickly adjust the Ackermann geometry, which ranges from positive to negative, by applying special washers. This makes it possible to quickly adjust the car's driving characteristics to suit the tracks conditions and the driver's preferences. This package also includes a steering limiter that is easy to set up thanks to asymmetrical bushes.

The kit also raises the car's roll centre, reducing the tendency to roll when cornering. It allows the wheels to be adjusted so as to minimise the car's deviation from the racing line during cornering and sharp steering input. This is the key to keeping the front wheels gripped to the asphalt and effectively predicting the vehicle's drifting behaviour.

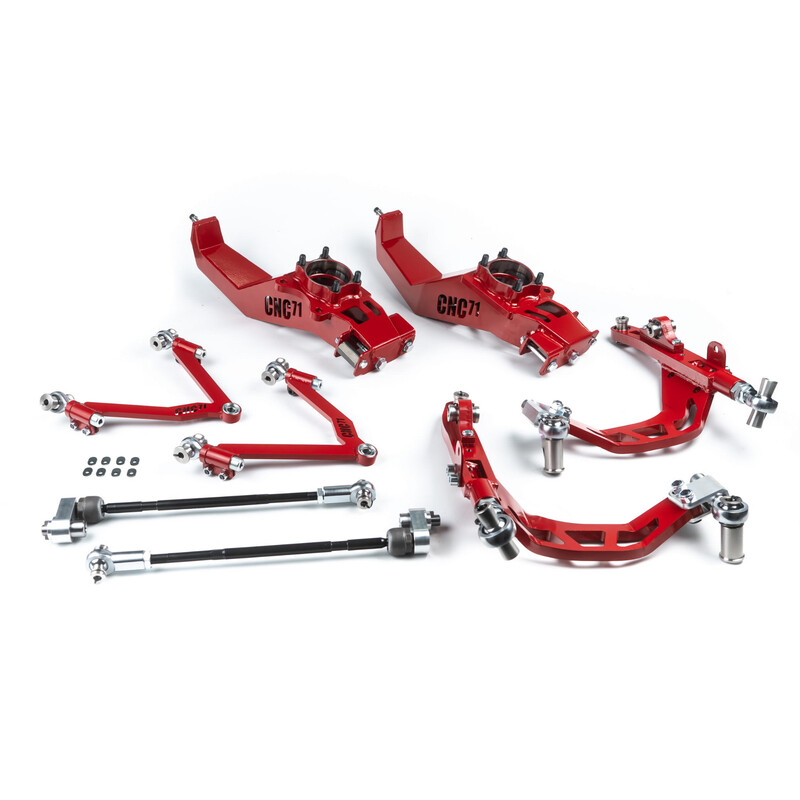

Kit contents :

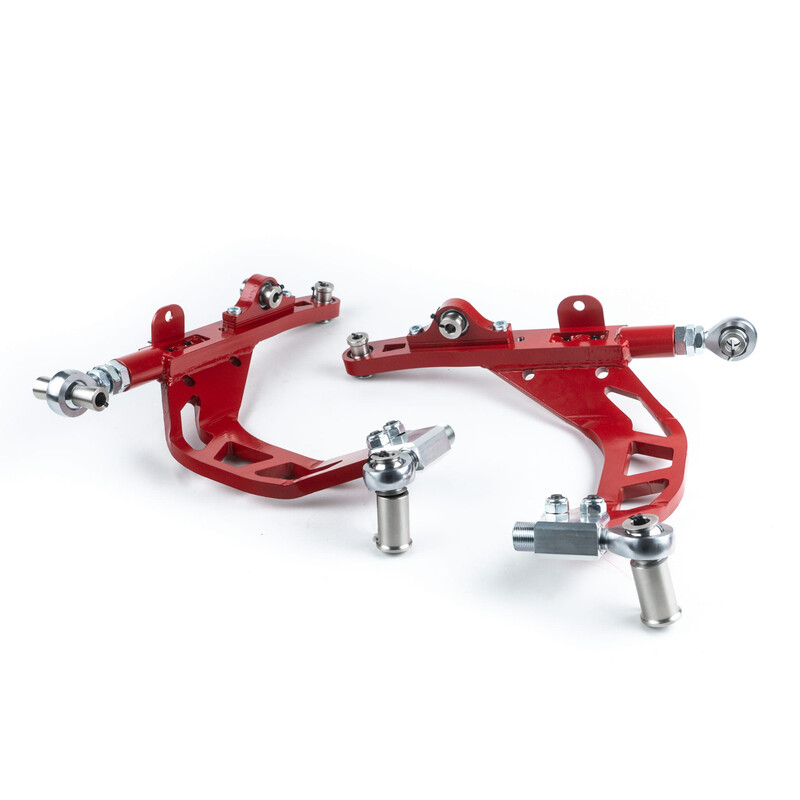

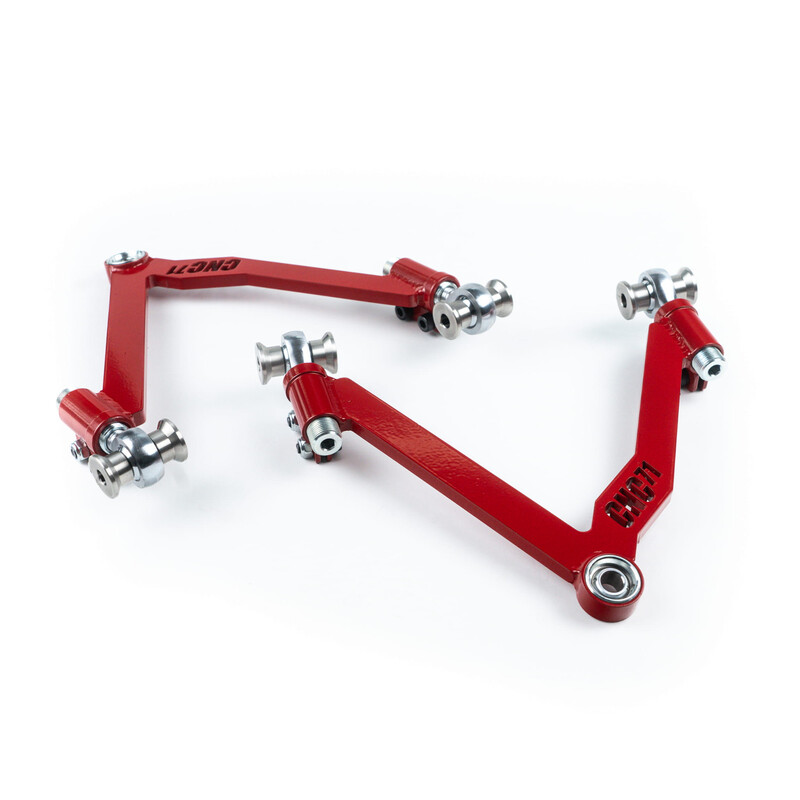

  • Upper and lower control arms

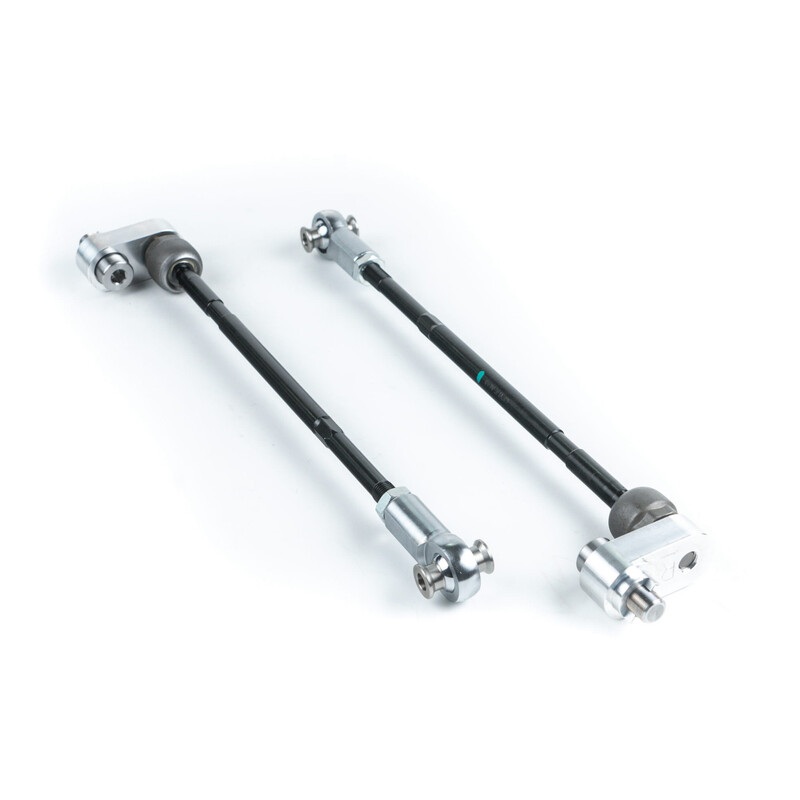

  • Tie rod relocators

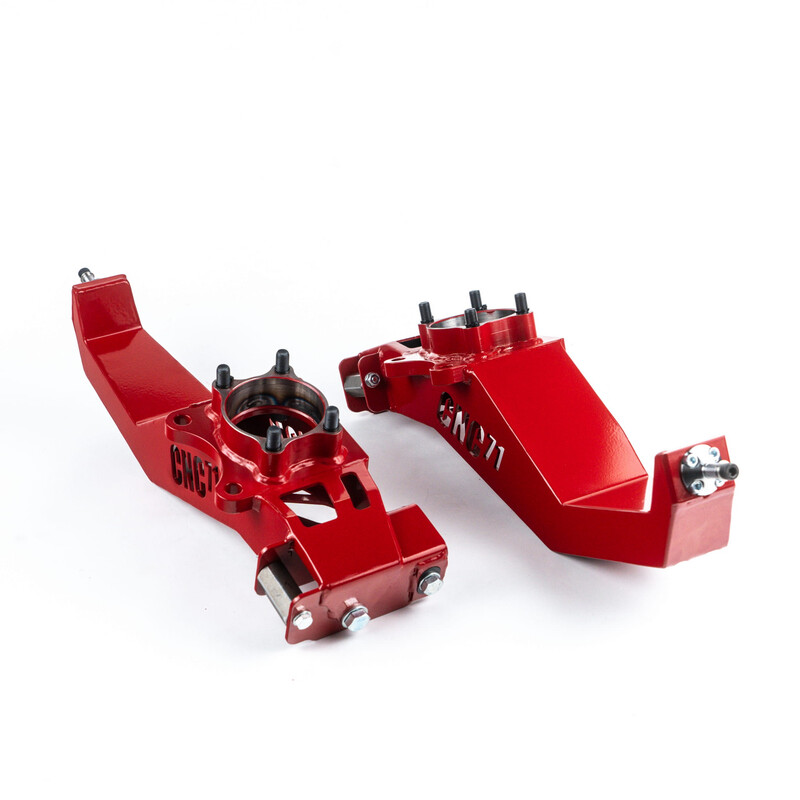

  • Steering knuckles
  • Accessories required for installation
  • Installation instruction manual

Manufacturer's recommendations :

  • The kit fits wheel sizes ranging from 17" to 19", under the condition that the inner diameter of the rim isn’t smaller than 400 mm.
  • The kit allocates the necessary space for mounting coilovers, which are necessary for the correct operation of the kit.
  • Based on the Ackermann angle measurements, it is possible to adjust the following outlined alignment value: -5° camber angle (from -4 to -6.5) and 5.1° caster angle (from 4 to 6).

Characteristics

Car Make Nissan
Car Model Nissan 350Z
Manufacturer CNC71
CNC71 is a Polish company specialising in CNC turning and milling. Comprising a team of talented technicians and mechanical engineers, it offers bespoke performance parts for rallying, circuit racing and drifting. CNC71 also has extensive expertise in metal welding, computer-aided design and manufacture, and 3D printing.
